Summary of Contents for Hills S51721

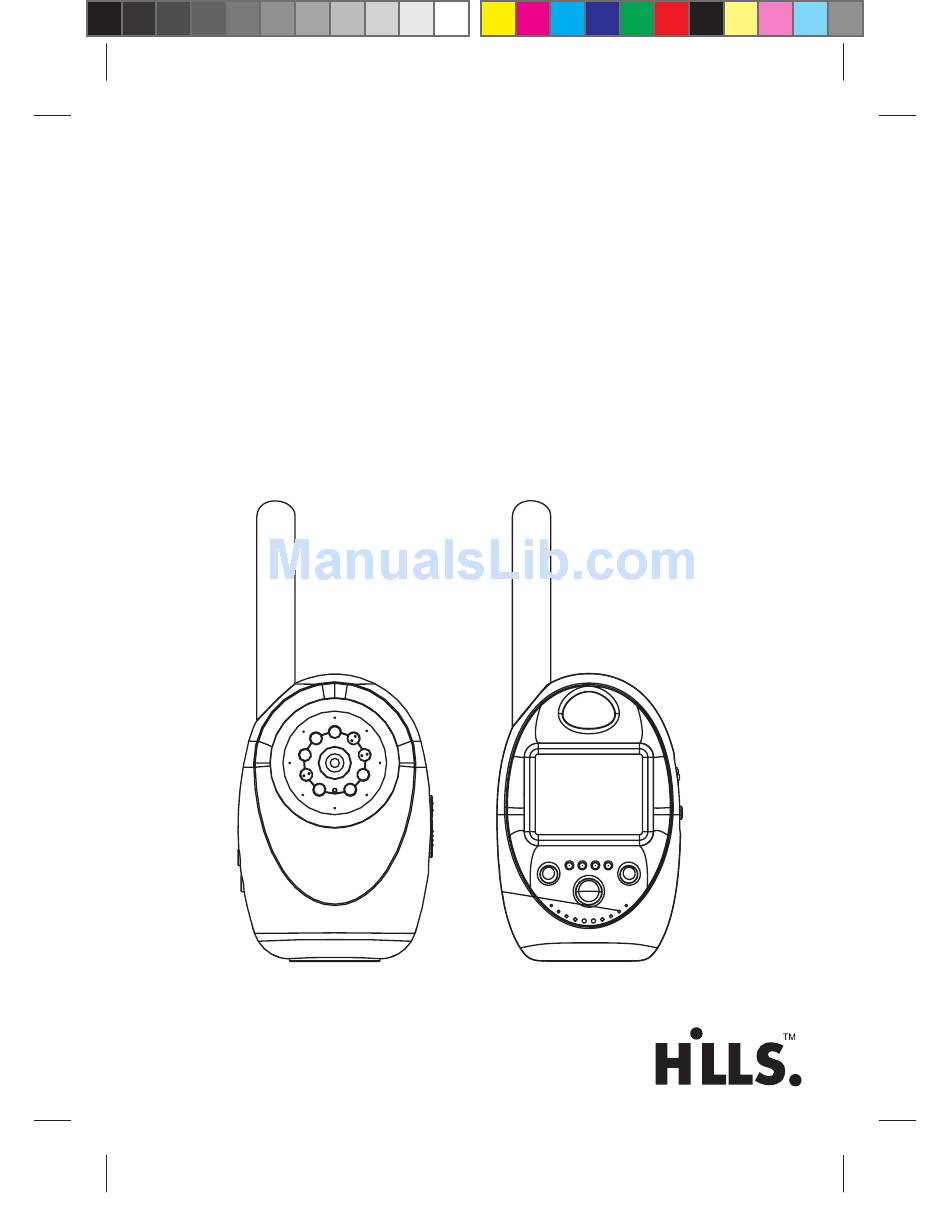

- Page 1 Wireless baby video monitor with audio User guide TE0166_Child_Video_Monitor_Audio_Prod_Manual_PM1009a.indd 1 10/02/2015 12:03 pm...
- Page 2 Unit overview Unit overview Structur Package contents Structure Diagram Installation Specifications Troubleshooting Warnings Warranty Package contents 1 x 2.4GHz Wireless Camera 1 x 2.4GHz Wireless Receiver 1 x Earphone 2 x Power Adapter TE0166_Child_Video_Monitor_Audio_Prod_Manual_PM1009a.indd 2 10/02/2015 12:03 pm...
- Page 3 Unit overview Structure Antenna Infrared Alarm LED’s Switch Lens Power Learning on/off Switch Channel Battery Power Switch Cover Jack Antenna Volume control Power on/off Volume Indicator Alarm off button Earphone Jack Power Jack Channel button Speaker Sleep button TE0166_Child_Video_Monitor_Audio_Prod_Manual_PM1009a.indd 3 10/02/2015 12:03 pm...
-
Page 4: Diagram
Unit overview Diagram Camera Camera adapter Receiver Notes: Receiver adapter *This cam work on load four their app of the ca *If the cam for an ex disconne and remo been ins TE0166_Child_Video_Monitor_Audio_Prod_Manual_PM1009a.indd 4 10/02/2015 12:03 pm... -
Page 5: Installation
Installation 1 Place the camera on a firm, stable surface. 2 Connect the provided power adaptors to the camera and receiver, then slide the power switch on both the camera and receiver to the ON position. Notes: *This camera/receiver can also work on battery power. - Page 6 Installation Channel synchronisation Channel synchronisation will be preset upon first time use. Please follow the instructions below to change channels. (i) Slide the channel button on the side of the camera to a desired channel. (ii) Press and hold the Alarm off button on the receiver until the volume indicator flashes.
- Page 7 Installation 4. The rounded head of the camera is rotatable by 30 degrees for convenience. You may manually 30° adjust the viewing angle at any time. 30° 5. You may adjust the volume to your desired level by rotating the dial on the side of the receiver.
- Page 8 Installation Moving the Alarm switch to the Camera alert setup and OFF position: sleep mode The sound detection alarm function Move the Alarm switch to the may be disabled at any time by moving VOX position: the alarm switch at the back of the Turn on the sound detection warning camera to the OFF position.
- Page 9 Specifications Items Speci cations Transmission Frequency ISM 2,400~2,483 MHz Transmission Power 16dBm Unobstructed Effective Range 300m Modulation Mode GFSK Imaging Sensor Type CMOS Effective Pixels 640×480 Minimum Illumination 0Lux (IR ON) Night Vision Distance Battery working time Motion Alarm Distance View Angle 60 degree Power Supply...
-
Page 10: Troubleshooting
Troubleshooting Hills Limi gives a w Problem Solution on this pr proof of p Check camera/receiver is connected For the c No Image and sound to the power supply and powered on please vis or contac Check that the channel of the... -
Page 11: Warranty
Warranty Hills Limited (ACN 007 573 417) Our goods come with guarantees gives a warranty of 12 months that cannot be excluded under the on this product and is subject to Australian Consumer Law. You are proof of purchase. entitled to a replacement or refund for... - Page 12 Hills Limited A.B.N. 35 007 573 417 Issue February 2015 PM1009a TE0166_Child_Video_Monitor_Audio_Prod_Manual_PM1009a.indd 12 10/02/2015 12:03 pm...
