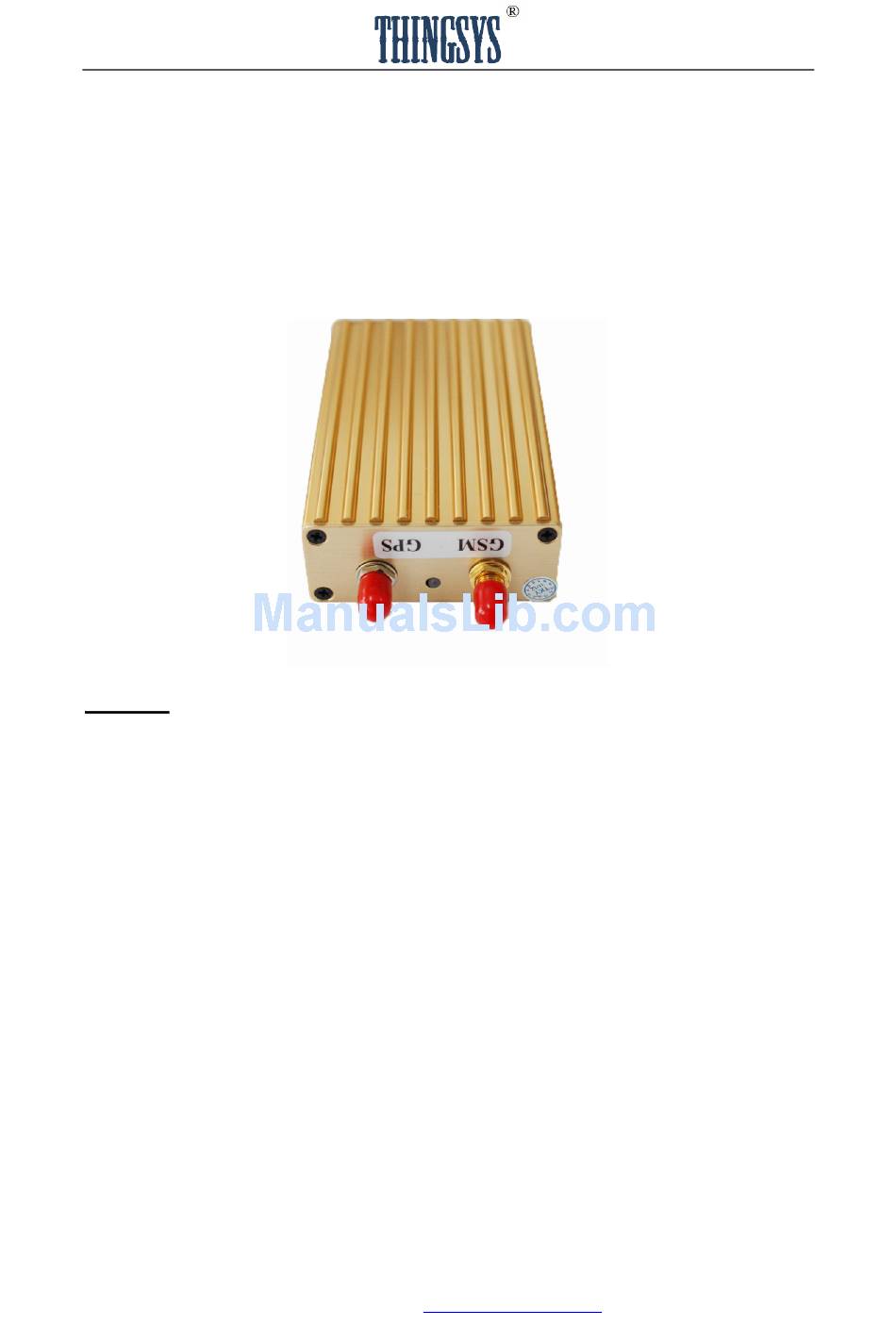

User Manual
Preface
Thank you for purchasing our products. This deliberately edited manual is to
introduce the tracker with the complete technical data and the instructions showing
how to operate the device smoothly and correctly. Make sure to read this manual
carefully before using this product. Most problems could be solved through the
explanations and the troubleshooting tips. Once you finish reading it, keep it handy
for necessary reference. Please note that specification and information are subject to
changes without prior notice in this manual. Any change will be integrated in the
latest release. The manufacturer assumes no responsibility for any errors or omissions
in this document.
Ⅰ. Preface................................................... 1
Ⅱ. Attentions............................................... 3
1 / 11
TS-V1
Vehicle Tracker
Content
Copyrights © 2012
Shenzhen Thingsys Co., Ltd
All Rights Reserved
Advertisement
Summary of Contents for Thingsys TS-V1
-
Page 1: User Manual
Any change will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or omissions in this document. Content Ⅰ. Preface…………………………………………... 1 Ⅱ. Attentions……………………………………….. 3 1 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved... - Page 2 Ⅲ Hardware description…..…………………….…3 Ⅳ. Main function……………………………….….. 4 Ⅴ. Set up………………………………………...….. 4 Ⅵ. Installation…………………………………...……7 Ⅶ. Application.……………………………….….…...9 Ⅷ. Specification…………………………………….…9 2 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved...
- Page 3 7. To avoid electromagnetic interference or uncompatible configuration, please stop using your tracker in the noticed place. GPS Vehicle Tracker 3 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved...
-
Page 4: Main Functions
2. Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed unit will send out alarm to the authorized numbers. 4 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved... - Page 5 For example: Send SMS “Password123456 138138”. "password" as instruction, "123456"as old password, "138138" as new password. Password must be six digits. Tracker’s initial password is 123456. 5 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved...
- Page 6 “move ok!” .In case of such a movement, it will send SMS “Move” along with a Geo-info to the number. For example, send SMS “Move123456” to the unit. "Move" as instructions, “123456”as password. 6 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved...
- Page 7 Access Point Name (APN). If you don’t know the APN, you can consult local network service supplier. The format of set APN is “APN + password +space + apn 7 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved...
-
Page 8: Gps Vehicle Tracker Installation
Installation steps (caution: the following installation should under no power, otherwise will be dangerous) 1.Power supply line: The red wire connects 12V“+”;Black wire connects to “-” 8 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved... - Page 9 White wire connects relay pin 86; 85 pin to 12 V DC, 87a pin and 30 pin are in series power supply circuits. Caution: Wrong connection of yellow wire will damage the tracker. 9 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved...
- Page 10 5. Shipping Cargoes Tracking ◆Specs. Content Specs. Dim. 87 * 64 * 26 (mm) Weight 495g Network GSM/GPRS/GPS Band 900/1800/1900MHz or 850/900/1800/1900MHz GPS chip SiRF III chip 10 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved...
- Page 11 Li-ion battery 3.7V / 1.2Ah Standby work current < 30mA Storage Temp. -40° C to +85° C Operation Temp. -20° C to +70° C Humidity 5%--95% non-condensing 11 / 11 Copyrights © 2012 Shenzhen Thingsys Co., Ltd All Rights Reserved...
