SHENZHEN BENWAY TECHNOLOGY CO., LTD
TEL：+86 755-22652506
WEB：www.szbenway.com
MODEL：BW08 GPS VEHICLE TRACKER
GPS Vehicle tracker
(GPS+GSM+SMS/GPRS)
User Manual
(Version 2.1)

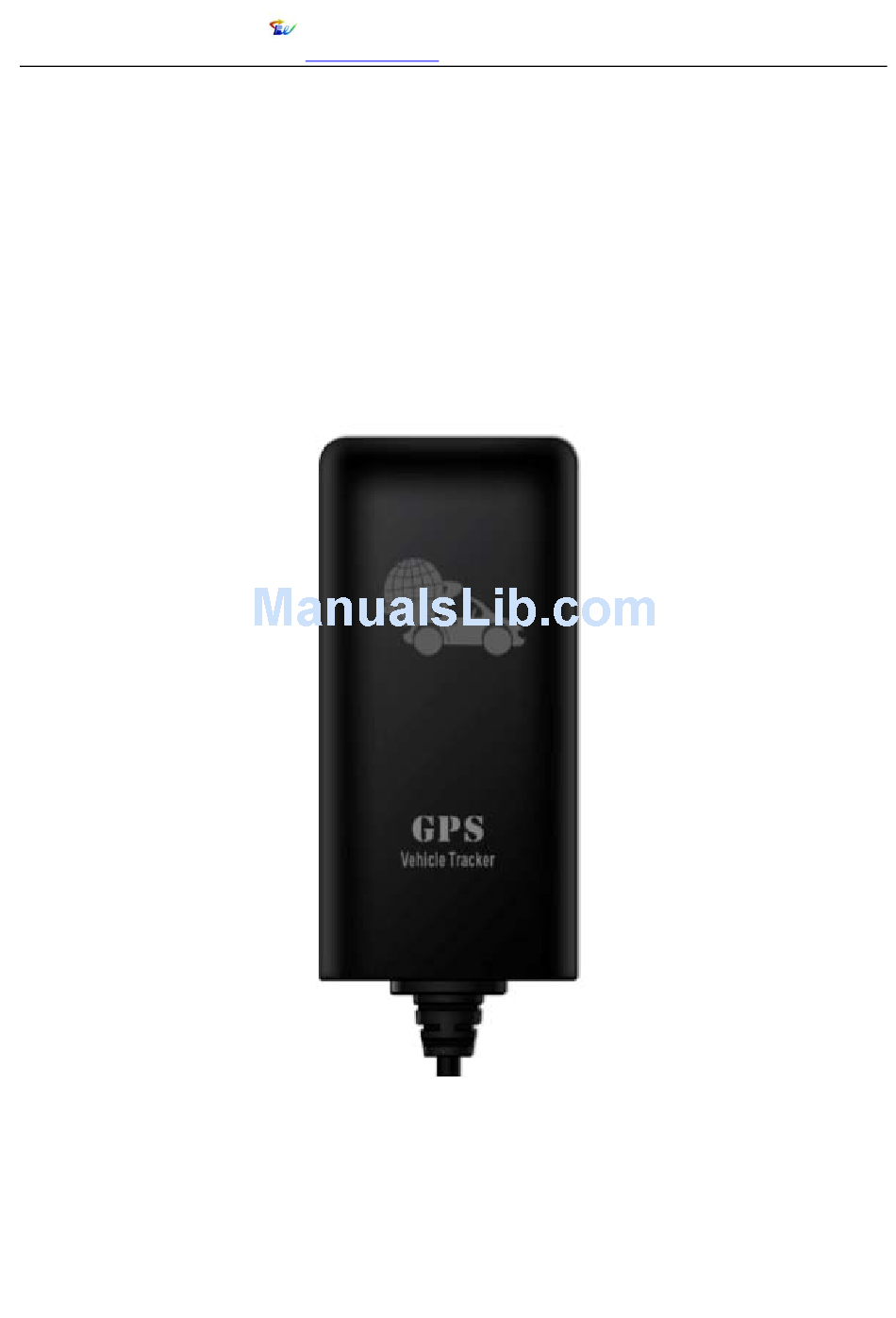

（photo 1）
Please read this manual carefully before attempting installation and online activation. Pictures
are for indication and illustration purposes only.
Advertisement
Table of Contents
Summary of Contents for Shenzhen Benway Technology BW08
-
Page 1: User Manual
SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER GPS Vehicle tracker (GPS+GSM+SMS/GPRS) User Manual (Version 2.1) （photo 1） Please read this manual carefully before attempting installation and online activation. Pictures are for indication and illustration purposes only. -
Page 2: Specifications
SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER 1：Accessories: 1) Power code 2) Relay 3) Locking bolts(4pcs) 4) String 5) 3M sticker 2、Specifications: ● GSM 850/900/1800/1900 ● GPRS: CLASS12,TCP/IP ● Wide for voltage input range::9.5 – 39.9VDC ●... - Page 3 SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER 3.2 Blue Led Light-( GSM status indicator) Led Status Meaning Quick Flashing Working normally, Uploading GPRS data to platform server. Slow Flashing Working normally, Receive GSM signal normally...
-
Page 4: Method Of Installation
SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER User can cut engine via platform or sending message to device. Vehicle will be shut Cut engine down and theft can’t drive car away.( For safety considering, it will not cut engine while... - Page 5 SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER （photo 3） 5.2、 Installation The device installation is covert. Please refer installation to an auto electrical contractor. To prevent theft of the device, it should be installed as covertly as possible. Covertly 5.2.1...
- Page 6 SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER 5.3 Device wiring diagram: （photo 4） 5.4 Operation of device: Open top cover firstly, Note top cover hasn’t fixed with screws in factory 5.4.1 Please press power switch on the up position (Powered off) Please refer picture 3.
-
Page 7: Cautions Of Device Wiring
SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER 6、Cautions of device wiring 6.1、Power code wiring: The standard voltage is 9.5V-39.9VDC. Please use the power line which provided by the manufacturer. The red line is the positive. The black line is the negative. The negative should earth alone or link iron during installing. - Page 8 SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER Authorized numbers officer numbers #Password#CP#new change password ok! For example：#6666#CP#1234#， Setting password password# New password is 1234 Restore reset password OK! For example：#6666#RP# Restore password #Password#RP# password to factory standard.
-
Page 9: Troubleshooting
SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER alarm Apply Voice For example：#6666#OM# monitoring #Password#OM# Cancel voice For example：#6666#CM# monitoring #Password#CM# Start Reset System, OK! For example：#6666#RESET#， Device will be re-started in Re-start device #Password#Reset# 8-18senconds. - Page 10 SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER 5、Check whether your SIM card charge is overdue; 6、Check whether the SIM card supports GPRS; 7、Check the parameter setup, whether the device IMEI number, GPRS sending interval is correct;...
- Page 11 SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER Warranty card of GPS Vehicle tracker Special statement: 1. Specifications of this product subject to change without further notice. 2. Any change about the appearance and color is subject to the real object.
-
Page 12: Maintenance Records
SHENZHEN BENWAY TECHNOLOGY CO., LTD TEL：+86 755-22652506 WEB：www.szbenway.com MODEL：BW08 GPS VEHICLE TRACKER Maintenance records Record one Maintenance unit Date Fault description Maintenance status IMEI number Serviceman Record two Maintenance unit Date Fault description Maintenance status IMEI number IMEI number...
