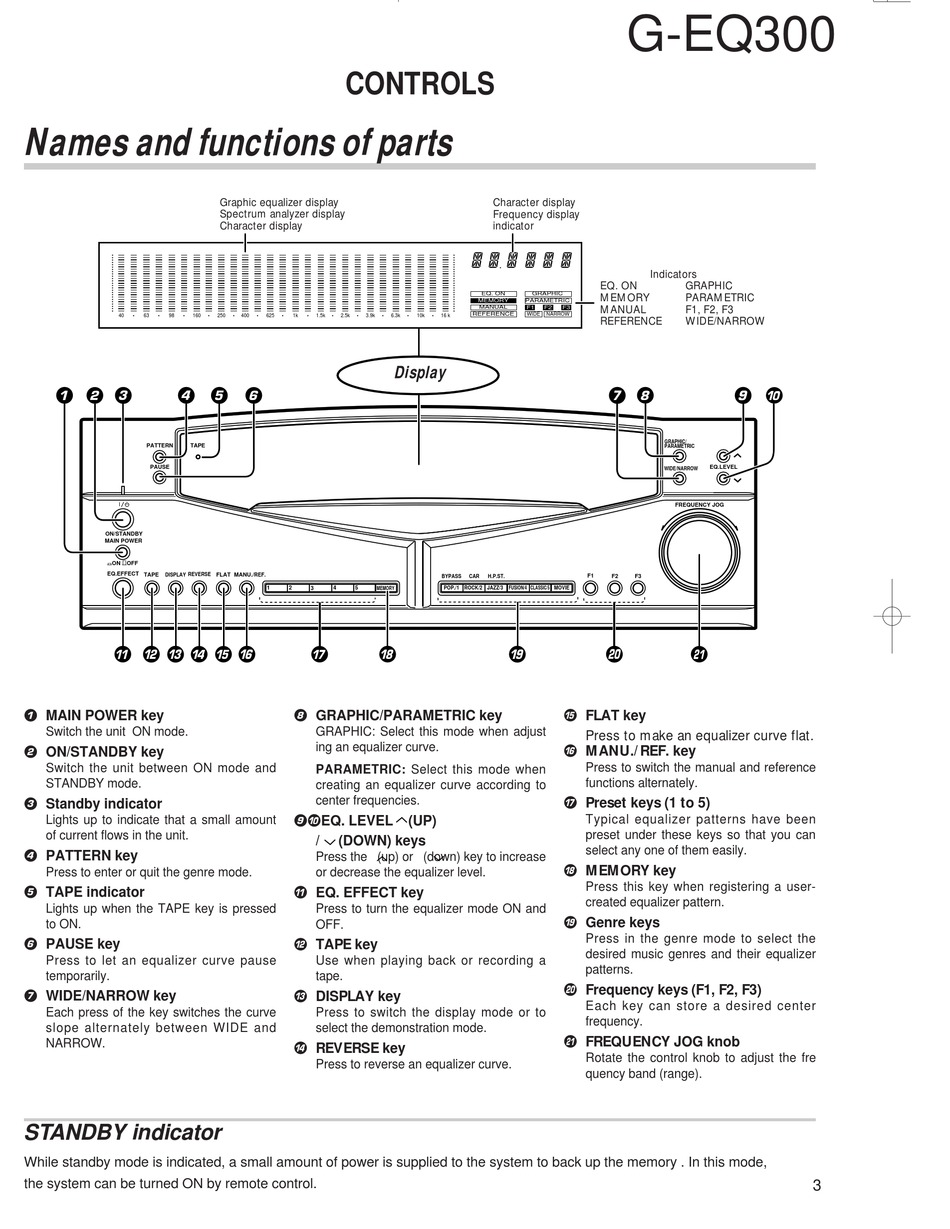

Names and functions of parts
40 63 98 160
1 2 3 4 5 6
PATTERN TAPE
PAUSE
ON/STANDBY
MAIN POWER
-ON –OFF
EQ.EFFECT
TAPE DISPLAY REVERSE FLAT MANU./REF.
! @ # $ % ^
1 MAIN POWER key
Switch the unit ON mode.
2 ON/STANDBY key
Switch the unit between ON mode and
STANDBY mode.
3 Standby indicator
Lights up to indicate that a small amount
of current flows in the unit.
4 PATTERN key
Press to enter or quit the genre mode.
5 TAPE indicator
Lights up when the TAPE key is pressed
to ON.
6 PAUSE key
Press to let an equalizer curve pause
temporarily.
7 WIDE/NARROW key
Each press of the key switches the curve
slope alternately between WIDE and
NARROW.
STANDBY indicator
While standby mode is indicated, a small amount of power is supplied to the system to back up the memory . In this mode,
the system can be turned ON by remote control.

CONTROLS

Graphic equalizer display
Spectrum analyzer display
Character display
250 400 625 1k 1.5k 2.5k 3.9k 6.3k
Display
1 2 3 4 5 MEMORY
& *
8 GRAPHIC/PARAMETRIC key
GRAPHIC: Select this mode when adjust
ing an equalizer curve.
PARAMETRIC: Select this mode when
creating an equalizer curve according to
center frequencies.
90EQ. LEVEL
/ (DOWN) keys
Press the (up) or (down) key to increase
or decrease the equalizer level.
! EQ. EFFECT key
Press to turn the equalizer mode ON and
OFF.
@ TAPE key
Use when playing back or recording a
tape.
# DISPLAY key
Press to switch the display mode or to
select the demonstration mode.
$ REVERSE key
Press to reverse an equalizer curve.
Character display
Frequency display
indicator
* * * * * *
EQ. ON GRAPHIC
MEMORY PARAMETRIC
MANUAL F1 F2 F3
REFERENCE WIDE NARROW
10k 16 k
BYPASS CAR H.P.ST.
POP./1 ROCK/2 JAZZ/3 FUSION/4 CLASSIC/5 MOVIE
(
% FLAT key
Press to make an equalizer curve flat.
^ MANU./REF. key
Press to switch the manual and reference
functions alternately.
& Preset keys (1 to 5)
Typical equalizer patterns have been
(UP)
preset under these keys so that you can
select any one of them easily.
* MEMORY key
Press this key when registering a user-
created equalizer pattern.
( Genre keys
Press in the genre mode to select the
desired music genres and their equalizer
patterns.
) Frequency keys (F1, F2, F3)
Each key can store a desired center
frequency.
¡ FREQUENCY JOG knob
Rotate the control knob to adjust the fre
quency band (range).
G-EQ300
Indicators
EQ. ON GRAPHIC
MEMORY PARAMETRIC
MANUAL F1, F2, F3
REFERENCE WIDE/NARROW
7 8 9 0
GRAPHIC/
PARAMETRIC
EQ.LEVEL
WIDE/NARROW
FREQUENCY JOG
F1 F2
F3
) ¡
