Connection to a Microphone

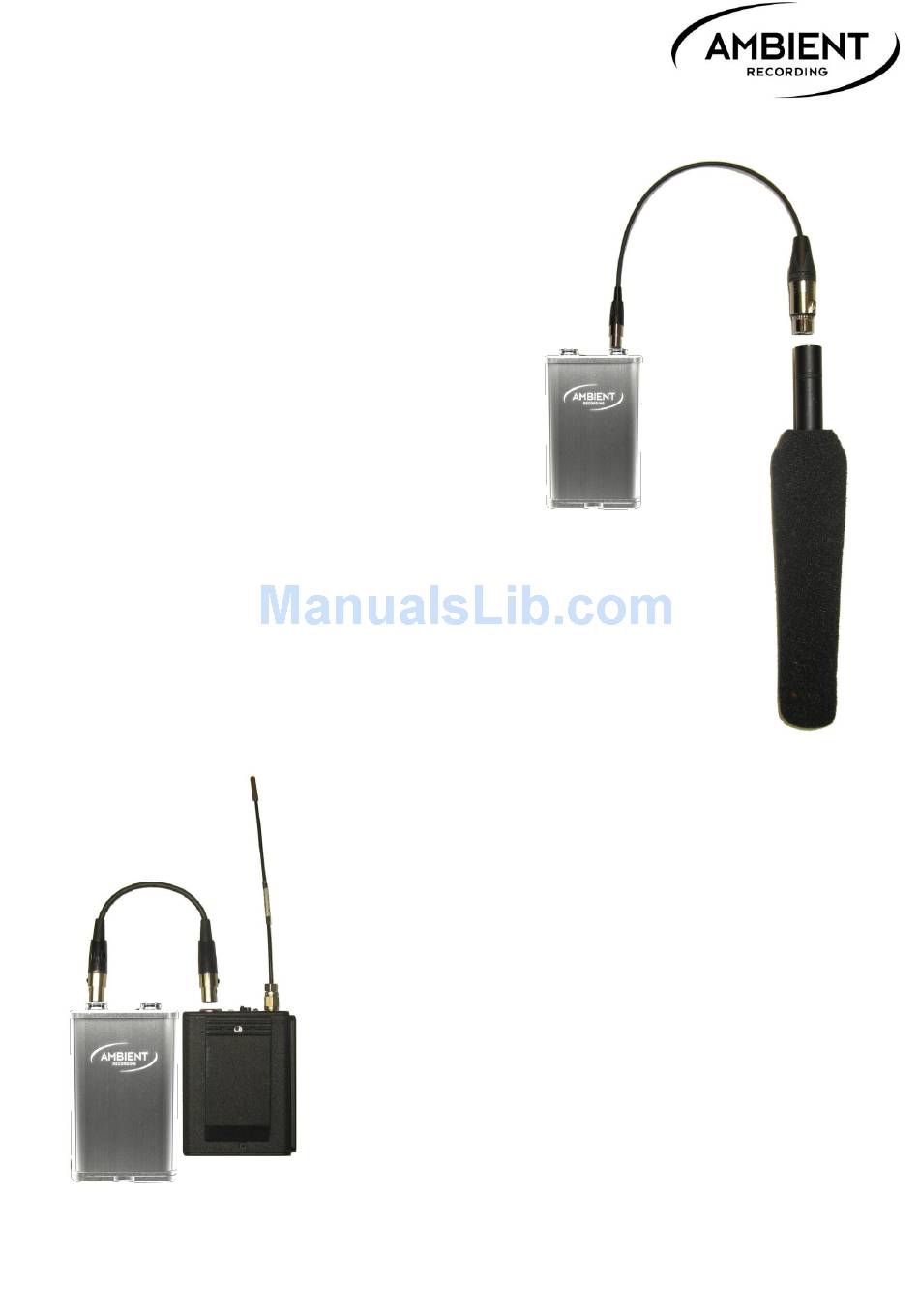

Connect the UMP II with the delivered cable
(4-pin mini XLR female to 3-pin XLR female)
to the condenser microphone.
4-pin mini XLR to MIC-input of UMP II,
3-pin XLR to the microphone

Connection to an Audio-Transmitter

Connect the UMP II with the delivered cable
(standard cable: Mini XLR-3F connector to open end)
Special cables on request
www.ambient.de/en
to the Audio-transmitter.
We offer various ready-to-use cables,
for example note picture on the left –
UMP II to Lectrosonics-transmitter.
