- Page 1 Gallop Gallop TRACKER TRACKER User Manual TROT www. DEVELOPMENT.com TROT DEVELOPMENT...
- Page 2 Gallop TRACKER © Copyright 2015 Trot Development AS All rights to your Tracker is reserved Trot Development AS. Neither parts or whole of this Tracker may be copied or re- produced without the written consent of Trot Development. Moreover, it can not spread parts or the whole product commercially, without the consent of Trot Development AS.
- Page 3 Gallop TRACKER Congratulations on purchasing your Tracker! This manual will help you get started with the use of this Tracker. It will give you information about how to use the product and how your Tracker works. The trac- ker will help you in the training of horses by measuring the speed instilt measure, so you can follow your horse speed and / or time.
-
Page 4: Table Of Contents
Gallop TRACKER CONTENTS Battery ................7 Charging the battery............8 Mounting / position on arm ..........9 Master Setting ..............10 Distance setting menu............11 Main display slower then 3:30.0.........12 The main display faster 3:30.0...........13 Double functions within ............14 GPS signal .......... - Page 5 Gallop TRACKER Specification ..............22 Safety Information .............23 Troubleshooting ..............23 Destruction of the product ..........24 TROT www. DEVELOPMENT.com...
- Page 6 The tracker has a limited duration when using it under normal use of such a product. Trot Development AS guarantee against manufacturing defects for one year. The guarantee does not apply when using beyond what is meant by product or by abuse.
-
Page 7: Battery
Gallop TRACKER BATTERY In your Tracker is the integrated battery that can not be changed besides the persons authorized by Trot Develop- ment AS. This is oppladd mustache and is estimated to last and device lifetime. Battery TROT www. DEVELOPMENT.com... -
Page 8: Charging The Battery
Gallop TRACKER Charging the battery To charge the battery opens the rubber plug in the front of the tracker and the charger can be put in. Use only the charger included in the package along with your tracker. Upon initial use, charge the battery for at least 12 hours before the product is used for the first time. -
Page 9: Mounting / Position On Arm
Gallop TRACKER Mounting / position on arm The belt threaded through the slots in the strap attached, and the tracker is ready to be attached to the arm. The product attaches to the left hand. Or mounted where it is not a danger to horse, rider or other people and property. -
Page 10: Master Setting
Gallop TRACKER Master Setting In the Master setting determines how your Tracker to work. US designation means that the calculations going on miles. By and pressing BT2 move the yellow text. When you get to gal- lop Tracker press BT3. This then becomes green, which indicates the Tracker device is tuned to. -
Page 11: Distance Setting Menu
Gallop TRACKER Distance setting menyen By and pressing BT2 drag km time to the speed you want the clock to save from. Press BT2 intill 17 Km / h turns green. The clock will now save time at every 400 m when the storage is on and the speed is over 17 km / h. -
Page 12: Main Display Slower Then 3:30.0
Gallop TRACKER Main display slower then 3:30.0 Distance Km/t Carriers distance Time 100 m Storage on / off Distance: Reset by pressing the BT3, savetime also reset. Km / h: Shows you your speed when the device has GPS conditi- ons. -
Page 13: The Main Display Faster 3:30.0
Gallop TRACKER The main display faster 3:30.0 Distance Trot time Carriers distance Mediotid Storage on / off Distance: Reset by pressing the BT3, savetime also reset. Travtid: Shows you your speed Travtid when the device has GPS conditions. and the move is over 3: 30.0 Mediotid, BT3 resets and entering new mediotid for preset stora- ge distance. -
Page 14: Double Functions Within
Gallop TRACKER Double functions whitin The buttons in the main viewing has double functions. This means that if you hold the button for 4 seconds, then drop it gets you into a submenu. Press a minimum of 4 seconds. BT1: Light adjustment menu. (From this you can reset the... -
Page 15: Gps Signal
Gallop TRACKER GPS-SIGNAL When Gallop Tracker is turned on it will automatically start searching for satellites. When looking for satellites the GPS indicator will be red. The indicator is then and go over to yellow indicator and so green. The colors indicate whether it has good or bad conditions. -
Page 16: Light Menu
Gallop TRACKER Light menu Button 1 Main Display Quick Print Reset Keep the button pressed until the device dis- Button 2 less light Button 3 more Light Knapp 1 Knapp 2 Knapp 3 TROT www. DEVELOPMENT.com... -
Page 17: Storage Menu
Gallop TRACKER Storage menu Heat: Shifts when driving slower than the preset speed, or 0 set distance Meter: Distance traveled on the current heat Time: The time from mid time, save time for each 400 meters High: Shows the highest speed between distances. (0-100, 100- 200, etc.) -
Page 18: Storage Selection Menu
Gallop TRACKER Storage selection menu Button 1 storing off Button 2 storing on Button 3 delete old, and storing on Knapp 1 Knapp 2 Knapp 3 TROT www. DEVELOPMENT.com... -
Page 19: Sub Menu
Gallop TRACKER SUB MENU By and select sub menu in the Master setting menu gets you into a sub menu. GPS rendering: displays GPS string Backlight adjustment: adjust light Reset unit: reset the unit Master Setting: menu image Demo mode: on or off... -
Page 20: About Gps
TRACKER About GPS GPS is an American satellite system that the US govern- ment controls, and Trot Development therefore does not guarantee for identification around the GPS system. It is integrated a GPS - antenna in your Tracker receiving GPS - signals from the satellites. It requires contact with a minimum number of satellites traveling time shall be pre- sented properly. -
Page 21: Treatment Of The Product
Gallop TRACKER Treatment of the product CLEANING The tracker can be cleaned with a damp cloth, but be espe- cially careful cleaning of the screen. If cleaning is not done carefully it can quickly be scratching the screen. The screen will anyway be somewhat scratched after some time of use. -
Page 22: Specification
Gallop TRACKER Specification Size: 76.6 mm x 70.3 mm x 52.4 mm Display: 2.4 ’’ LED Resolution Display: 176 x 220 Antenna: built-in GPS - antenna Bruks temperature: -20 degrees Celsius to 60 degrees Celsius Battery: Li-Ion Battery Duration: 12 hours of normal use... -
Page 23: Safety Information
Your Tracker is a GPS - product and can be affected by electromagnetic interference, storms etc. Trot Development AS is not responsible for the horse’s performance during training and competition. TROUBLE If you are experiencing errors with your Tracker is re- commended that you reset the device. -
Page 24: Destruction Of The Product
Gallop TRACKER Destruction of product Destruction takes place in an approved landfill to accept deli- very. TROT www. DEVELOPMENT.com...
Need help?
Do you have a question about the Gallop and is the answer not in the manual?
Questions and answers

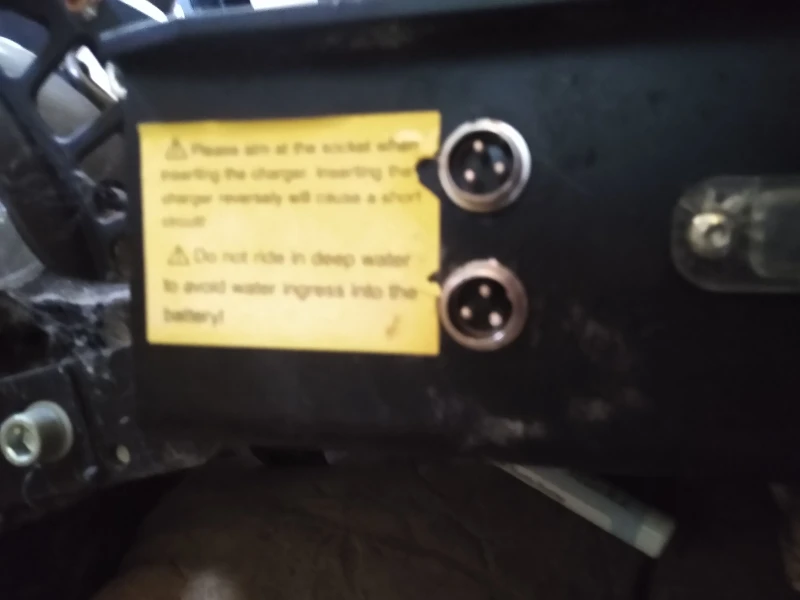

shorted charging ports replaced them no power when key is turned
