Summary of Contents for Mark World DV Mark

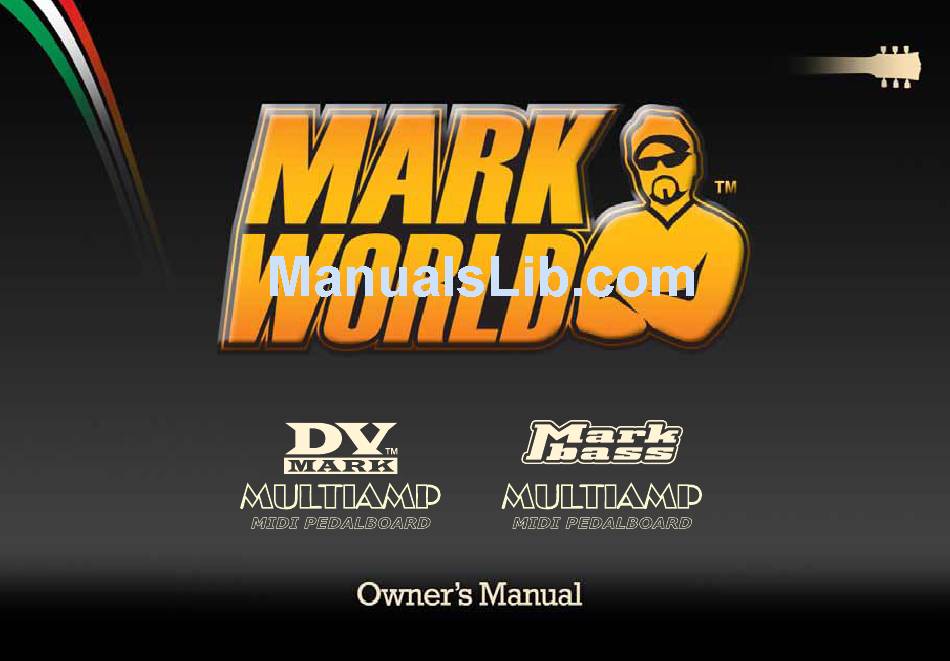

- Page 1 30.march.2015 MULTIAMP MULTIAMP MIDI PEDALBOARD MIDI PEDALBOARD...
- Page 2 You need to be able to always trust your amp… and we understand that! The second is flexibility. DV Mark amps have great versatility with a wide range of clean and distorted sounds for any musical style, from jazz to rock to metal—and never sacrifice your tone!
- Page 3 INtRODuctION Congratulations on your purchase of the MULTIAMP MIDI PEDALBOARD! The MULTIAMP MIDI PEDALBOARD is a powerful tool designed to control the Multiamp; it can also be customized for your gear requirements, providing two different modes of operation. 1. PROGRAM CHANGE The MIDI program change command allows you to recall the presets as for the Preset/Patch MAP setting on your Multiamp (or other receiving device).
-
Page 4: Quick Setup
quIcK Setup MULTIAMP MENU To start using the MULTIAMP MIDI PEDALBOARD, use a 5 pin MIDI connector. MIDI PEDALBOARD Plug one end into the MIDI OUT jack of the MULTIAMP MIDI PEDALBOARD and plug the other end into the MIDI IN jack of the Multiamp (or PC/CC TUNER other MIDI receiving device). -
Page 5: Program Change
pROGRAM cHANGe > NORMAL MODE (8 PC footswitches) The MULTIAMP MIDI PEDALBOARD starts in PROGRAM CHANGE (PC) mode when you power it, allowing to recall 8 different presets pressing the 8 switches of the pedalboard (red light shows the switch number in use and the program change number appears on the display when you press the switch). - Page 6 > BANK MODE (6 PC footswitches and preset banks up/down) It is possible to set the footswitches in BANK MODE (bAn), having the switches 8 and 4 to scroll preset banks (21) UP and DOWN , and the other 6 switches associated to specific preset numbers. To set the Incremental Mode push the “MENU”...
-
Page 7: Control Change
cONtROl cHANGe In Control Change (CC) mode the MULTIAMP MIDI PEDALBOARD switches send control change commands from CC #0 to CC #7 to turn ON/ OFF the effects on your Multiamp. The Control Change MAP at SYSTEM>MIDI menu on your Multiamp (firmware V 4.0) allows you to assign a control change number to each single effect to turn ON/OFF the effect assigned to a specific Control Change. -
Page 8: Volume Pedal
VOluMe peDAl The MULTIAMP MIDI PEDALBOARD allows to connect an expression pedal to its EXP pedal input, it’s assigned by default to Control Change #27 as for the VOLUME PEDAL function on the Multiamp (choose the SLOT of the preset where you want to assign the VOLUME PEDAL pressing SLOT SELECT and use the UP/DOWN buttons to select the VOLUME PEDAL, then press ENTER and select the PEDAL and RANGE parameters as you like and then STORE the preset). - Page 9 MultIAMp MIDI peDAlBOARD MeNu MAIN MENU (>) | SUB MENU (-) > PCF (program change format) > Chl (MIDI channel) - nor (normal mode) - bAn (bank mode) > FSt (factory restore) - Inc (incremental mode) - PAS (password: digit 163 then press OK) - PrE (preset settings) - SEt (reset device settings) - ALL (reset all)
- Page 10 SpecS Switches: Inputs: Pedal USB (for service/maintenance) Output: MIDI OUT (5 pins) Modes: PROGRAM CHANGE (Normal / Incremental / Bank) CONTROL CHANGE Other Features: Multiamp’s TUNER ACCESS Multiamp’s TAP TEMPO Power Requirement: 9V DC IN - 100mA - power supply (not included) or phantom power via MIDI cable Dimensions: 4.41”...
- Page 11 NOteS...
- Page 12 Product specifications are subject to change without notice www.markbass.it Italy - 66020 San Giovanni Teatino CH - Via Po, 52 Tel: +39 0854407764 / 0854465705 - Fax: +39 0854407764 / 0854407399 - www.dvmark.it - info@dvmark.it...
