OWNER'S MANUAL
GSV190
Click to Save As
[5]
[4]

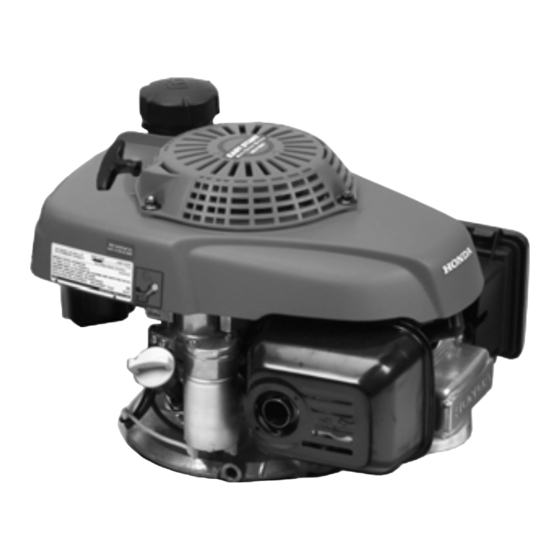

COMPONENT LOCATION
1
Starter Grip
2
Fuel Filler Cap
3
Fuel tank
4
Control location *
5
Air cleaner
* The engine control area differs based on the engine type. Refer to the individual figures on page 2 to
determine your engine control type when reading the Operation section and other sections in this manual.
00X31Z8E A200
(Appearance may differ in final application)
[1]
[3]
© 2014 American Honda Motor Co., Inc. All Rights Reserved
WARNING
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
California Proposition 65
This product contains or emits chemicals
known to the state of California to cause cancer,
birth defects or other reproductive harm.
[2]
[9]
[10]
6
Spark plug
7
Muffler
8
Starter motor (if equipped)
9
Oil filler cap/ dipstick
10
Engine serial number
[6]
[7]
[8]
HPE.2014.05
EM5
PRINTED IN U.S.A.
1

Advertisement

Table of Contents
loading

Related Manuals for Honda GSV190

Summary of Contents for Honda GSV190

  • Page 1 * The engine control area differs based on the engine type. Refer to the individual figures on page 2 to determine your engine control type when reading the Operation section and other sections in this manual. HPE.2014.05 PRINTED IN U.S.A. © 2014 American Honda Motor Co., Inc. All Rights Reserved 00X31Z8E A200...
  • Page 2 Type 1 Type 2 Type 3 [1] Fuel Valve [1] Fuel Valve [1] Fuel Valve [2] Remote Choke Cable [2] Remote Choke/Throttle Lever [2] Remote Choke/Throttle Lever [3] Flywheel Brake Lever [3] Flywheel Brake Lever Blade Brake Clutch Fixed Throttle Type 4 Type 5 [1] Fuel Valve...
  • Page 3    Figure 2 Figure 3 Figure 1 5W-30 • 10W-30 100°F 20 30 40°C    Figure 4 Figure 5 Figure 6 0.028 ~ 0.030 in (0.70 ~ 0.80 mm)   Figure 7 Figure 8 3 mm ...

  • Page 4: Table Of Contents

    DAMAGE PREVENTION MESSAGES You will also see other important messages that are preceded by the Thank you for purchasing a Honda engine. We want to help you get word NOTICE. the best results from your new engine and operate it safely. This This word means: manual contains information on how to do that;...

  • Page 5: Operation

    OPERATION Type 1: Flywheel Brake, Remote Choke/Throttle STARTING THE ENGINE SAFE OPERATING PRECAUTIONS 1. Move the choke/throttle lever* [2] to the CHOKE position (cold Before operating the engine for the first time, please review the engine). SAFETY MESSAGES and the BEFORE OPERATION CHECKS 2.

  • Page 6: Servicing Your Engine

    Remember that an authorized Honda servicing dealer knows your (4) These items should be serviced by an authorized Honda servicing dealer, unless you have the proper tools and are mechanically proficient. Refer engine best and is fully equipped to maintain and repair it.

  • Page 7: Refueling

    REFUELING ENGINE OIL This engine is certified to operate on unleaded gasoline with a pump Oil is a major factor affecting performance and service life. Always octane rating of 86 or higher (research octain rating of 91 or higher). change the oil in accordance with the maintenance schedule We recommend refueling after each use to minimize the air present in (page the fuel tank.

  • Page 8: Air Cleaner

    6. After the spark plug is seated, tighten with the proper size spark plug wrench to compress the washer. We recommend the use of a Honda Genuine air filter to ensure it When installing a new spark plug, tighten 1/2 turn after the spark seals and performs as designed.

  • Page 9: Storing Your Engine

    Fuel filter clogged, carburetor Take the engine to an authorized 5. Reinstall the spark plug. malfunction, ignition Honda servicing dealer or refer to malfunction, valves stuck, etc. the shop manual to replace or repair STORAGE PRECAUTIONS faulty components as necessary.

  • Page 10: Technical Information

    The following instructions and procedures must be followed in order to certified, for extended periods of time, may increase emissions. keep the emissions from your Honda engine within the emission standards. High altitude performance can be improved by specific modifications to the carburetor.
  • Page 11 1000 hours (225 cc and greater) ENGINE SWITCH CONTACT Specifications BLACK OPEN STOP CLOSE GSV190 Length x Width x Height 14.6 x 13.5 x 14.2 in (370 x 342.5 x 360 mm) Dry weight 28.7 lb (13.0 kg) Engine type 4-stroke, overhead cam, single cylinder Displacement 11.4 cu in (187 cm...

  • Page 12: Consumer Information

    What American Honda Will Repair or Replace Under Warranty: Customer Service Information American Honda will repair or replace, at its option, any part that is proven to be defective in material or workmanship under normal use during the Servicing dealership personnel are trained professionals. They should applicable warranty time period.
  • Page 13 Honda Power Equipment dealer emission control system warranty on your 2014 and later Honda Power who is authorized by Honda to sell and service that Honda product during their Equipment engine. In California, new spark-ignited small off-road equipment normal business hours.

  • Page 14: Avoiding Fuel-Related Problems

    GSV ENGINE POWERED PRODUCTS When properly maintained, your Honda powered product should provide years of trouble-free operation. This includes the fuel system. However, gasoline can quickly deteriorate (in as little as 30 days) causing starting or running problems and, in some cases, damage to the fuel system.
  • Page 15 보증수리기간 내에 있다는 증명서인 품질 보증서와 영수증을 지참하고 혼다범용엔진 딜러 또는 OEM제품을 구매한 딜러에게 방문하면 됩니다. 만일 그 딜러가 Honda 판단하여 엔진 수리가 필요할 경우 보증수리가 진행될 것입니다. Honda Honda Motor Co., Ltd. Revised: March 2009 (PWL53374-B) Printed in U.S.A.
