Summary of Contents for airnet AIR-RT150GNH
-
Page 1: Quick Start Guide

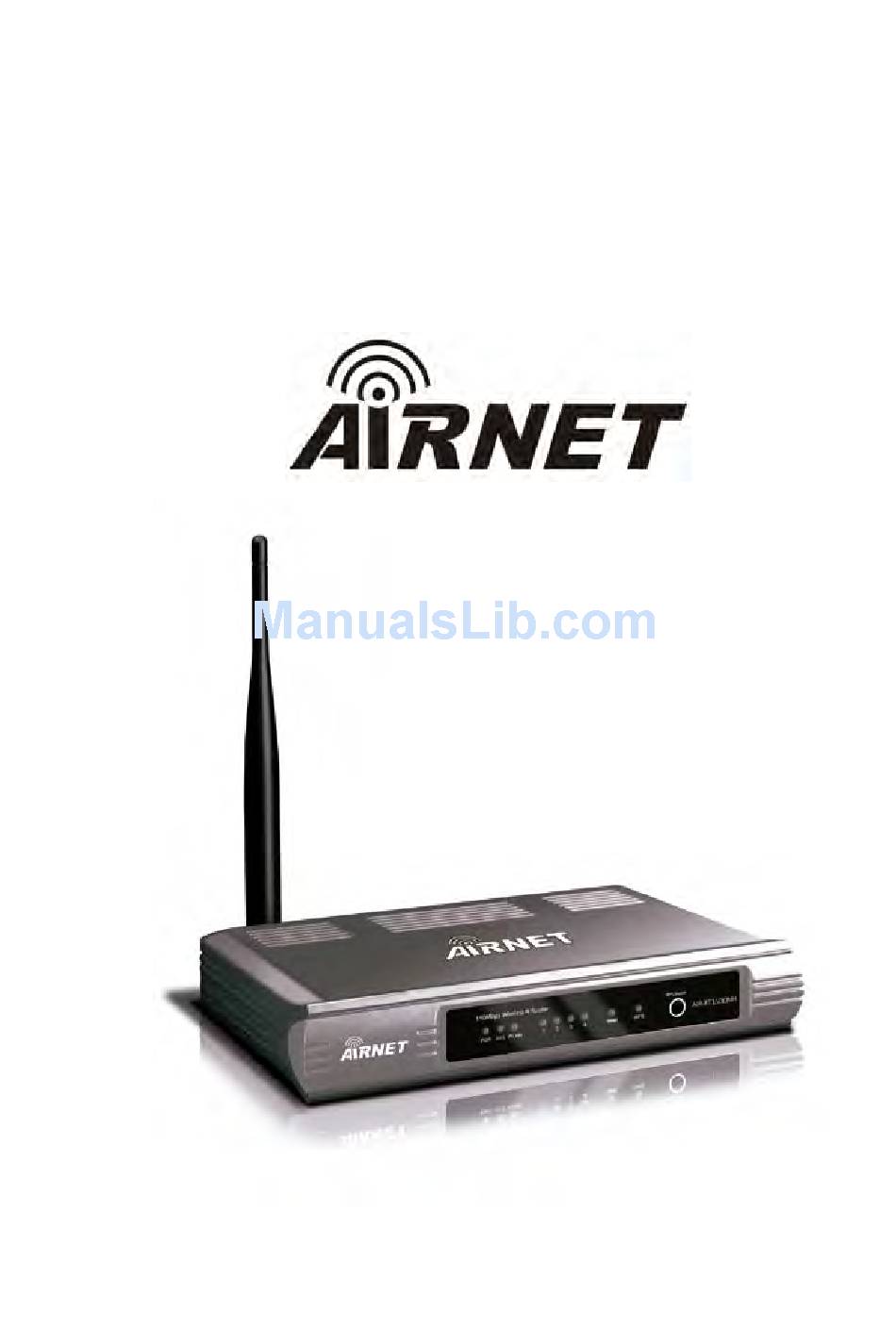

Quick Start Guide AIR-RT150GNH 150Mbps Wireless N Router March, 2013... -
Page 2: Connecting The Router
1. Connecting the Router Before installing the router, you should have connected your PC to the Internet through your broadband service successfully. If there are any problems, please contact with your ISP. After that, please install the router according to the following steps. -
Page 3: Log In To The Router
h. When all of the devices boot up completely, make sure that the router's LEDs light as follows: • Power LED: Light up • System LED: Flash • Link/Act LEDs (WAN&LAN): Light up • WLAN LED: Flash 2. Login to the Router To login to the router, you should set up the TCP/IP Protocol in "Obtain an IP address automatically"... - Page 4 b. The WAN Connection Type screen will appear as shown below. The Router provides three popular ways PPPoE, Dynamic IP and Static IP to connect to the Internet. Please make sure of what kind of connection type your ISP provides, and then select the very type and click Next to go on configuring.
- Page 5 d. After you complete the above, the Wireless settings screen will appear as the following: Wireless Radio: Keep the default setting: Enable. If you want to disable wireless, please select Disable. SSID: Create a unique and easy-to-remember name for your wireless network.
-
Page 6: Wps Configuration
e. Click the Next button. You will then see the Finish page. If you don’t make any changes on the Wireless page, you will see the Finish page as shown below. Click the Finish button to finish the Quick Setup. If there is something changed on the Wireless page, you will see the Finish page as shown below. - Page 7 Note： When pressing and holding the WPS/Reset button for more than 5 seconds, you will reset the router. Step2: Press and hold the WPS button on the Adapter for 2 or 3 seconds. Or: select Push the button on my access point in the configuration utility of the WPS as below, and click Next.
- Page 8 For the router, click the Add device button on the WPS screen and then select Enter the new device’s PIN and enter the PIN code of the adapter on the screen displayed as shown below. Then click Connect. 2) Enter the PIN code of the router into the wireless adapter. For the router, please get the Current PIN code on the WPS screen.
- Page 9 Click the Add device button on the screen from which you got the PIN code, you will see the following screen which indicates the connection status. Once it shows “Connect successfully!”, the WPS connection is finished. Note: 1) For the router, please keep the default WPS Status as Enabled all the time. 2) The status LED on the Router will light green all the time if the device has been successfully added to the network.
- Page 10 This equipment may be operated in all EU countries (and other countries following the EU directive 1999/5/EC). Usage in the following countries might be subject to restrictions: FR, IT, NO. See detail information in product’s document of resource CD.
- Page 11 Netkrom Technologies Inc. 2134 NW 99th Avenue Miami, FL 33172 - USA...
