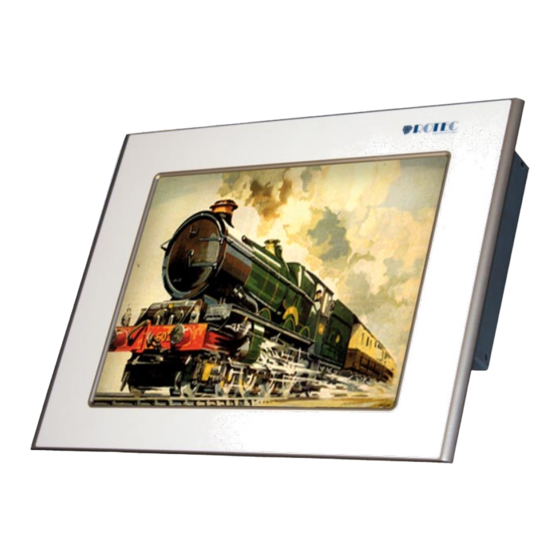

iPC12 Ruggedized POI PC Display
User Manual
you
ROTEC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iPC12 and is the answer not in the manual?

Questions and answers

Related Manuals for Rotec iPC12

Summary of Contents for Rotec iPC12

  • Page 1 Ruggedized POI PC Display User Manual ROTEC...
  • Page 3 Revisions iPC12 Revisions Revisions to the User’s Manual are briefly listed here by index: Index Revision Date Author Reason preliminary version First edit 8.12.2007 P. Walter Changed BIOS Menu 23.03.2008 P. Walter - 1 - ROTEC technology...
  • Page 4 The product you purchased is versatile and complex, and even a small oversight can affect overall performance. Although the information in this document has been carefully reviewed, ROTEC does not warrant it to be free of errors or omissions. In this case, we apologize and would greatly appreciate correction proposals.

  • Page 5: Table Of Contents

    Content iPC12 Content INSTRUCTION..................... 6 IMPORTANT SAFETY INFORMATION ............7 2.1......................7 ENERAL UIDELINES 2.2....................7 NSTALLATION ESTRICTIONS 2.3....................8 LECTRICAL ESTRICTIONS 2.4................8 PERATING AND AINTENANCE UIDELINES 2.5..................... 10 ATTERY NFORMATION UNPACKING ..................... 11 WALL MOUNTING ..................
  • Page 6 Content START UP ....................17 TECHNICAL DATA ..................18 PC SPECIFICATIONS .................. 21 9.1....................21 UNCTIONAL PECIFICATIONS 9.2......................24 LOCKDIAGRAMM 9.3......................25 ATCHDOG IMER 9.3.1. Configuration ......................25 9.3.2. Programming ......................25 9.4...................... 26 ARDWARE ONITOR 9.4.1.
  • Page 7 Content iPC12 10.1. CUSTOMER SERVICE ....................48 10.2. CLEANING ........................48 COMMUNICATIONS REGULATIONS INFORMATION ........49 - 5 - ROTEC technology...

  • Page 8: Instruction

    Content Instruction This manual will familiarize you with the installation and use of your Rotec MDR-12 display. Please take the time to read these instructions even if you are familiar with monitors and computers. We have taken all possible care to ensure that this manual contains correct, accurate information. We reserve the right to make changes according to technical progress.

  • Page 9: Important Safety Information

    Important Safety Information iPC12 Important Safety Information This section contains: • Battery information • Important safety information This display has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like any electronic device, however, the display should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the display, read and follow these safety instructions.

  • Page 10: Electrical Restrictions

    Content • To prevent fire, never place any type of candle or flames on the top or near the display. • Do not permit anything to rest on the power cord. Do not locate the display where people can walk on its power cord.
  • Page 11 Important Safety Information iPC12 • Disconnect external peripheral devices. • Unplug the iPC from the wall outlet and refer servicing to qualified service personnel under any of the following conditions: The cord or plug is damaged or frayed. The iPC does not operate normally when the operating instructions are followed.

  • Page 12: Battery Information

    Content 2.5. Battery Information If the display has a battery that can be changed by the user, observe the following warning whenever you are handling the battery: Warning! Danger of explosion if battery is incorrectly replaced. The battery used in this device may present a fire or chemical burn hazard if mistreated.

  • Page 13: Unpacking

    Unpacking iPC12 Unpacking Carefully take the display out of the packaging and make sure that all of the following components are included: iPC12 AC-Power Adapter (optional) This user manual Windows XP licence including CD (optional) - 11 - ROTEC technology...

  • Page 14: Wall Mounting

    Content Wall mounting The Rotec iPC12 PanelPC can be mounted and operated in vertical or in horizontal position. That means that you can hang the display either in “landscape” or in “portrait” orientation to the wall. The displayed picture can also be rotated to fit the desired orientation.

  • Page 15: Interfaces

    Interfaces iPC12 Interfaces 5.1. Video-In The Video-In Interface is realized using a Conexant CX23883 PCI Video Decoder, that provides depending on configuration four FBAS signal inputs (multiplexed on one A/D-Converter) or three FBAS and one S-Video input. Note: The Video-In ist not available on the light version 5.2.

  • Page 16: Usb

    Content 5.6. USB Three USB host controllers are on the Intel® 82801DB south bridge device. The USB controllers comply with both versions 1.1 and 2.0 of the USB standard and are backward compatible. Only two ports are available. The USB controllers are PCI bus devices. The BIOS allocates required system resources during configuration of the PCI bus.

  • Page 17: Audio

    Interfaces iPC12 • Max. resolution CRT QXGA 2048x1536 • Max. resolution LCD UXGA 1600x1200 (4G colors) • Bits/Pixels supported 1x18 bit, 2x18 bit, 1x24 bit* , 2x24 bit 5.9. Audio The iPC audio controller is integrated in the Intel® 82801DB southbridge, the external audio codec is a AC97 compatible VIA VT1618 .

  • Page 18: Open/Close The Housing

    Content Open/close the housing Warning! Take care that power is off while doing some handlings in the open housing. ROTEC technology - 16 -...

  • Page 19: Start Up

    Start Up iPC12 Start Up The iPC will start up by connecting the power cable to the power connector on the rear side. Take care that the cable is supplied with power. The iPC will boot up after power on.

  • Page 20: Technical Data

    Content Technical Data Product iPC12 LCD Module Size 12“ Visual Characteristics Panel Resolution 800x600(Option: 1024x768) Response time Tg = 6,5ms Contrast ratio 500:1 Brightness 400 cd/m² Standard Input/Output Capabilities Video (S-Video, Composite) optional Standard VGA Output Control IR Remote...
  • Page 21 Technical Data iPC12 Other Specifications Protective Glass Cover Yes, Anti-glare Embedded PC System for 24H/7D usage Operating Temperature Range -10 to 60 degree Celsius at 10-90% Hum. Product Warranty 18 months from the delivery date (Return To Base) Embedded PC Specification...
  • Page 22 Content Mechanical Specification Fan with minimal noise Security Housing Aluminium with Powder Coating Size of Monitor (WxHxD) 310x250x52 Size of Packaging (WxHxD) 400x300x100 Weight of Monitor with Protection Glass (NET) 3 Kg Weight including Packaging (Cross) 4 kg Mounting...

  • Page 23: Pc Specifications

    PC Specifications iPC12 PC Specifications 9.1. Functional Specifications Prozessor • Intel® Pentium® M Processor 1.4 GHz • Intel® Celeron® M Processor 600 MHz and 1.0 GHz • 400 MHz CPU bus • 200/266 MHz memory bus Chipset: • Intel® 852GM (Celeron M 600MHz), 855GME (others) Super I/O •...
  • Page 24 Content Compact Flash Socket • Supports UDMA modes Universal Serial Bus (USB) • Three USB 1.1/2.0 ports (UHCI and EHCI) • USB legacy keyboard support • USB floppy, CD-ROM, Hard drive, and Memory stick boot support Integrated Ethernet •...
  • Page 25 PC Specifications iPC12 Power Management • ACPI support • Suspend to RAM (S3) support - 23 - ROTEC technology...

  • Page 26: Blockdiagramm

    Content 9.2. Blockdiagramm ROTEC technology - 24 -...

  • Page 27: Watchdog Timer

    PC Specifications iPC12 9.3. Watchdog Timer The watchdog timer (WDT) is integrated in the Winbond W83627 controller of the ePanel PM and can issue a reset to the system. The watchdog timer circuit has to be triggered within a specified time by the application software.

  • Page 28: Hardware Monitor

    CPU die. To monitor the parameters of this feature from your operating system, ROTEC recommends that you use the 32-bit protected mode JUMPtec’s Intelligent Device Architecture driver (JIDA 32) with the test and demo application for Windows 95/98/ME/NT/2000/XP.

  • Page 29: Thermal Management

    PC Specifications iPC12 9.5. Thermal Management The Thermal Management feature of the ePanel PM helps control the processor’s temperature by activating the automatic thermal throttling after the processor silicon reaches a certain temperature. This feature can be enabled and configured in the BIOS Setup utility. You can specify the temperature level when throttling starts, define a hysteresis value to get back to 100% CPU performance, and specify the percentage for CPU performance in throttling mode.

  • Page 30: Device Configuration

    Content 9.7. Device Configuration Many of the onboard devices offer several configuration settings in the System BIOS setup. Refer to chapter SETUP GUIDE for more configuration information. Onboard Device see Main Menu / Sub Menu Graphics Interface Advanced / Advanced Chipset Control / Graphics Memory Advanced...
  • Page 31 PC Specifications iPC12 Network Interface Advanced / PCI-PNP Configuration / Onboard LAN IRQ Line Advanced / IO Device Configuration / LAN Options / Onboard LAN Controller Advanced / IO Device Configuration / LAN Options / Onboard LAN PXE ROM Advanced / IO Device Configuration / LAN...

  • Page 32: Setup Guide

    Content 9.8. Setup Guide The PHOENIX BIOS Setup Utility changes system behavior by modifying the BIOS configuration. The setup program uses a number of menus to make changes and turn features on or off. Whenever you contact technical support about BIOS issues, providing a BIOS version <ePPMR???>...

  • Page 33: Info Menu

    PC Specifications iPC12 9.8.3. Info Menu Feature Description Bios Version Shows the actual BIOS version BIOS Date Shows the BIOS production date Board Name Shows the KONTRON specific board name (JIDA entry) Board Class Shows the KONTRON specific board class (JIDA entry)
  • Page 34 Content 9.8.4.1. Compact Flash, Secondary Master or Slave Submenus Feature Option Description Type Defines the IDE drive ATAPI Removable = Auto, None read- and writeable media e.g. LS120 and ATAPI USB-ZIP Other ATAPI = for ATAPI devices Removable CD-...

  • Page 35: Advanced Menu

    PC Specifications iPC12 9.8.5. Advanced Menu Feature Description Advanced Chipset Control Opens Advanced Chipset Control submenu PCI/PNP Configuration Opens PCI/PNP Config submenu Memory Cache Opens Cache Control submenu I/O Device Configuration Opens Peripheral Config submenu Keyboard Features Opens Keyboard Features submenu Hardware Monitor...
  • Page 36 Content 9.8.5.2. PCI/PNP Configuration Submenu Feature Option Description No Yes PNP OS installed If your system has a PnP OS (such as Win9x), select Yes to let the OS configure PnP devices not required for booting. No allows the BIOS to configure them...
  • Page 37 PC Specifications iPC12 9.8.5.4. Memory Cache Submenu Feature Option Description Memory Cache Enables or Disables L2 cache Disabled Enabled Cache System BIOS Controls caching of System BIOS area Uncached Write Area Protect Cache Video BIOS Controls caching of Video BIOS area...
  • Page 38 Content 9.8.5.6. USB Options Submenu Feature Option Description USB UHCI Host Enable / Disable UHCI host controller for port Disabled Contr. 1 Enabled USB UHCI Host Enable / Disable UHCI host controller for port Disabled Contr. 2 Enabled USB Touch Controller...
  • Page 39 PC Specifications iPC12 9.8.5.8. SIO Options Submenu Feature Option Description Onboard FDC Enables onboard floppy disk controller Disabled Enabled Serial Port A, B Disabled Enabled Enabled requires end user to enter the base Auto I/O address and the IRQ Auto makes the...
  • Page 40 Content 9.8.5.9. Keyboard Features Submenu Feature Option Description NumLock Auto, On, Off On or Off turns NumLock on or off at boot-up Auto turns NumLock on if it finds a numeric key pad Disabled, Key Click Turns audible key click on Enabled 30/sec, 26.7/sec...
  • Page 41 PC Specifications iPC12 9.8.5.12. Display Control Submenu Feature Option Description Display Mode CRT only Selects display mode LFP only CRT+LFP Displays the revision of the JILI data area JDA Revision image Flat Panel Type VGA 1x18 Select Auto to let the BIOS automatically...
  • Page 42 Content 9.8.5.13. Miscellaneous Submenu Feature Option Description Floppy Check Enabled verifies floppy type Disabled Enabled Summary Screen Disabled If enabled, a summary screen is displayed Enabled just be- fore booting the OS to let see the configuration QuickBoot Mode...

  • Page 43: Security Menu

    PC Specifications iPC12 9.8.6. Security Menu Feature Option Description Supervisor Password is Displays whether password is set Clear Set User Password is Displays whether password is set Clear Set Set Supervisor Password Up to seven Pressing <Enter> displays the dialog box for alpha- en- tering the user password.

  • Page 44: Power Menu

    Content 9.8.7. Power Menu Feature Option Description No Yes Enable ACPI Enables/Disables ACPI BIOS (Advanced Configuration and Power Interface). IRQ9 is used for SCI (Sys- tem Control Interrupt). ACPI Control Submenu Opens the ACPI submenu Thermal Submenu Defines thermal management values...
  • Page 45 PC Specifications iPC12 9.8.7.1. ACPI Control sub menu Feature Option Description APIC - IO APIC Mode Disabled This item is valid only for Windows XP. Also, Enabled a fresh install of the OS must occur when APIC Mode is desi- red...

  • Page 46: Exit Menu

    Content 9.8.8. Exit Menu Feature Option Description Exit Saving Changes Saves selections and exits setup. The next time the system boots, the BIOS configures the system ac- cording to the Setup selection stored in CMOS Exit Discarding Exits Setup without storing in CMOS any Changes new selections you may have made.

  • Page 47: Bios Extension

    PC Specifications iPC12 9.8.9. Bios Extension Besides the PHOENIX System BIOS, the ePanel PM comes with a few BIOS extensions that support special features. All extensions are located in the onboard Flash. Some extensions are permanently available; some are loaded if required during boot-up.

  • Page 48: Updating/Restoring Bios Using Phoenix Update Tool

    Content 9.8.9.3. LAN PXE ROM This optional ROM allows you to boot the ePanel PM over an Ethernet connection. If the onboard LAN PXE ROM is enabled in the system BIOS setup, an optional ROM for the Ethernet controller loads into memory during boot up.
  • Page 49 PC Specifications iPC12 ❹ If the BIOS image (ePPMR???.WPH) changes because of an update or bug fix, copy the new BIOS onto the diskette. Phlash16 runs in either command line mode or crisis recovery mode. ❺ Use the command line mode to update or replace the BIOS. To execute Phlash16 in this mode, move to the Crisis Recovery Disk and type: PHLASH16 <bios name>...

  • Page 50: Maintenance

    To analyze the error please check first all connections and configuration of the software. Don’t try to repair the hardware inside. No warranty if improper operated 10.1. CUSTOMER SERVICE To get more technical information and help concerning errors on the iPC please contact Rotec customer service. Tel: +49 (0)7222 1008 80...

  • Page 51: Communications Regulations Information

    Communications Regulations Information iPC12 Communications Regulations Information DECLARATION OF CONFORMITY According to ISO/IEC Guide 22 and EN 45014 Manufacturer’s Name: ROTEC technology GmbH Manufacturer’s Adress: Gutenbergstr. 15 D76437 Rastatt Germany Declares, that the product: Product Name: iPC15 Conforms to the following Product Specifications:...
