Summary of Contents for StarMax 5136CD-230V
Page 1

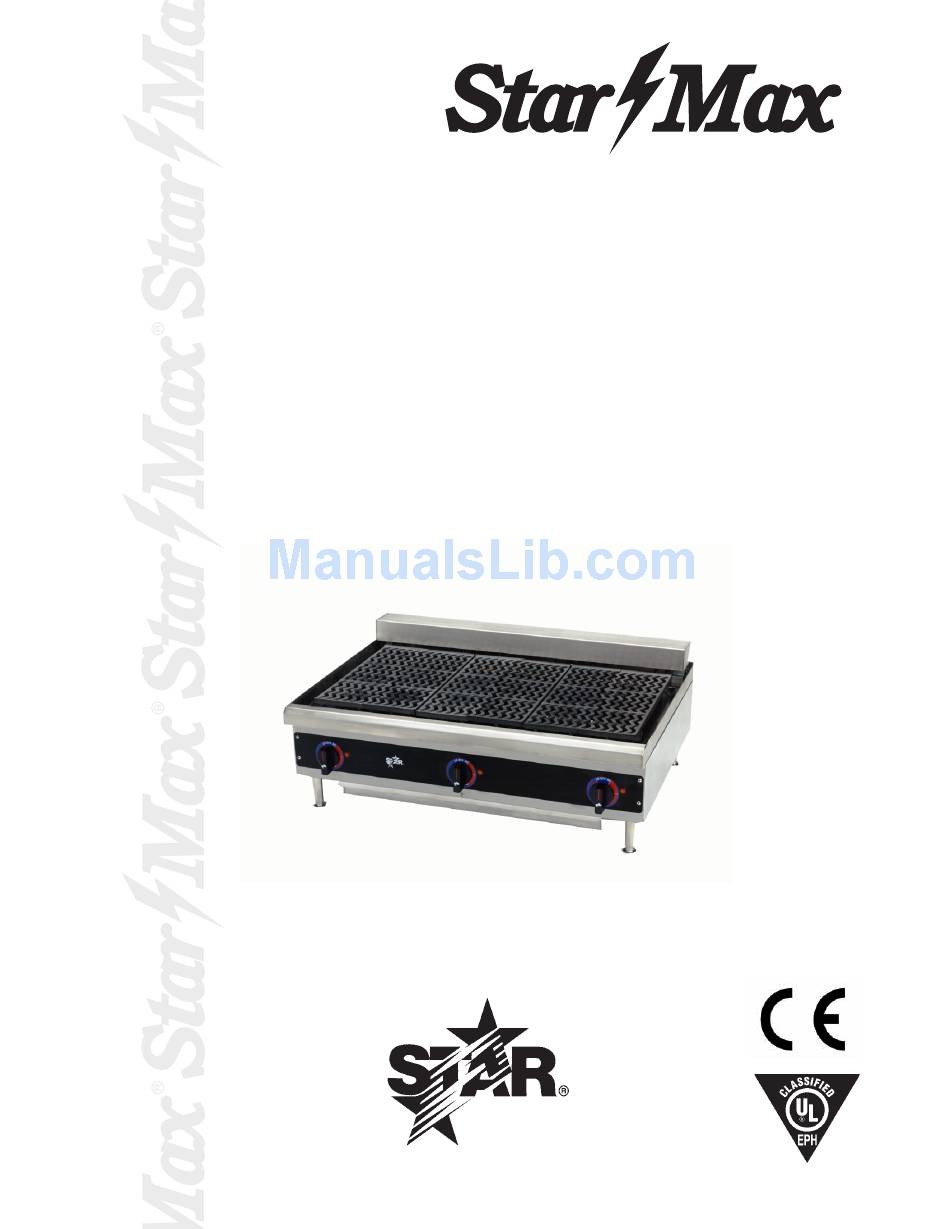

® ELECTRIC COUNTER CHAR-BROILER MODEL 5136CD-230V Installation and Operation Instructions 2M-Z9838 Rev. A 8/7/06 5136CD...
Page 2
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
Page 3
SPECIFICATIONS 5136CD Infinite Control, 3 Controls, 8.3/9.1 KW, 594 sq. in (3832 sq. cm) Grid Area Type: Installed - 175 lb (80 kg); Shipping - 215 lb. (98 kg) Weight: Dimensions: 36" W x 25 5/8" D x 14 1/4"H (91 cm W x 65 cm D x 36 cm H) 220V, 3 PH Amps: x - 12.6 y - 12.6 z - 12.6 n - 12.6...
Page 4
INSTALLATION The installation of this appliance should conform to the national electric code and local electric codes and ordinances and the local electric company rules and regulations. For your protection, we recommend that a qualified electrician install this appliance. The electrician should be familiar with electrical installations and local electrical requirements.
Page 5
INTERNATIONAL ONE (1) YEAR EQUIPMENT WARRANTY All workmanship and materials in “STAR” products are warranted for a period of one year from the date shipped from the factory or one year from the date shown on the proof of purchase of the end-user when purchased through an authorized “STAR” dealer/dis- tributor in a commercial foodservice location.
Page 7
SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - 5124CD (TYPICAL) SK2209 Rev. A 8/7/2006...
Page 8
PARTS LIST August 7, 2006, Rev. A MODELS 5136CD-230V Electric Counter Char-Broilers Number Part Number Number Description and Model Designation Unit H1-Z6118 ELEMENT HOUSING COVER 5136CD H1-Y3266 ELEMENT STRAP 5136CD 2F-Z6858 SUPPORT WITH BUSHING 2I-7370 GASKET H1-Z6116 ELEMENT HOUSING 5136CD 2F-Y3107...
