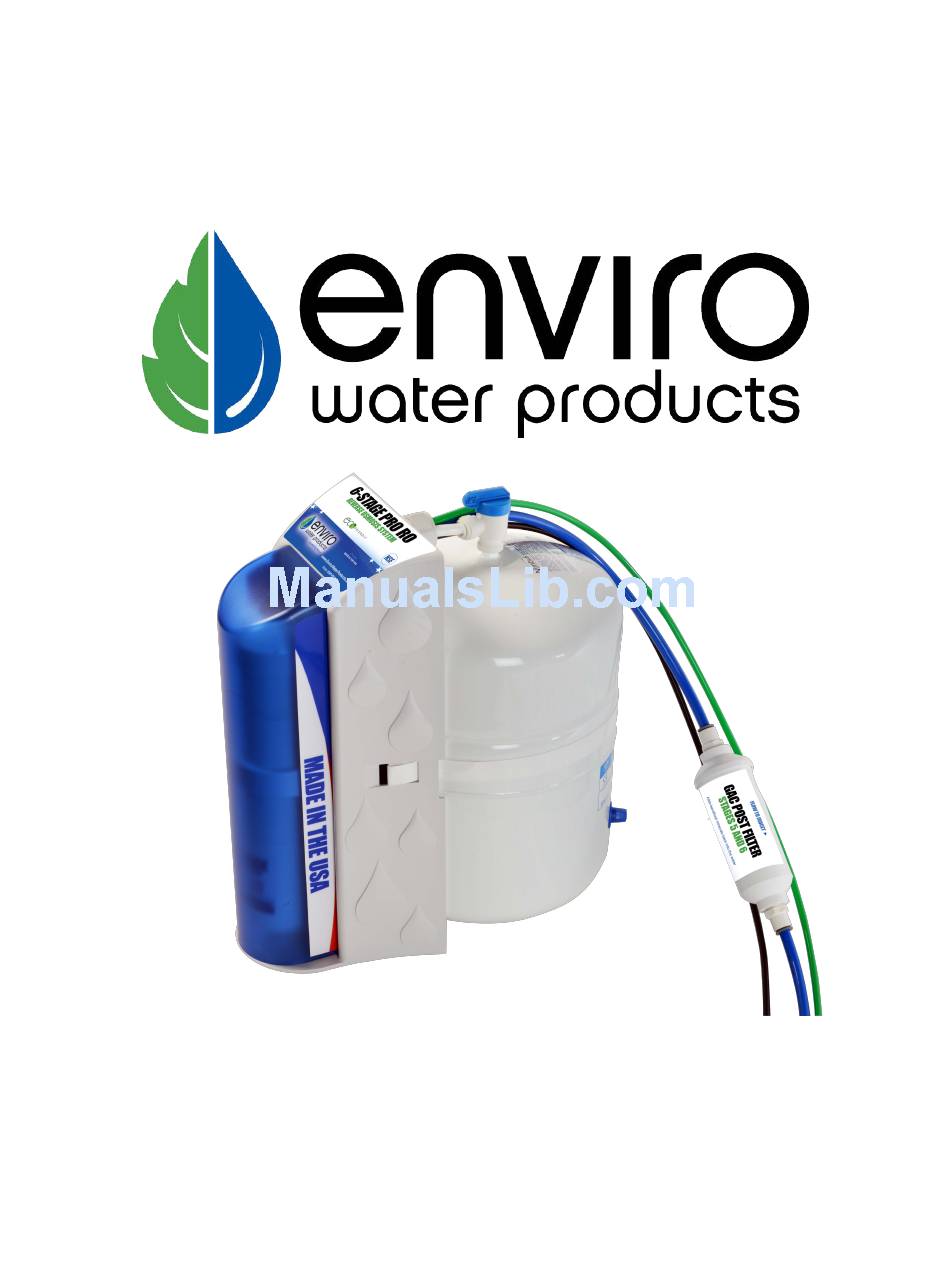

  • Page 1 PRO-RO 6-Stage Reverse Osmosis System Rev: 0615...

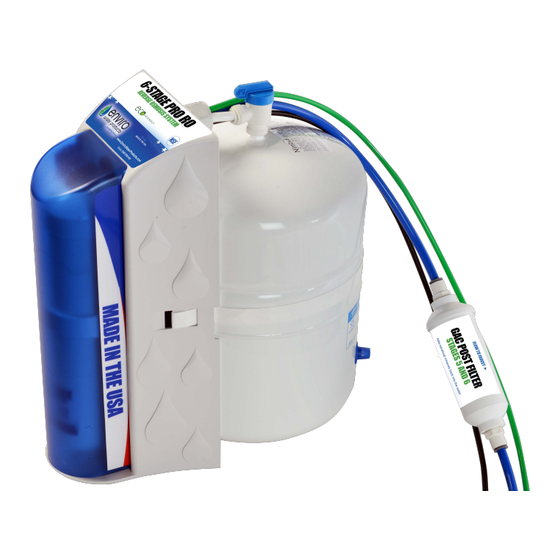

  • Page 3 Introduction to the PRO-RO Congratulations on your purchase of the PRO-RO six stage reverse osmosis system. The PRO-RO features a four-stage prefilter, membrane and postfilter housed in a single cartridge. The final two stages consist of a granular activated carbon polishing filter and a calcite remineralizing filter.

  • Page 4: Limited Warranty

    Limited Warranty This Limited Warranty extends to the original purchaser of the system only. This warranty covers all Manufacturer-supplied items only that prove to be defective in material, workmanship or factory preparation. This warranty covers parts only; all labor is excluded from this war- ranty, including, but not limited to, services related to the removal, replacement, installation, adjustment, maintenance and/or repair of the unit or its components items.

  • Page 5: System Specifications

    System Specifications Dimensions and Weight A. Product water storage tank B. Tank valve C. Tank tubing (3/8” white) D. Air-gap faucet E. Drain connection assembly F. Drain tubing (3/8” white) G. Quick connect fitting H. Drain tubing (1/4” black) Faucet tubing (3/8” blue) Four-stage desalinator K.

  • Page 6: Faucet Installation

    Faucet Installation 1. Drill a 1 1/4" hole for installation of the air-gap faucet on your countertop. If you already have a hole large enough, please see step 2. 2. Place the RO unit underneath the sink in the area you plan on having it for the final installation.
  • Page 7 Feed and Drain Connection Feed Connection 1. Locate and turn off the angle stop valve on the cold water line feeding the sink. This valve will usually be located under the sink on the pipe coming out of the wall. 2.
  • Page 8 System Activation and Flushing System Activation and Inspection 1. Check all tubing connections to ensure they are firmly seated. CHECK TO SEE THAT THE CARTRIDGE RETAINER CLIP IS PROPERLY ENGAGED AND LOCKED. Failure to keep the retaining clip in place will result in accidental leaks and flooding. 2.

  • Page 9: Installation Checklist

    Installation Checklist 1. System is located where it will not be subject to physical impacts or rough contact by heavy objects. 2. Feed water pressure to the unit is no less than 40 psi and no greater than 80 PSI. 3.

  • Page 10: Maintenance

    Maintenance Cartridge Replacement 1. Close the small shut-off valve on the feed valve assembly. 2. Close the tank shut-off valve. 3. Open the dispensing faucet to relieve system pressure. Close dispensing faucet when flow has stopped. Remove the cover from the front of the system. Remove the retaining clip. Pull the cartridge off the system evenly at top and bottom.
  • Page 11 Please fill out the following information at the time of installation. Save for future reference. Model: Date Code: Install Date: Sold by: Installed By: Service Center Phone Number: www.envirowaterproducts.com...
