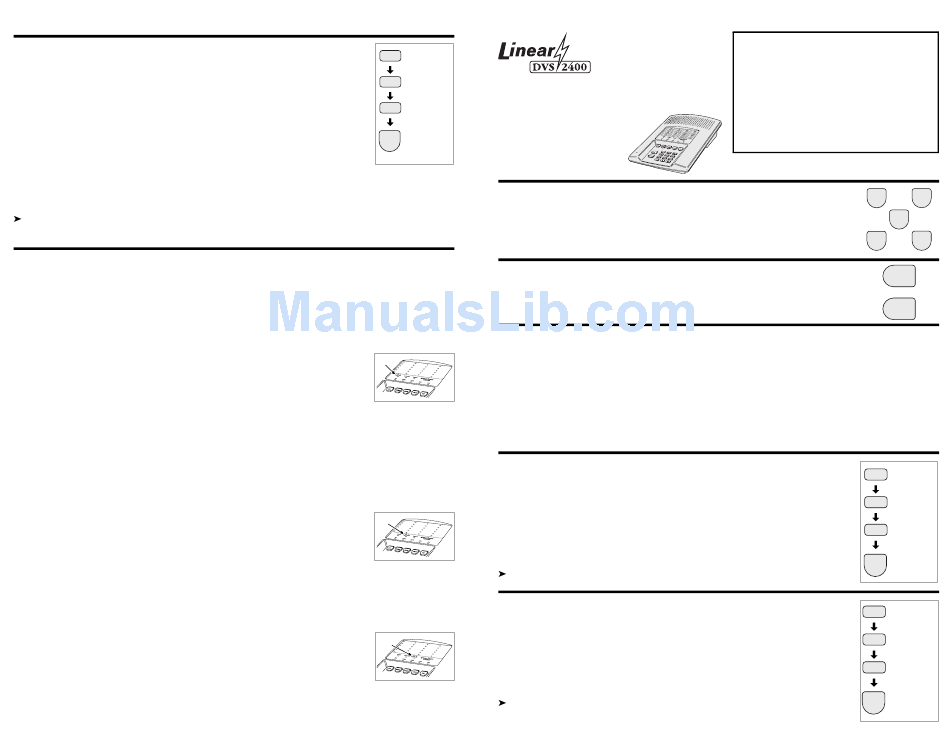

Linear Security DVS 2400 User Manual

TEST MODE
• Even though this is a self-monitoring supervised system, the National Burglar and Fire Alarm
Association recommends that all security systems should be tested manually on a regular basis.
• The Console must be in Off Mode before going to Test Mode.
• Switch the Console into Test Mode by entering a user code and pressing [ TEST ].
• When the system is switched to the Test Mode, the Console will sound a "Gong" and four "Beeps".
• Holding down the [ TEST ] button will light all of the Console's indicators.
• The sensor status lights will flash for each sensor programmed into the Console.
• Go to each sensor and press its test button or open and close the protected opening.
• To test the wireless keypad, press the [ (A) ] key.
• The Console will make a "bing" sound as each sensor is tested.
• As each sensor is tested, the sensor status light for the sensor will stop flashing and return to showing
the current status of the sensor.
• Continue testing until there are no flashing status lights.
NOTE: If the Console is left unattended in Test Mode, it will automatically switch back to Off
Mode after 3 minutes.
SYSTEM TROUBLE INDICATIONS
• The DVS-2400 Console is a self-monitoring supervised wireless system.
• If the Console detects a problem with any of the supervised system sensors or backup battery, it
will display the appropriate trouble indication and, if monitored, report the trouble to the Central
Station through the communicator (depending on communicator programming).
CONSOLE LOW BATTERY
• The Console constantly charges and monitors the optional backup battery (if installed).
• If the backup battery condition is abnormal, the Console's POWER light will indicate the
trouble.
• The POWER indicator normally glows when AC power is on.
• With a charged backup battery installed, if the Console looses AC power, the POWER
indicator will dim as the Console runs on the backup battery.
• If the backup battery is low, recharging, or not installed, the POWER indicator blinks when
AC power is present.
• If the AC power is off and no backup battery is installed, the POWER indicator will be off (in
this case the system has no power and is disabled).
• Normal battery life for the type of backup battery used in the Console is 5-7 years. If the
battery does not take a charge in 72 hours, it should be replaced.
SENSOR LOW BATTERIES
• When the BATTERIES indicator on the Console blinks, one or more sensors have a low
battery.
• Press [ ∗ ] for one second to view sensor status. Sensor status indicator for any sensor with a
low battery will light along with the BATTERIES indicator. Any trouble indications will follow
during the five second status cycle.
• Replace the sensor's battery as described in their instructions.
• Switch to Test Mode after replacing the sensor battery and completely test the system (see
Test Mode). Switching to Test Mode clears the low battery indication.
SENSOR RADIO TROUBLE
• When the TROUBLE indicator blinks, one or more sensors have not reported status during
the eight hour status time window.
• Press [ ∗ ] for one second to view sensor status. The sensor status indicator for any sensor
that has not reported in will light along with the TROUBLE indicator. Any low battery
indications will follow during the five second status cycle.
• Switch to Test Mode after servicing the sensor and completely test the system (see Test
Mode). Switching to Test Mode clears the trouble indication.
Copyright © 1996 Linear Corporation
YOUR
USER
SUPERVISED WIRELESS
CODE
SECURITY CONSOLE
USER'S GUIDE
1 GONG
TEST
& 4 BEEPS
CONSOLE OPERATING MODES
• You must enter your secret code before disarming the system (Off or Chime Mode).
• To select Home, Away, or Test Mode, enter your user code and press the desired mode button.
• You can "Quick Arm" to Chime, Home, or Away Mode by holding the desired mode key down for
two seconds.
24-HOUR PROTECTION BUTTONS
• The FIRE and EMERGENCY buttons on the Console and the wireless keypad are always active.
Press and hold the appropriate button for three seconds to sound an instant alarm. Disarm the
Console to Off or Chime Mode to silence the alarm.
EVACUATION PLANNING
• For systems that include fire protection, UL requires that the following information be available to the users of the system.
POWER
INDICATOR
• Draw up a floor plan showing two exits for each room.
• Familiarity with alarm signals.
• Escape fast. No stopping for packing.
• Emphasize that no one is to return to a burning house.
• Periodic rehearsal is to be conducted.
OFF MODE
• Use this mode to disarm the burglary portion of the system.
• Switching to Off Mode stops any alarms in progress.
• The 24-hour buttons are still active in Off Mode and can be triggered by pressing the [ FIRE ] or
[ EMERGENCY ] button.
BATTERIES
INDICATOR • Switch to Off Mode by entering a user code, then press [ OFF ].
• When the system is disarmed to Off Mode, the Console will sound one "Gong".
• If an alarm has occurred, multiple beeps will sound after disarming and the sensor light for the
sensor(s) that caused the alarm will flash.
NOTE: In Off Mode, protected doors and windows cannot trigger the burglary alarm.
CHIME MODE
• Chime Mode is for monitoring entries and exits without causing alarms.
• Use Chime Mode as an "automatic door chime" when at home.
TROUBLE • Opening any protected door or window causes the Console to sound a "ding-dong".
INDICATOR
• Select the Chime Mode by entering a user code, then press [ CHIME ].
• You can enter Chime Mode from Off Mode by holding down [ CHIME ] for two seconds.
• When the system is switched to the Chime Mode, the Console will sound a "Gong" and one "Beep".
• Going to Chime Mode disarms the system and stops any alarms in progress.
NOTE: In Chime Mode, protected doors and windows cannot trigger the burglary alarm.
214066 A
SECURITY
The following procedures are to be discussed with the family:
• Status of bedroom doors.
• Crawling and holding breath.
• Meet at designated outdoor spot.
• Fire department notification from a neighbor's phone.
• Testing of door during a fire and use of alternate
escape route if door is hot to touch.
YOUR INSTALLING ALARM DEALER
OFF CHIME
TEST
HOME AWAY
FIRE
EMERGENCY
YOUR
USER
CODE
OFF 1 GONG
YOUR
USER
CODE
1 GONG
CHIME
& 1 BEEP
