CHORUSAURUS
Combining analog bucket-brigade technology with the precision and
flexibility of modern circuits, the Chorusaurus
chorusing effects that won't compromise your low end. Using intuitive
and flexible controls, bassists can dial in that perfect chorus effect.
Features:
• Uses analog bucket-brigade technology
• Independent adjustment of all chorus effect parameters
• Stereo or Mono output
• Gig-saver bypass (signal passes even if your battery dies)
• Heavy duty steel construction
• Three-year limited warranty
• Power: 9 volt battery or optional power supply
®
produces lush, organic
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHORUSAURUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aguilar CHORUSAURUS

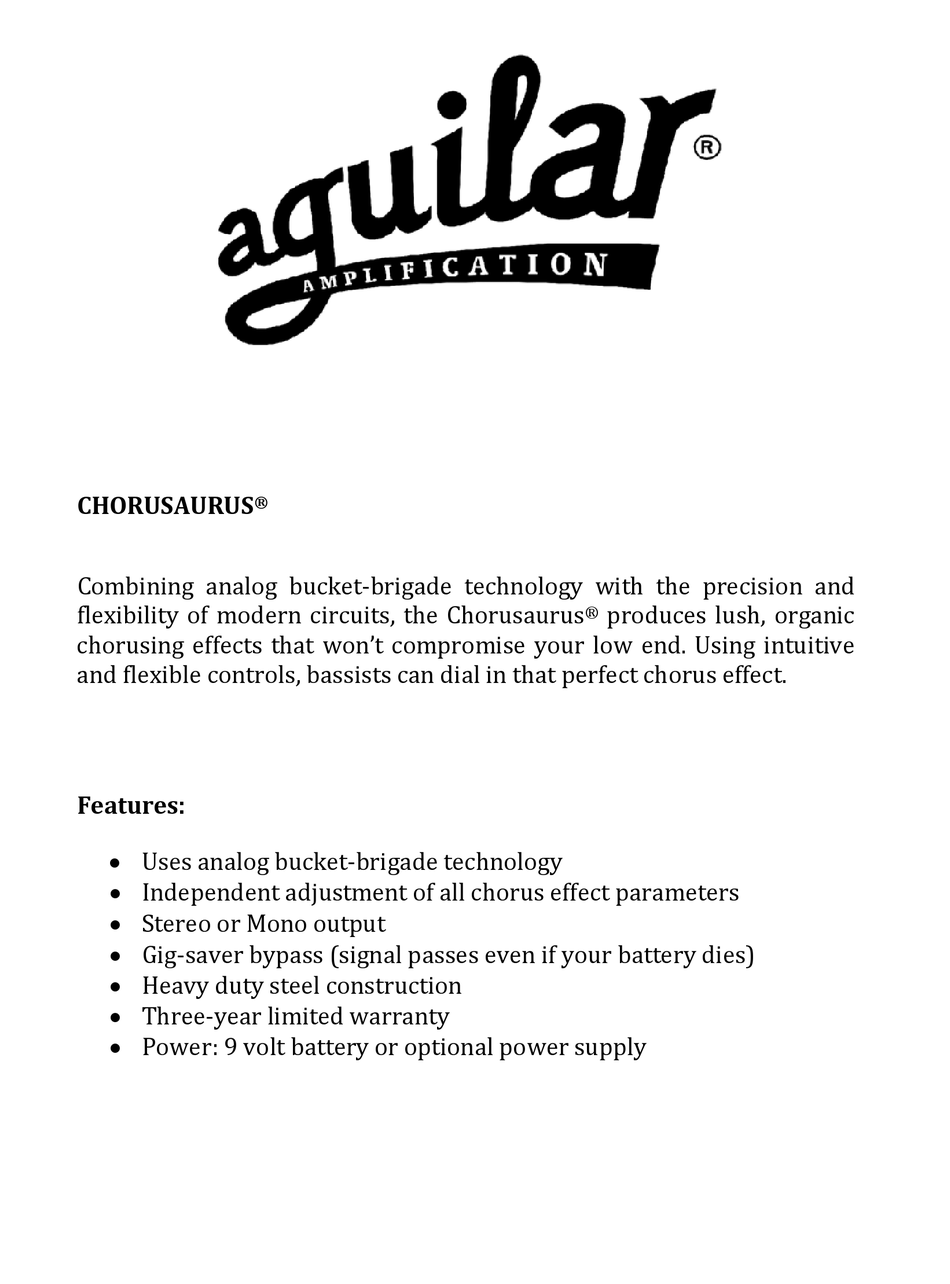

  • Page 1 CHORUSAURUS ® Combining analog bucket-brigade technology with the precision and flexibility of modern circuits, the Chorusaurus produces lush, organic ® chorusing effects that won’t compromise your low end. Using intuitive and flexible controls, bassists can dial in that perfect chorus effect.
  • Page 2 Owner’s Manual Manual Version 1.1 I. Functions A. Top Panel: BLEND: Controls the mix ratio between clean and modulated signal. The most dramatic chorusing effect is achieved when the knob is set to the 12:00 position (50:50 ratio). When this knob is fully counterclockwise the mix ratio is 90:10 in favor of clean signal.
  • Page 3 C. Specifications: Current consumption:………………………..12mA Input impedance: ..........1MΩ (Effect On) Output impedance: .........1 KΩ External DC Power: ………………………..9-10VDC, center terminal negative II. Sample Settings Please visit our website, www.aguilaramp.com, for sample settings. III. How to change the battery This operation can be done quickly and easily with a standard #2 Philips screw driver! The battery is easily accessible by loosening the screw on the bottom of the unit.
  • Page 4 You are responsible for all shipping charges. You must ship the unit to us freight prepaid. We will return the unit to you freight collect. Aguilar Amplification LLC is not responsible for shipping damage, either to or from our service center. Claims must be filed with the carrier.
