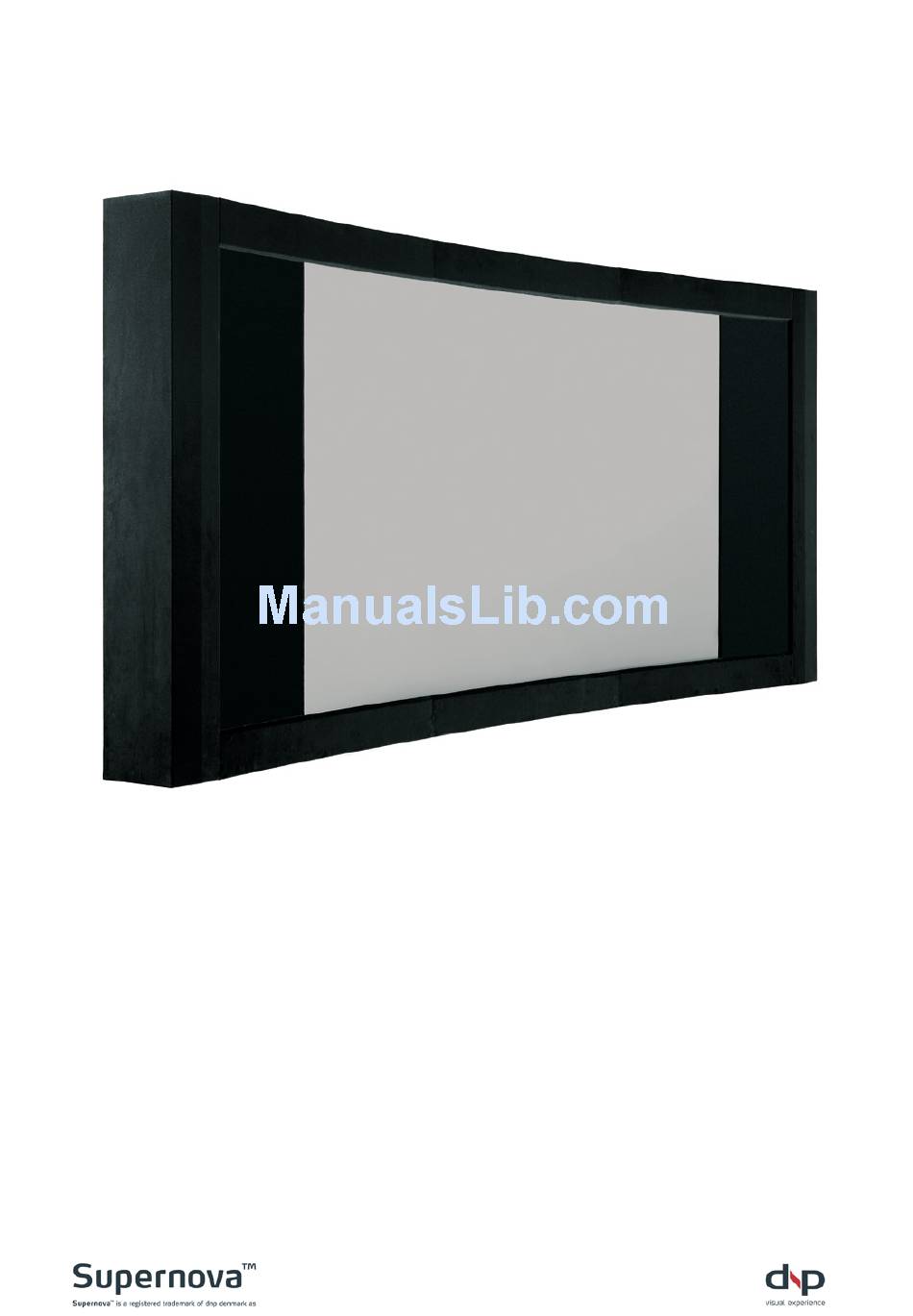

- Page 1 ™ Supernova Epic User Guide / Service Guide...
-
Page 2: Table Of Contents
Contents Section Page A Welcome ................3 B Important Safety Instructions ..........4 C Instructions de sécurité importantes ........5 D Remote control ..............7 E Powering up ................9 F Communication ..............10 G Cleaning ................11 H Troubleshooting ..............12 I Sales &... -
Page 3: A Welcome
The ultimate in home theatre screens, the Supernova Epic features a curved screen surface to enhance the perceived depth and uniformity of the image. The result: a high-quality, dynamic viewing experience, day or night. -
Page 4: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Install the screen against a wall. If the screen is to be installed out from the wall a backside protection cover must be used Use the enclosed tip-over safeguard Do not scratch or bend the screen material during handling. -
Page 5: C Instructions De Sécurité Importantes
Instructions de sécurité importantes Lire ces instructions. Conserver ces instructions. Tenir compte de tous les avertissements. Suivre toutes les instructions. Ne bloquer aucune ouverture de ventilation. Installer conformément aux instructions du fabricant. Installer l’écran contre un mur. Si l’écran n’est pas installé contre un mur, une protection arrière doit être installée. - Page 6 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. CAUTION: Changes or modifications not expressly approved by dnp denmark as could void the user’s authority to operate this equipment according to part 15 of the FCC rules.
-
Page 7: Remote Control
Remote control The remote is factory programmed for Supernova Epic. NOTE! Be aware when installing the screen close to equipment using the same IR communication protocol. Commands may activate other Buttons for electronic components. Supernova Epic Buttons for Supernova Flex Batteries Remove rear cover and replace with 2x 3V CR2032 coin cell batteries. - Page 8 Button: Function: Press once to close curtains. Press once to move curtains to 4:3 format. Press once to move curtains to 16:9 format. Press once to move curtains to 1.85:1 format. Press once to move curtains to 2.35:1 format. Press once to move curtains to 2.40:1 format. Press and hold to move left curtain left.
-
Page 9: E Powering Up
Powering up Plug the power cord into the wall socket. a. After powering on, press any format on the remote. b. First, the screen automatically calibrates by opening fully. c. Then, moves to the desired aspect ratio. d. There will be a delay before screen movement occurs after pressing the button. -
Page 10: F Communication
Communication IR remote control The screen is operated by the standard protocol, RC5. Please see below for details: The illustration shows a typical pulse train of an RC5 message. This example transmits command 0x35-53 to address 0x05-5. Description LCD remote RC5 address RC5 command Close curtains... -
Page 11: G Cleaning
Never use detergent solutions that will leave a film or layer on the surface. Also, never rub the screen hard and persistently to remove stains, as this could cause permanent damage to the screen surface. Should these treatments prove inadequate, please contact your local dnp distributor or dnp denmark. -
Page 12: H Troubleshooting
Troubleshooting The screen will not move: Check Solution Is the power cord connected? Plug into screen and wall socket. Is screen already at fully open Screen cannot move beyond 2.40:1 format position? position. Move inwards. Is screen already at fully closed Screen cannot move further inwards. -
Page 13: I Sales & Delivery Terms
3. PAYMENT. Payment shall be made by the customer at latest on the due date fixed in dnp denmark's invoice. In case of late payment dnp may add interest on the sum owing at the rate of 2% per running month from the due date. Unless otherwise agreed in writing, all deliveries will be made when dnp denmark has received payment from the customer. - Page 14 (1) year from date of invoice without extra cost for the customer make replacements, repair or redelivery of the parts with defects due to defective materials or workmanship.
-
Page 15: J Service Contact
Service contact Contact place of purchase Date of purchase: Where purchased: US hotline: +1 (619) 600 2892... -
Page 16: K Manufacturer Information
Manufacturer information dnp denmark as Tel: +45 46 16 51 00 Skruegangen 2 Fax: +45 46 16 52 00 DK-2690 Karlslunde M@il: dnp@dnp.dk Denmark www.dnp-screens.com www.dnp-screens.com...
