Desa (V)C42 Installation Instructions Manual

Hide thumbs Also See for (V)C42:
Table of Contents

Advertisement

Quick Links

(V)
SAVE THIS BOOK
This book is valuable. In addition to instructing you on
how to install and maintain your appliance, it also
contains information that will enable you to obtain
replacement parts or accessory items when needed.
Keep it with your other important papers.
WARNING: Always leave glass doors fully opened or fully closed when operating this fireplace.
2701 INDUSTRIAL DRIVE
P.O. BOX 90024
BOWLING GREEN, KY 42101-9004
www.desatech.com

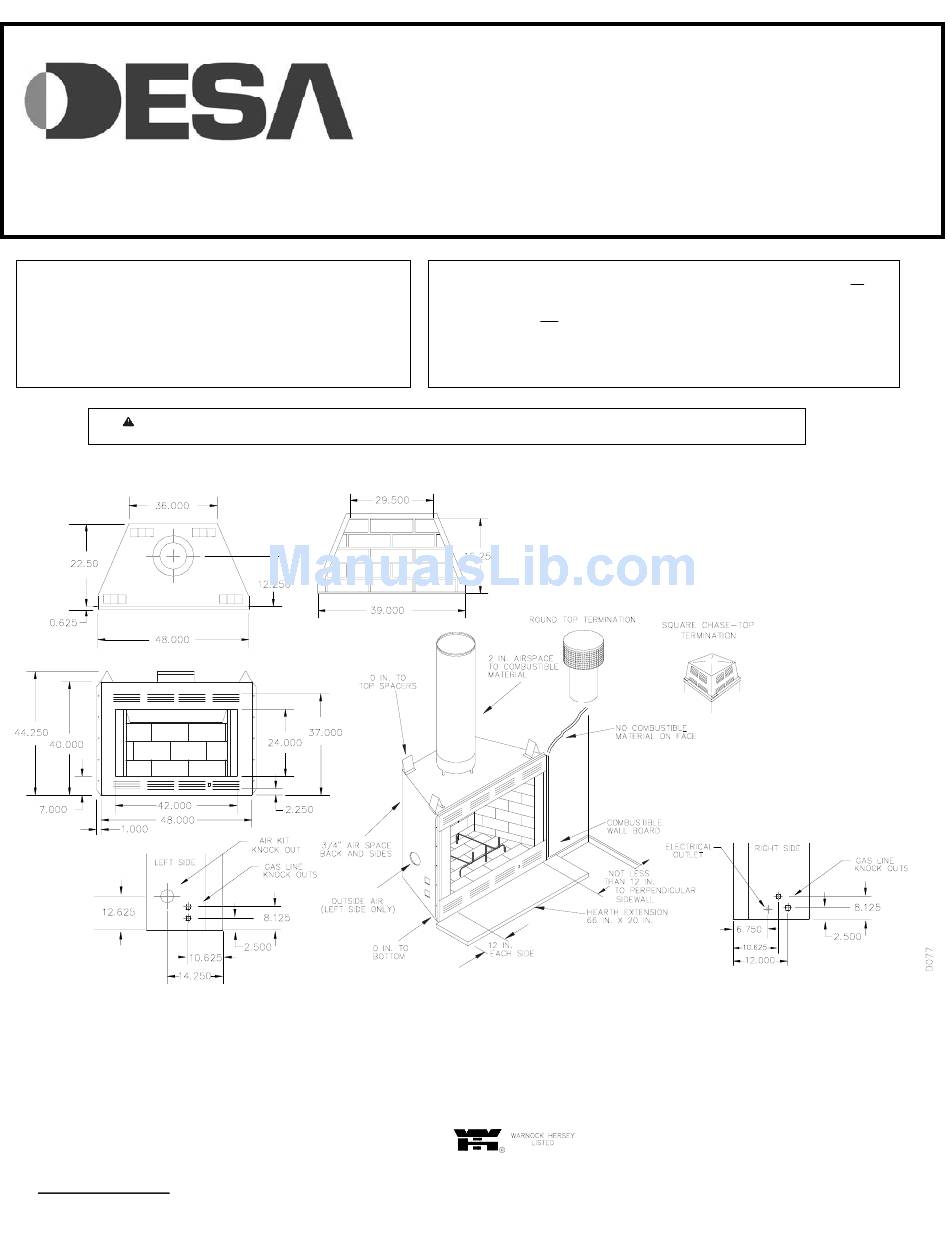

(V)C42I
(V)C42H
42" smooth face with insulation & Herringbone refractory
(V)C42L, CWC42C
(V)C42LI
(V)C42LH
42" circulating with insulation & Herringbone refractory

INSTALLATION INSTRUCTIONS

This fireplace is approved for use as a wood burning fireplace or for
use with a vented gas log approved to ANS Z21.60, Z21.84 or RGA
2-72 standards or for use with a vent-free gas log heater approved to
ANS Z21.11.2 standard. A DESA hood must be installed when
using a vent-free gas log heater (see Accessories, p. 12).
(V)C42
42" smooth face
42" smooth face with insulation
42" circulating
42" circulating with insulation
ALL DIMENSIONS IN THIS MANUAL ARE IN
INCHES UNLESS OTHERWISE SPECIFIED
P/N 107826-01
REV F
3/03
