Protab PTBPTW81QC8 Quick Start Manual

Protab PTBPTW81QC8 Quick Start Manual

Quad core 8 inch

Advertisement

QUAD CORE 8 INCH
MODEL NO: PTBPTW81QC8

QUICK START GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTBPTW81QC8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Protab PTBPTW81QC8

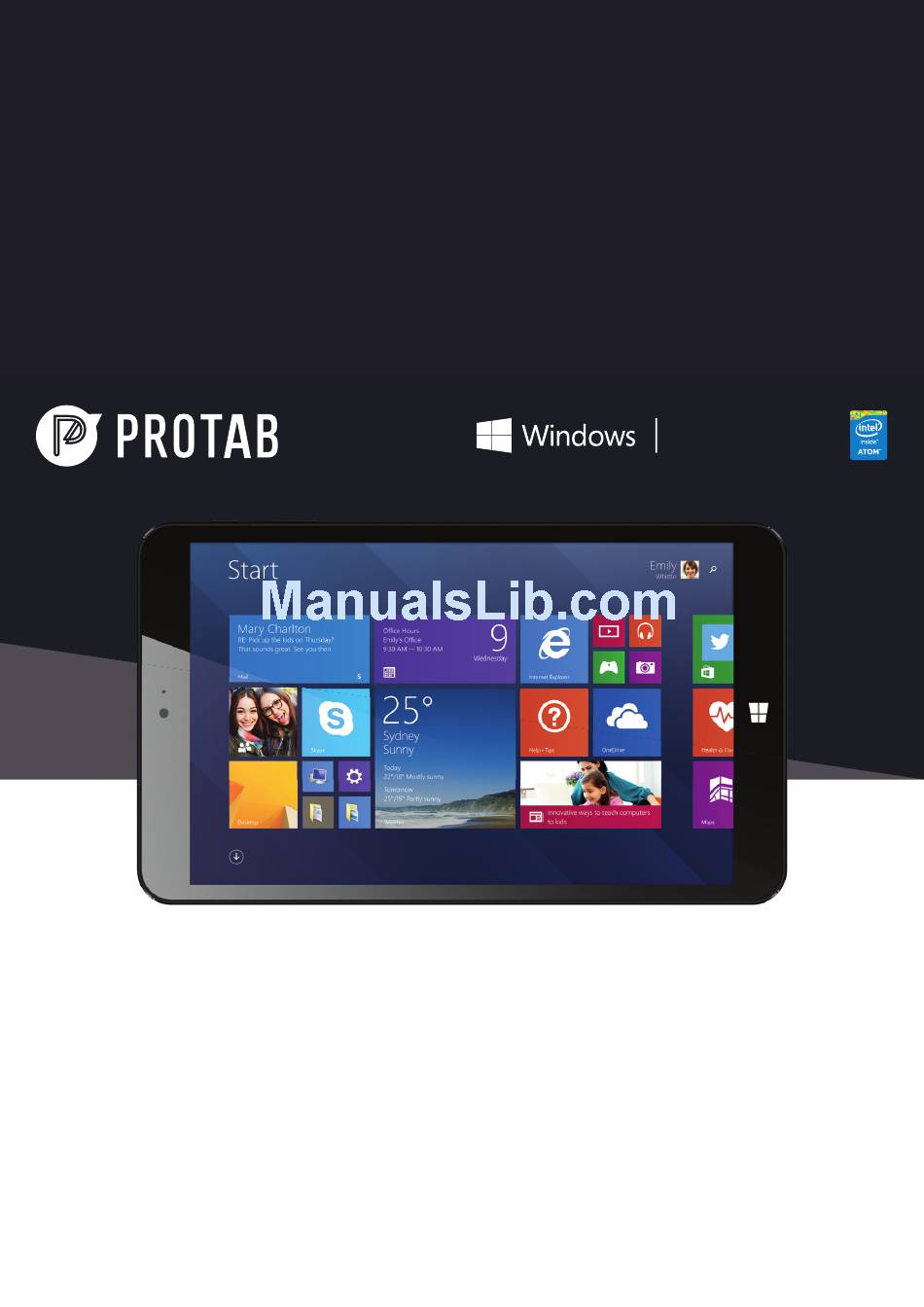

  • Page 1: Quick Start Guide

    QUAD CORE 8 INCH MODEL NO: PTBPTW81QC8 QUICK START GUIDE...
  • Page 2: Table Of Contents

    Table of Contents 1. What’s in the Box………………………………………… .1 2.Tablet Parts…………………………………………..………1 3.Getting Started……………………………………………… 2 4. The Start Screen………………………………………………3 5. Getting Around……………………………………………….4 6. Apps…………………………………………………………..5 7. Charm Menu………………………………………………….6 8. Using Two Apps at Once……………………………………..7 9. Factory Reset………………………………………………….7 10. Safety Information…………………………………………..8 11. Specifications………………………………………………..9...
  • Page 3: What's In The Box

    1. What’s in the Box Please check your box for the following items: - Tablet - User manual - Warranty card - Power adapter - OTG adapter 2. Tablet Parts ○ 1 Volume up/down button ○ Power button ○ Front and rear cameras ○...
  • Page 4: Getting Started

    3. Getting Started Charging the Battery The tablet has a built-in rechargeable Li-polymer battery. 1. To charge, plug the AC power adapter into the micro USB port and plug the other end into a power source. 2. The tablet can still be used while the battery is charging. Power ON/OFF Press and hold the power button until the tablet turns on.
  • Page 5: The Start Screen

    4. The Start Screen 1. Touch the white Start menu icon next to the screen to visit the Start screen. You can also swipe in from the right edge of the screen and choose Start. 2. Press any tile on the Start screen to start an app. Some apps require you to create or log into a Microsoft account before they will work.
  • Page 6: Getting Around

    5. Getting Around To return to your previous app, swipe in from the left edge of the screen. To see a list of all open apps, swipe in from the left edge, keep your finger on the screen, and slide your finger back toward the left edge.
  • Page 7: Apps

    6. Apps To see all your apps, go to the Start screen and slide your finger up. To place one of these apps on the Start screen, press and hold the icon for about one second. Choose Pin to Start. To remove an app from the Start screen, press and hold the icon for about one second.
  • Page 8: Charm Menu

    7. Charm Menu Swipe in from the right edge of the screen to see the five charm icons: Search, Share, Start, Devices, and Settings. Search the web and the tablet. Share something via email or a social network. Return to the Start screen. If you are already on the Start screen, this icon returns you to the last app you used.
  • Page 9: Using Two Apps At Once

    8. Using Two Apps at Once 1. To open two apps on the screen at the same time, first open one app. Then swipe in from the left edge, keep your finger on the screen, and slide your finger back toward the left edge to see a list of all open apps.
  • Page 10: Safety Information

    10. . Safety Information 1. Never use your device while driving or operating a vehicle. 2. In some circumstances your device may cause interference with other devices. 3. Switch off your device in an airplane, in an area with a potentially explosive atmosphere, or in any other area where its use is prohibited or it may cause interference or danger.
  • Page 11: Specifications

    11. Specifications Display: 8-inch IPS 10-point touch screen, resolution 1280*800 CPU: Intel Baytrail-T Z3735F Quad-Core Internal Storage: 16GB RAM: 1GB Camera:2MP Front Camera and 2MP Rear Camera Expansion Storage: Micro SD card up to 64GB Built-in Wi-Fi: 802.11 B/G/N AC Adapter: DC 5V-2A Operating System: Windows 8.1 Battery: 4200 mAh Li-Ion...
  • Page 13 Visage Telecom Pty Ltd | PO Box 802, Mount Waverley VIC 3149 1300 889 158 | ABN: 15 136 057 531 PROTABELECTRONICS.COM.AU Pendo Industries Pty Ltd PO Box 827, Mount Waverley VIC 3149 1300 275 645 www.pendo.com.au...
