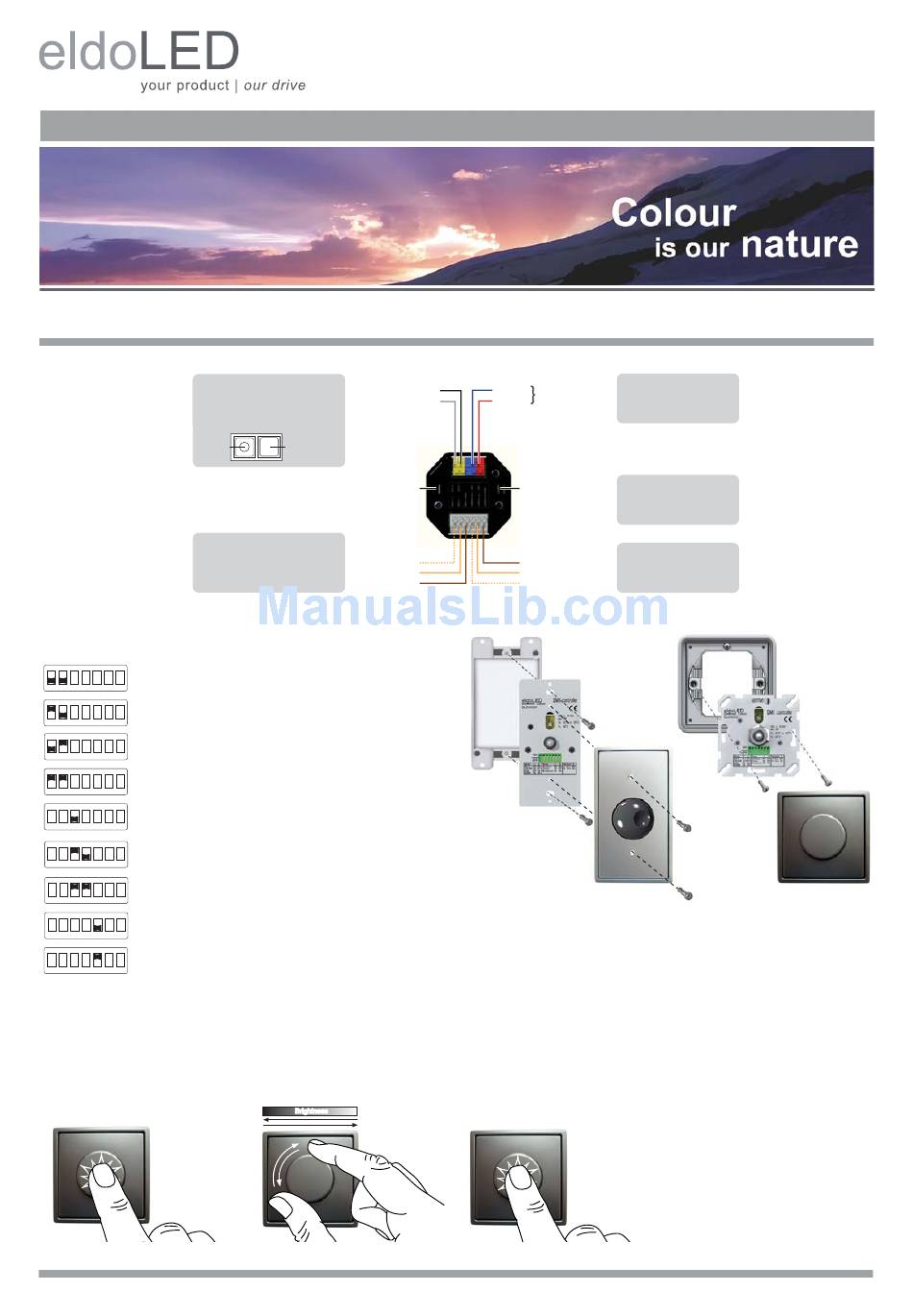

eldoLED DimWheel Colour Quick Start Manual

Quick Start Guide DimWheel Colour
How to connect, configure, mount and operate your DimWheel

1. Connecting your DimWheel

Show mode
When operating DimWheel in show
mode, you can connect a momentary
action switch to the 'Ext in' connectors
for show selection (optional).
DimWheel
ShowMaster
To upload show sequences you have
created with ShowMaster, connect your
TOOLbox to the DimWheel's 'DMX in'
connectors (optional).

2. Configuring your DimWheel

Configure your DimWheel by setting the DIP switches on the front:
O N
1-channel mode for general white lighting applications
1 2 3 4 5 6 7
O N
2-channel mode for colour temperature control
1 2 3 4 5 6 7
O N
3-channel mode for full colour (RGB) applications
1 2 3 4 5 6 7
O N
4-channel mode for full colour (RGB-W/A) applications
1 2 3 4 5 6 7
O N
colour mode
1 2 3 4 5 6 7
O N
show mode (chase)
1 2 3 4 5 6 7
O N
show mode (broadcast)
1 2 3 4 5 6 7
O N
8-bit network resolution
1 2 3 4 5 6 7
O N
16-bit network resolution
1 2 3 4 5 6 7
DIP switch 6 and 7 are non-influential.

4. Operating your DimWheel

Turn the light on
More product documentation and eldoLED's terms and conditions are available at www.eldoled.com.
Ext in +
Ext in -
Show
Selection Switch
Strain relief
DMX in +
DMX in -
DMX in shield
Change brightness
Brightness Brightness
©
2011 eldoLED. All rights reserved. V2.2
Power
VDC - 12-32V
Connect the DimWheel to a
VDC + DC IN
12-32V DC, SELV equivalent
power supply.
Strain relief
Strain relief
Recommended: Fixate wires
with tie-wraps that are looped
through indicated holes.
DMX
LedSync out shield
Connect your DMX network to
LedSync out -
the DimWheel's 'LedSync out'
LedSync out +
connectors.

3. Mounting your DimWheel

The DIP switches remain accessible after installation. When carrying out
changes in the DIP switch settings, turn the DimWheel off and on again (by
pressing the knob twice) to activate the new settings.
The DimWheel is compatible with most standard faceplates. For UK-style electri-
cal wall mounting boxes (BS4662), you can use the eldoLED faceplate kit with
lightpipe.
Faceplate, wallbox and screws are not included with your DimWheel.
Turn the light off
DimWheel Series
