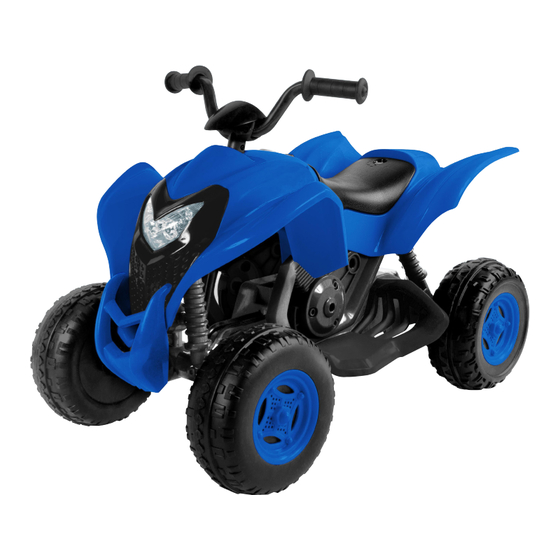

Aria Child PowerSport ATV
Owner's Manual and Assembly Instructions
Blue Model #: W420AC-F02
Red Model #: W420AC-F01
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerSport W420AC-F01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aria Child PowerSport W420AC-F01

  • Page 1 Aria Child PowerSport ATV Owner’s Manual and Assembly Instructions Blue Model #: W420AC-F02 Red Model #: W420AC-F01 Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions.
  • Page 2 Introduction Thank you for purchasing this vehicle from Aria Child. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
  • Page 3 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. DO NOT RETURN THIS ITEM TO THE STORE! Call Customer Service if you need assistance or replacement parts.
  • Page 4 This page is intentionally left blank.

  • Page 5: Table Of Contents

    Table of Contents Safety ............6 Parts ............8 Charging Instructions .......9 Insert the Steering Rod ......10 Attach the Handlebar ......11 Attach the Bumper ........12 Assemble the Front Wheels ....13 Assemble the Rear Wheels .....14 Attach the Seat ........15 Operation Instructions ......16 Battery Removal ........17 Maintenance ..........18 General Care ..........19...

  • Page 6: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 50 lbs. This product contains small parts that are for adult assembly only.
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs.

  • Page 8: Parts

    Parts 1. Handle Bars 2. Seat 3. Body 4. Rim caps (4) 5. Front Wheel (2) 6. Rear Wheel (2) 7. Bumper 8. Snap pin (4) 9. Washers (4) 10. Front Bumper Screw (1) 11. Steering Wheel Screw (1) 12. Steering Wheel Nut (1) 13.

  • Page 9: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the ATV is stopped and turned off. 2. Unlock and remove the seat. 3.

  • Page 10: Insert The Steering Rod

    Insert the Steering Rod 1. Turn the Powersport ATV onto its side to access the underside of the vehicle 2. Locate the curved steering rod 3. Slide the straight end of the steering rod through the hole of the middle steering wheel axle. 4.

  • Page 11: Attach The Handlebar

    Attach the Handlebar 1. Remove the long screw and nut from the handlebar 2. Align the handlebar over the top of the steering rod 3. While holding the steering rod from the bottom, slide the handlebar into the handlebar opening until the holes on the handlebar are aligned with the holes on the steering rod 4.

  • Page 12: Attach The Bumper

    Attach the Front Bumper 1. Slide the bracket on the inside of the front bumper onto the lower support bar on the front of the ATV body 2. Align the hole on the square bracket with the hole on the support body 3.

  • Page 13: Assemble The Front Wheels

    Assemble the Front Wheels 1. Remove the tape from both sides of the front axle to access washers and snap pins 2. Slide the washer onto the axle 3. Slide the front wheel onto the axle. Ensure that the side of the wheel with the slots is facing out 4.

  • Page 14: Assemble The Rear Wheels

    Assemble the Rear Wheels Helpful Tip: If you encounter trouble tting both wheels onto the rear axle, then your rear wheel axle may need to be realigned. Remove both wheels from the rear wheel axle. Using two hands, push down on the rear wheel axle and slide it gently toward the side of the vehicle that...

  • Page 15: Attach The Seat

    Attach the Seat 1. Align the plastic tab on the front of the seat with the groove on the seat compartment 2. Position the back of the seat with the hole on the back of the seat compartment. Make sure that the seat lock on the seat is in the unlock position 3.

  • Page 16: Operation Instructions

    Operation Instructions 1. ON/OFF: Flip the power switch to “On” to turn on the ATV. Flip the power switch to “Off” to turn the ATV off. The ATV should be turned off when not in use to save the battery. 2.

  • Page 17: Battery Removal

    Battery Removal 1. Remove the seat 2. Disconnect the red battery connector from the red engine connector 3. Loosen and remove the screw from the battery strap 4. Slide the battery strap out from the battery strap slot 5. Remove the battery Note: It is not necessary to remove the battery for charging.

  • Page 18: Maintenance

    Maintenance Important Battery and Charger Information Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. Charge the battery for 24 hours before using the vehicle for the rst time.

  • Page 19: General Care

    General Care Regularly inspect all vehicle parts to ensure they are in good working condition. Regularly inspect the charger, cord, plug, and other related parts for damage. Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 24 for more information.

  • Page 20: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 21 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Consumer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 22: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 23: Service And Repairs

    Service and Repairs Do not return this vehicle to the store. If your product requires service, repairs or replacement parts, please contact Aria Child Customer Service. Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@ariachild.com Web: www.ariachild.com...

  • Page 24: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Aria Child, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.
  • Page 25 This page is intentionally left blank.

  • Page 26: Product Registration

    Product Registration Fill out the form below and mail it to: Aria Child, Inc. 680 N. Lakeshore Drive Suite 1214 Chicago, IL 60611 OR ll out the form online at www.ariachild.com We will use the information provided only for your warranty. We will not sell, rent or share your personal information.
