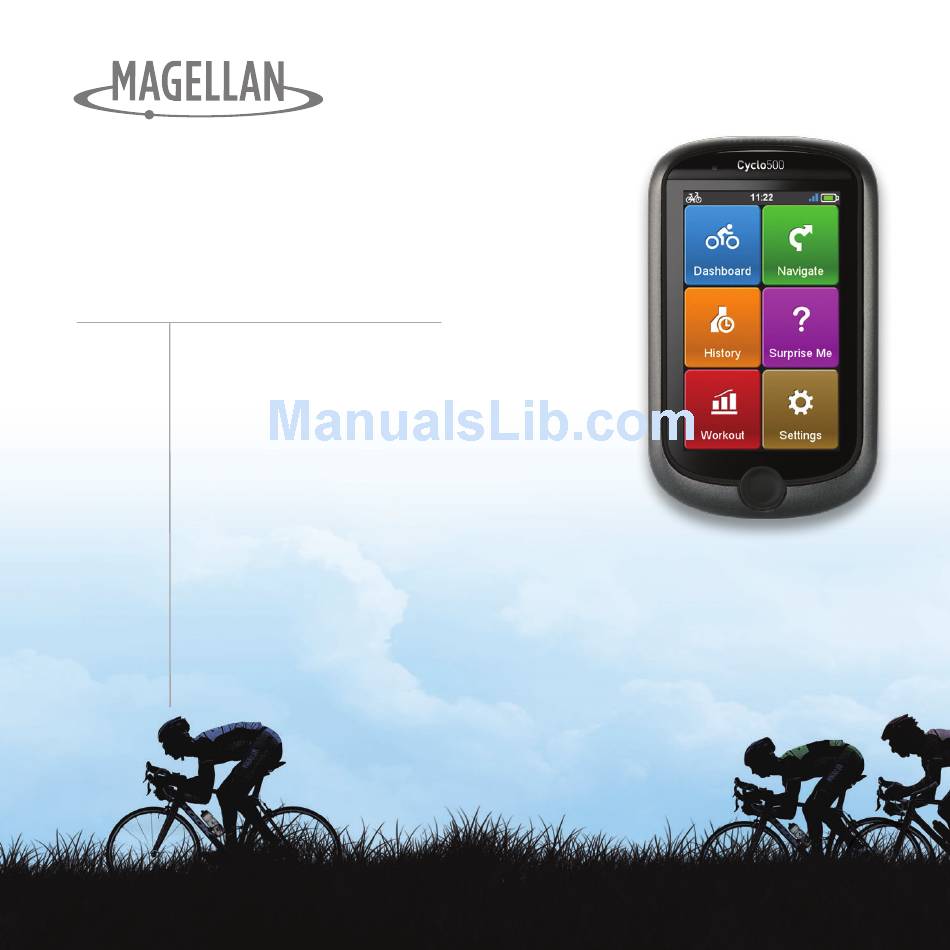

Page 1: Quick Start Guide
Quick Start Guide CYCLO Brought to you by Navman ™ Bicycle computer Improve your position... -
Page 3: Knowing Your Device

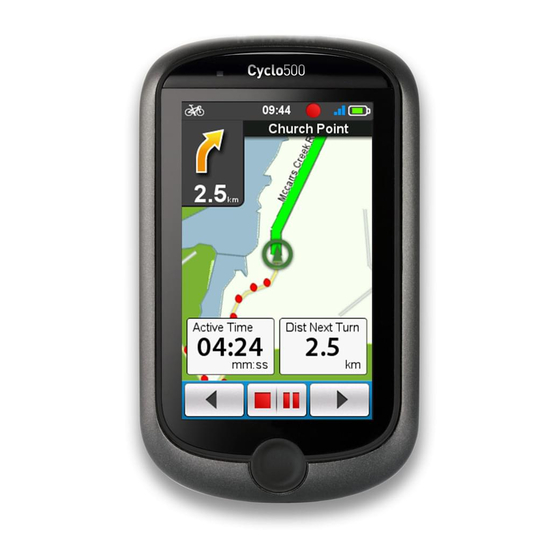

Knowing your device Main unit 1. Charge indicator Indicates the level of internal battery charge: Green - battery full; Orange - battery charging. 2. POWER button Turns your device on and off. 3. Touch screen • Displays the output of your device. • Tap the screen with your fingertip to select menu commands or enter information. 4. Mini-USB connector Connects to the charger or USB cable. 5. Bike mount socket For the device mount. Accessories Your device comes with the following accessories. To use your device on a bike, ensure you use the specific bike mount kit that came with your device. Magellan may provide optional accessories for specific models. Please visit Magellan Cyclo (http://www.magellan.com.au/Products/Fitness) for information. Note: Depending on the specific model purchased, the colour and look of your device and accessories may not exactly match the graphics shown in this document. Power adapter USB cable Bike mount kit... -
Page 4: Getting Started
Getting started Charging the battery Your device has an internal battery that may not be fully charged when you purchase it. You should charge the battery for at least 8 hours before you start using it for the very first time. To charge the battery: • Using a mains power socket • Via the computer Plug the home charger cable into the USB Connect your device to the computer by connector on the back of your device and the using the provided USB cable. mains power charger into the power socket. For more information, see the "Connecting your device to the computer" section. Performing the initial start-up 1. Instructions on how to mount the device and accessories on to a bike can be found at the start of this guide. 2. Press and hold the POWER button for 3 seconds to turn your device on. 3. Follow the prompts to personalise your device. 4. Enter the Startup Key (which is printed on the bottom of the box) and then tap OK to unlock your device. You will only have to do this the first time you use the device. 5. Once your device is turned on, it will search for satellite signals automatically. This may take several seconds depending on the location. -
Page 5: Operating Basics
Operating basics Using the POWER button • For the initial start-up, press and hold the POWER button for 3 seconds to turn on your device. While the device is turned on and you are navigating through the menu screens, press the POWER button briefly to return to the previous screen. • Your device will automatically turn off after 10 minutes (by default*) of inactivity. The Power Off/Cancel screen will pop up and the device will be turned off if you do not make a selection. * Y ou can change the auto power off setting by tapping Main menu > Settings > Screen > Auto Power Off Timer. • Press and hold the POWER button for 3 seconds to pop up the Power Off / Cancel screen. Choose Power Off to turn off the device or Cancel to continue operating the device. Tip: Press and hold the POWER button for 5 seconds to force Power Off if application doesn’t have response. Using the touch screen To operate your device, touch the screen with your fingertip. You can perform the following actions: •... -
Page 6: Main Menu
Main menu The Main menu is your starting place for various tasks, providing quick access to applications and settings. Tap a button to start a task or open another menu. The Dashboard displays the view of functions, including the compass/navigation screen and the workout screen (when a workout has been selected). Start to plan your route by selecting the locations, such as home, address, tracks, POI, coordinate, favorite, etc. Your trip/training can be saved in the history records. When your ride is finished, you can check the history data such as date/time, distance, speed, altitude, etc. Based on distance or time, the device will plan 3 routes for you to choose from. You can set workouts by entering your goals, such as by distance, by time, or by calories. There are various customisation options available to enhance your riding experience. You can customise the system settings, user profiles and more. The System icons Various System icons on the title bar at the top of the screen provide the status information of your device. Depending on your settings, the icons may be different to provide various information of your device. Please note that these icons will not be always displayed during your trip/training. 1. User profile 2. Time display 3. Recording status 4. GPS signal 5. Battery status... -
Page 7: Connecting Your Device To The Computer
1. Turn on the computer. 2. Turn on your device. Connect the mini-USB end of the USB cable to the back of your device and the other end to a USB port on your computer. 3. Select the desired connection type from the pop-up message window: • Connect to PC: Your device will be recognised as two external mass-storage drives: Magellan_system and Magellan_data. You can use Windows File Explorer to copy/move the files from the computer to your device. A USB Connection screen appears to prevent you from using your device. DO NOT delete any files that are pre-installed on the device. Deleting the files can cause the device to crash. Magellan will not be responsible for product quality caused by file deletion. • Charge only: You will be able to continue using your device with the battery in charging mode via the computer. Sharing your experience on the Internet By using Magellan Cyclo, you can easily share your experiences with other cyclists around the world through the Internet when your device is connected to the computer. For more information, visit: http://www.magellan.com.au/Products/Fitness... -
Page 8: Online Support
For more information Online support For 24/7 help and support with Magellan products, visit our Technical Support website at: www.magellangps.com.au (Australian residents); or www.magellangps.co.nz (New Zealand residents) IPX7 The IEC 60529/IPX7 is a European system of test specification standards for classifying the degrees of protection provided by the enclosures of electrical equipment. An IPX7 designation means that the unit withstands immersion in one meter (approx 3ft) of still water for up to 30 minutes. Magellan guarantees this grade provided the battery door and all jack covers are properly and securely closed. Magellan Cyclo is not IPX8 grade; water-pressure such as washing the unit with running water may cause damage to the unit and voids warranty. Declaration of Conformity For regulatory identification purposes, Magellan Cyclo 500 series is assigned a model number of N429. The user needs to switch off the device when exposed to areas with potentially explosive atmospheres such as petrol stations, chemical storage depots and blasting operations. Bluetooth Bluetooth QD ID B020485 WEEE This product must not be disposed of as normal household waste, in accordance with the EU directive for waste electrical and electronic equipment (WEEE - 2002/96/EC). Instead, it should be disposed of by returning it to the point of sale, or to a municipal recycling collection point. - Page 9 5 6 1 5 N 4 2 9 0 0 0 6 R 0 0 Disclaimer Specifications and documents are subject to change without notice. MiTAC Intl does not warrant that this document is error-free. MiTAC Intl assumes no liability for damage incurred directly or indirectly from errors, omissions, or discrepancies between the device and the documents.
