- Page 1 EA015 Active Wall Mounted Speakers Manual and installation instructions...
-
Page 2: Active Wall Mounted Speakers
ACTIVE WALL MOUNTED SPEAKERS Thank you for buying this product. We are confident it will provide you with a long reliable service, but just in case you experience a problem, it is supplied with a 1-year return to base warranty. This warranty and the product to which it relates applies to the original purchaser only and is not transferable (for the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale). -
Page 3: Description And Functions

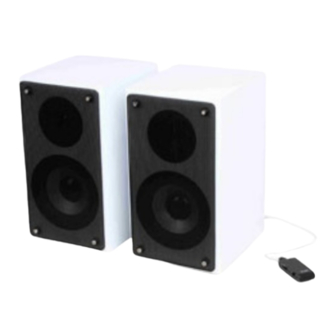

DESCRIPTION AND FUNCTIONS This wall mounted speaker system is suitable for mounting either side of an Interactive whiteboard in a classroom environment Key Features • 30 Watt Amplifier with two audio inputs • The system has secure wall fixings and steel mesh grille as added protection in the Classroom •... - Page 4 Amplifier Panel Passive Spear Rear View Connections – Passive Speaker 1. Bare wire connectors are provided on the passive speaker to enable the passive speaker to be connected up to 10 metres away from the amplifier by cutting the the speaker cable to the length required.
- Page 5 INSTALLATION GUIDE 1. Screw two of the speaker brackets to each of the speakers in the pre-drilled holes provided 2. Select a suitable position for each of the speaker either side of the Interactive whiteboard. 3. Fix one of the wall mounting screws into a suitable wall plug in the wall in a position so that the speaker can be hung on this screw using the central “keyhole”...
-
Page 6: Troubleshooting
OPERATING INSTRUCTIONS Turn the volume control on the remote control to it’s off position. Switch on the power using the on/off switch on the Active speaker rear panel Adjust the volume control to increase the output sound level to your preferred level. WARNING: Always turn the unit on and wait for a moment before turning the volume control up. - Page 7 BS 1363 standard for Electrical Plug alternatively a Europlug to CEE 7/16 plug rated at 3A/230VAC Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2005 (RoHS) Waste Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC). Copyright © 2008 Edis Trading (HK) Limited Protected by European Community Design Rights...
