Summary of Contents for Pacific Living 22.001.xx

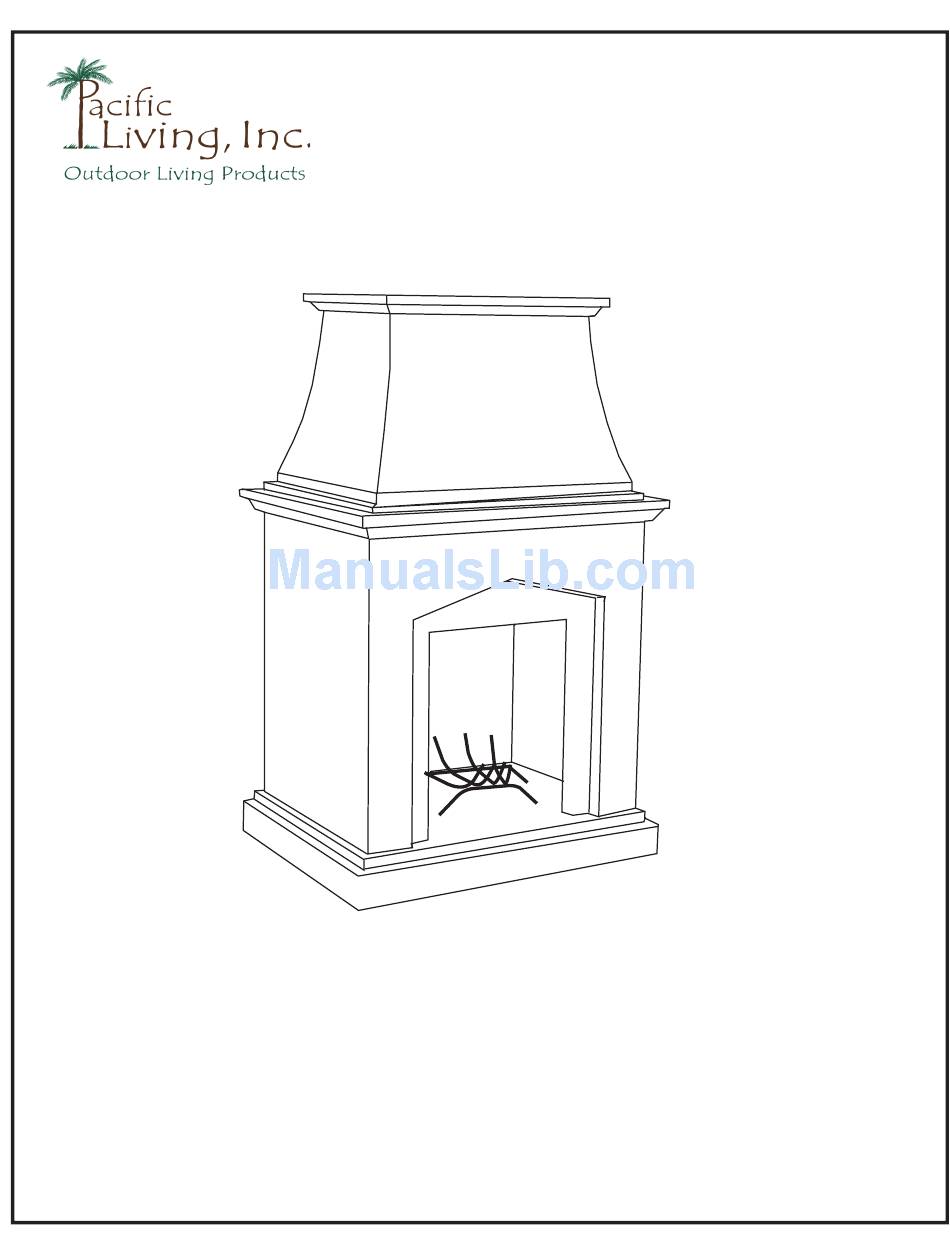

  • Page 1 Assembly Instructions Pedestal Fireplace 22.001.xx Page 1 of 5...

  • Page 2: Assembly Instructions

    Model Number 22.001.xx Assembly Instructions Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Separate, identify, and count all parts and metal hardware. Compare with parts list to be sure all parts are present.
  • Page 3 STEP 1 : Insert Body onto Hearth Do not apply stress to corners. Lift from center Body (A) Hearth (B) STEP 2 : Insulator System Installation INSERT Base Insulator (C) This step will require 2 people. With one person holding the rear top of body and another person raising the body from front. Have the third person insert the liner base into the fire box.
  • Page 4 Side Insulator (D) (D)RIGHT (D)LEFT Back Insulator (E) Important : All side labeled “BACKSIDE” must face inside walls of fireplace body. The unit will not assembly correctly if this is not done. Page 4 of 5...
  • Page 5 STEP 3 : Installing The Lock Clips Hardware: Locking Clips (F) : 2 pcs STEP 4 : Insert Hood onto Body Spark Arrester (D) Hood (G) Grate (E) Page 5 of 5...
