Derale 16769 Installation Instructions

Please read these instructions completely before beginning installation
QTY. DESCRIPTION
1 Thermostat Switch & Probe
1 Thermostat Bracket
1 1 1/2" x 1/2" Foam Pad
2 M4-0.7 Philips Head Bolts

THERMOSTAT SWITCH MOUNTING

1. Using the two M4-0.7 Philips Head Screws, attach the Mounting Bracket to the
Thermostat Switch. (See Diagram #1)
2. Locate the Thermostat Switch in an accessible location near the radiator inlet hose.
Note: The Capillary Tube Probe Cannot be lengthened or cut in any way.
3. Using the Mounting Bracket as a guide, mark and drill two 5/32" holes.
4. Using the two #10 Sheet Metal Screws provided, attach the Thermostat Switch.

THERMOSTAT PROBE INSTALLATION

Making sure the vehicles engine is cold; drain enough coolant out of the radiator so the upper radiator hose can be
removed.
Warning: Coolant is a hazardous fluid, drain into container. Never open radiator cap or attempt to remove hose while
motor is hot.
1. Remove radiator clamp and hose.
2. Insert thermostat probe into radiator hose. (See Diagram #2)
3. Place capillary tube on radiator inlet tube so the probe itself will remain positioned in the hose. Place the foam pad
between the capillary tube and the radiator inlet tube. (See Diagram #2)
4 . Carefully install radiator hose and tighten hose clamp.
Note: It is recommended that a screw type hose clamp is used for correct sealing (See Diagram #3). Factory type
clamps can leak.
5. Double check coolant level, fill as required.

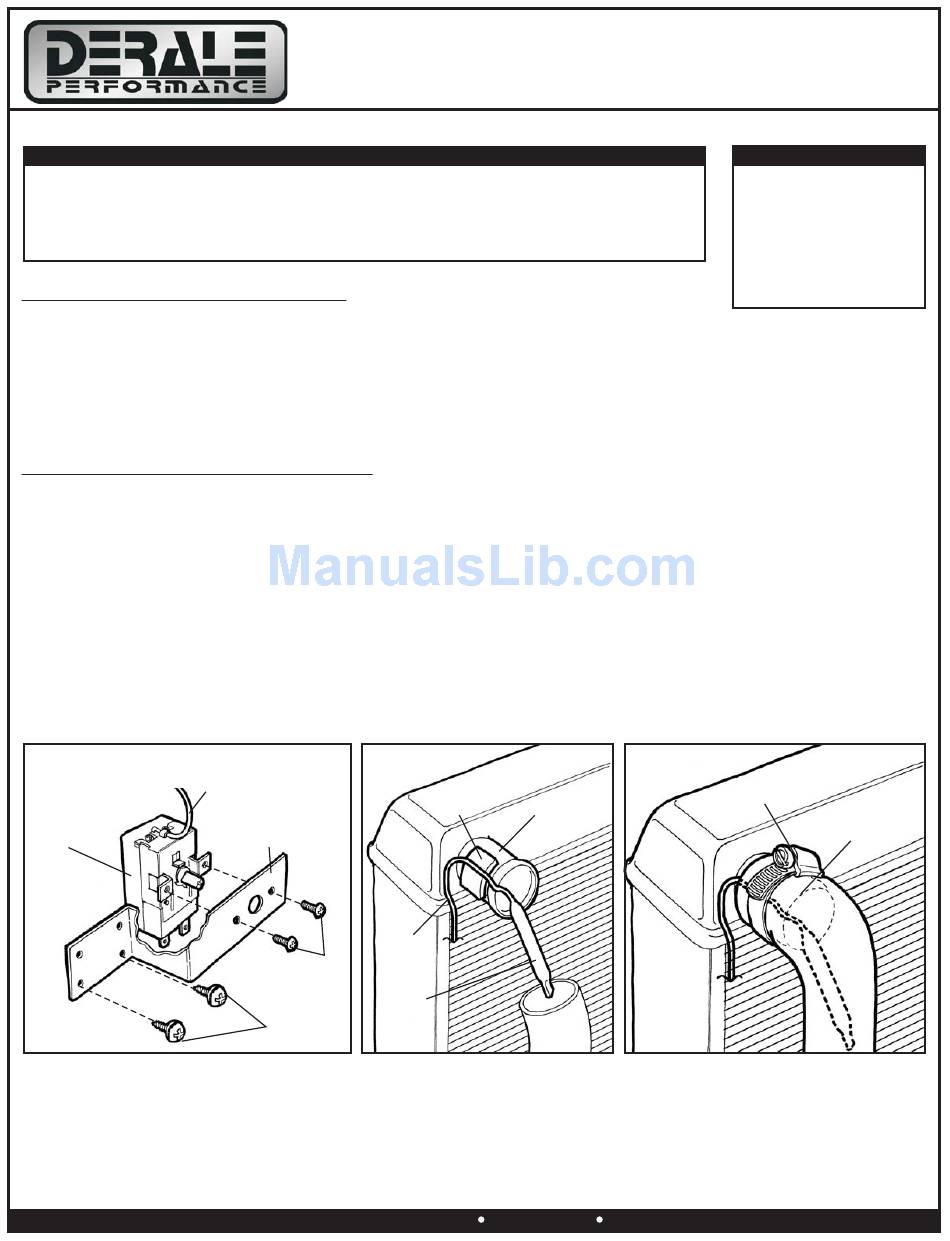

Diagram #1
Capillary Tube
Thermostat
Switch
(Continues on Page 2)
Derale Performance, Los Angeles, CA
ADJUSTABLE THERMOSTAT SWITCH

KIT CONTENTS

QTY. DESCRIPTION
2 #10 Sheet Metal Screws
1 Spool Extra Wire
1 20 Amp Fuse Holder
1 #10 Blue Ring Terminal
Diagram #2 Diagram #2
to Probe
Mounting
Bracket
Capillary
Tube
M4-0.7
Philips
HeadBolts
Probe
#10 Sheet
Metal Screws

INSTALLATION INSTRUCTIONS

PART # 16769
QTY. DESCRIPTION
1 Blue Wire Tap Connector
3 Blue Butt Connectors
2 Blue Female Connectors
4 4" Zip Ties
1 ½" x 1 ½"
Radiator
Foam Pad
Inlet Tube
800.421.6288

TOOLS NEEDED

Standard Screw Driver
Drill
5/32" Drill Bit
12V Test Light
Wire Stripper
Crimping Tool
Dyke Pliers
Diagram #3
Hose Clamp
www.derale.com
Radiator
Hose
16769-InstructionSheet
