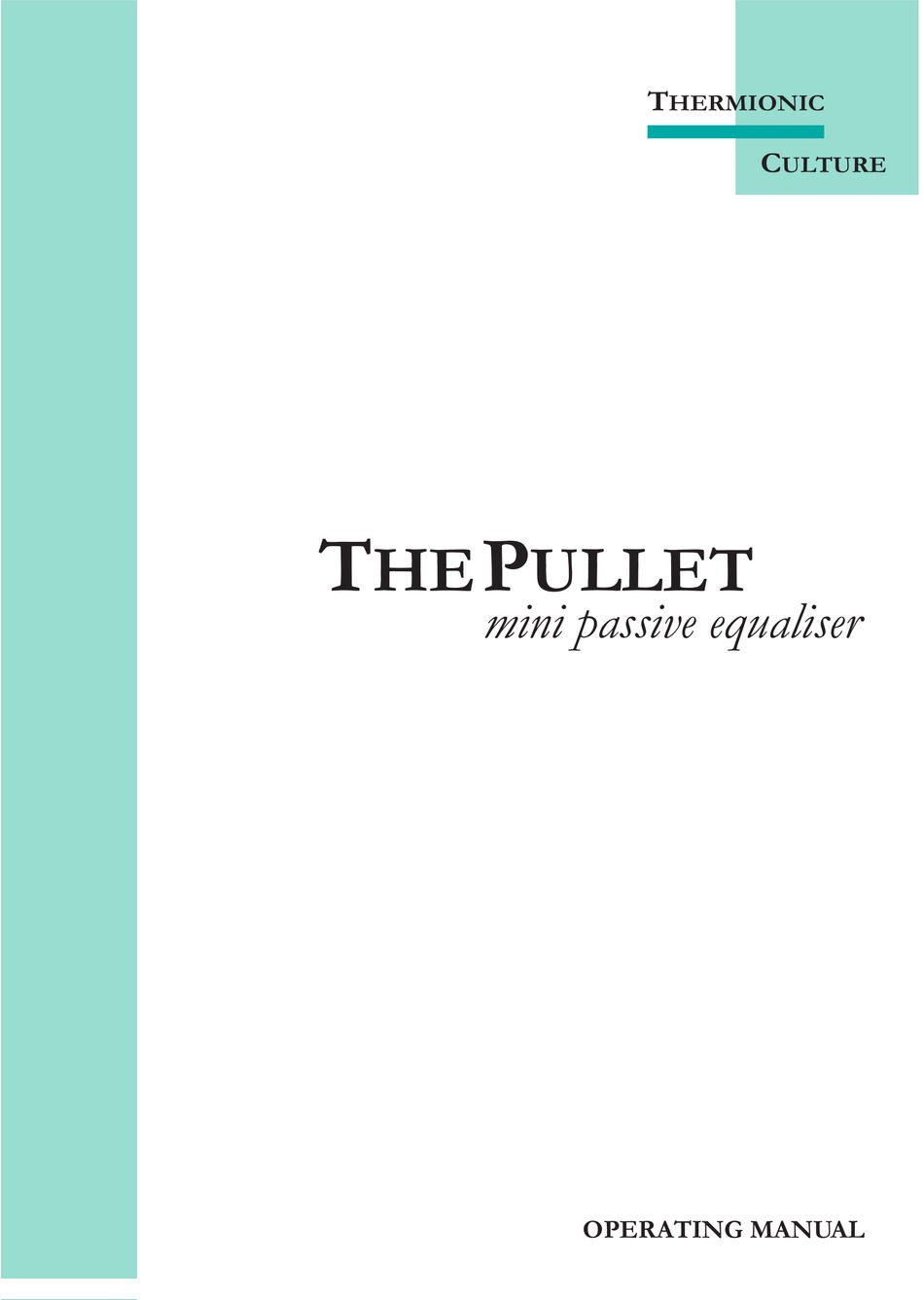

- Page 1 HERMIONIC ULTURE HE ULLET mini passive equaliser OPERATING MANUAL...
-
Page 2: Table Of Contents
CONTENTS Section Page Introduction Connecting the Pullet The Pre-amp Controls Mid lift Mid Cut High Top Bypass Specification © Thermionic Culture Ltd, April 2006... -
Page 3: Introduction
Eq facilities provided can be combined with the sound quality of the chosen pre-amp. The Pullet will give up to 21 dB of boost or 17dB of cut simultaneously to a choice of 11 boost frequencies, with variable Q, and 11 cut frequencies. -
Page 4: Connecting The Pullet
Connecting the Pullet The Pullet is designed to work at line level (+4dBm) input. Standard 3pin XLR sockets are provided (pin 2 hot). The output is 38 dB lower and has an output impedance of 1.3kΩ (max). The Pullet output should not be routed through a patch bay, short balanced leads are recommended for the Pullet output to pre-amp input connection. -
Page 5: The Pre-Amp
Pullet and ideally the pre-amp will have an input impedance of 1200Ω. This will allow the signal to be kept at unity gain when the Pullet is either in bypass or when there is no equalisation being used. -
Page 6: Controls
‘Cut’ brings a lo pass filter in which reaches -6 dB at either 15, 11 or 6 kHz. ‘Lift’ brings a shelving Eq in, which reaches its peak of 6 dB at either 15,12 or 10 kHz. © Thermionic Culture Ltd, April 2006... -
Page 7: Bypass
The pre-sets are found in the centre of the pullet on a tag strip, there is one for each channel. -
Page 8: Specification
Maximum Mid Cut -17dB Max High Top Lift Max High Top Cut -9dB Frequency response with 17Hz to 50kHz no Eq ±0.3dB Input and Output 4x3 pin XLRs, wired balanced, connectors pin 2 hot © Thermionic Culture Ltd, April 2006... - Page 9 Pullet frequency response curves 3.5k Hi Q 0.8k Hi Q 1.2k Hi Q 4.4k Hi Q 5k Hi Q 1.6k Hi Q 1.2k Lo Q 2k Hi Q 6.3k Hi Q 3k Lo Q 2.5k Hi Q 8.3k Hi Q 6.3k Lo Q 3k Hi Q 10k air lift...
- Page 10 Thermionic Culture Ltd., Harlow, Essex, UK Tel: +44 (0)1279 414770 Fax: +44 (0)1279 412233 © Thermionic Culture Ltd, April 2006. Printed in UK.
