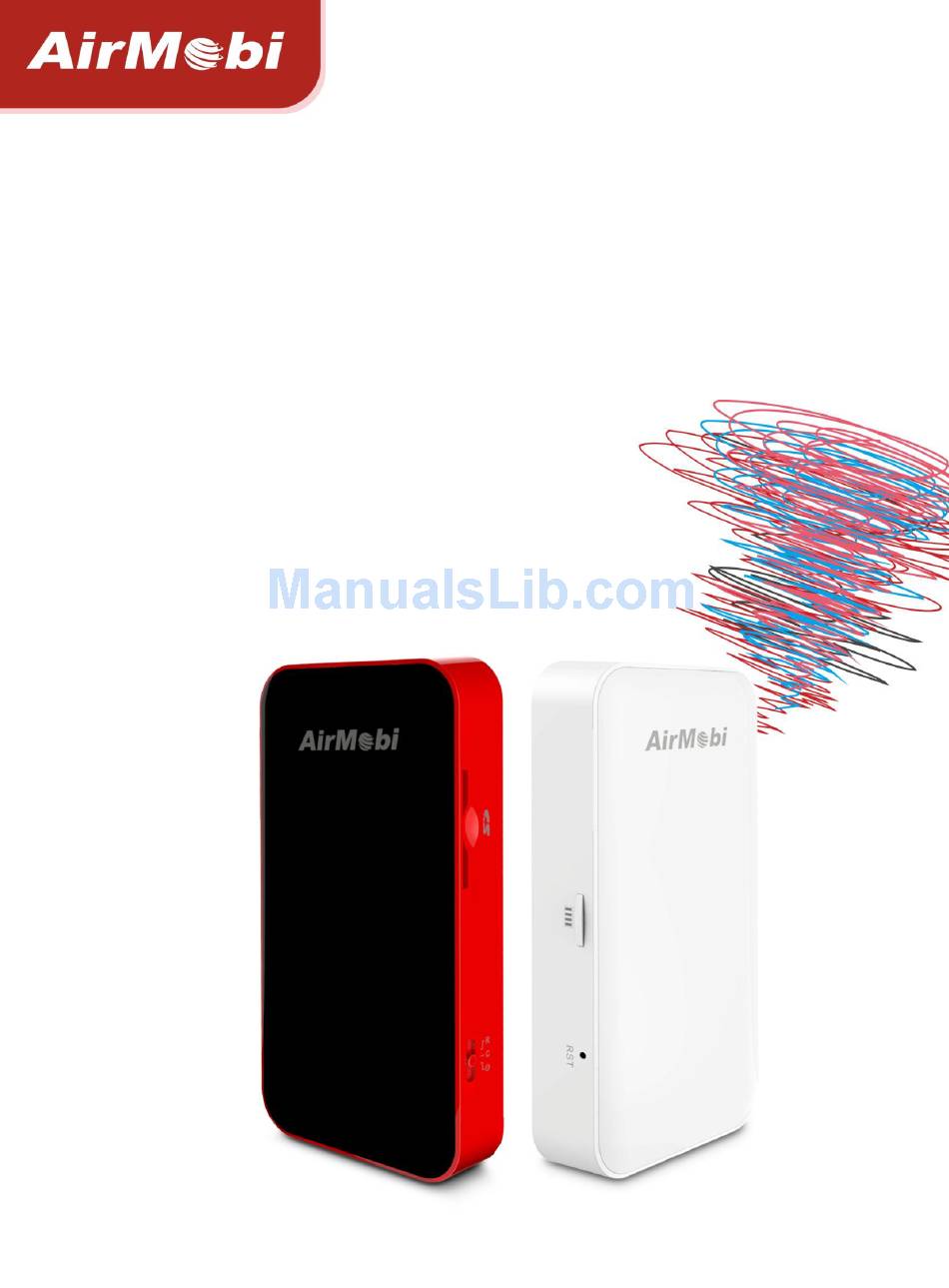

Page 1: User Manual
Wireless Travel Router iTravel User Manual V1.0...
Page 2: Copyright Statement
All the photos and product specifications mentioned in this manual are for references only, as the upgrading of software and hardware, there will be changes. And if there are changes, AirMobi is not responsible for informing in advance. If you want to know more information about our products, please visit our website at www.cctairmobi.com.
Page 3: Table Of Contents
Chapter 3: Installation ........... 5 Physical Connection ..............5 Configure the Computer’s IP Address .......... 5 Setup Wizard ................. 15 AirMobi ............. 错误！未定义书签。 Chapter 4: Software Configuration for 3G Mode ..... 27 Login ..................27 Running Status ............... 27 Setup Wizard ................. 28 Operating Mode ..............
Page 4 Security Options ..............44 Access Control ................ 48 Routing Settings ..............50 IP Bandwidth Control .............. 51 System Tools ................52 Chapter 5: Software Configuration for Router Mode ....57 Login ..................57 Running Status ............... 57 Setup Wizard ................. 58 Operating Mode ..............
Page 5 Running Status ............... 90 Setup Wizard ................. 91 Operating Mode ..............91 Network Settings ..............91 Wireless Settings ..............92 DHCP Server ................99 System Tools ................ 101 Chapter 7: Software Configuration for Repeater Mode..... 106 Login ................... 106 Running Status ..............106 Setup Wizard ...............
Page 6: Chapter 1: Introduction
3G signal to WIFI signals, to meet people to share a 3G Internet demand. Built-in 5200mAh lithium battery can be used as a mobile power. The iTravel set of 3G, WIFI, mobile power, SD card and U disk multimedia sharing in one, able to adapt to a variety of wireless network applications.
Page 7: Main Features
Compatible with mainstream CDMA2000, WCDMA, TD-SCDMA 3G wireless card • Shares files from any USB drive and SD card • Travel-sized design, lightweight, great for home or travel use • Free AirMobi App for iPhone®, iPad® and Android® mobile devices...
Page 8: Chapter 2: Operating Mode Introduction
Wireless Travel Router www.cctairmobi.com Chapter 2: Operating Mode Introduction This Wireless Travel Router supports four operation modes including 3G, Router, AP and Repeater. By default, the operation mode is 3G. In 3G mode, it enables Multiple Wi-Fi devices to share Internet via 3G networks. In this mode, the Ethernet port works as a LAN port.
Page 9 Wireless Travel Router www.cctairmobi.com In AP mode, it extends your existing wired network to your wireless clients. In Repeater mode, it extends the coverage of your root wireless router, boost the wireless signal strength.
Page 10: Chapter 3: Installation
Wireless Travel Router www.cctairmobi.com Chapter 3: Installation Physical Connection Please refer to Chapter 2. Configure the Computer’s IP Address For Windows XP/2000 1) Click Start > Control Panel.
Page 11 Wireless Travel Router www.cctairmobi.com 2) Select and double click Network Connections. 3) Right click Wireless Network Connection and then select Properties.
Page 12 Wireless Travel Router www.cctairmobi.com 4) Select Internet Protocol (TCP/IP) and click Properties. 5) Select Use the following IP address and Use the following DNS Server addresses. The IP address put in 192.168.1.X (like 192.168.1.100), Subnet mask put in 255.255.255.0, Default gateway leave it blank.
Page 13 Wireless Travel Router www.cctairmobi.com 6) Right click on Wireless Network Connection again, choose View Available Wireless Networks. 7) Click Refresh network list, search for AirMobi_XXXXXX, highlight on it and then click Connect button.
Page 14 Wireless Travel Router www.cctairmobi.com 8) If you can see Connected as shown in the following screen, you’ve successfully connected to the wireless network.
Page 15 Wireless Travel Router www.cctairmobi.com For Windows Vista/7 1) Click Start>Control Panel. 2) Click Network and Internet.
Page 16 Wireless Travel Router www.cctairmobi.com 3) Click Network and Sharing Center. 4) Go to Change Adapter Settings (win7)/Manage Network Connections (Vista).
Page 17 Wireless Travel Router www.cctairmobi.com 5) Right click Wireless Network Connection, choose Properties. 6) Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
Page 18 Wireless Travel Router www.cctairmobi.com 7) Select Use the following IP address and Use the following DNS Server addresses, the IP address put in 192.168.1.X (like 192.168.1.100), the Subnet mask put in 255.255.255.0, the Default gateway leave it blank, then click OK, and then click OK again. Right click on Wireless Network Connection again, choose Connect/Disconnect.
Page 19 Wireless Travel Router www.cctairmobi.com 9) Click Refresh network list, search for AirMobi_XXXXXX, highlight on it and then click Connect button. 9) If you can see Connected as shown in the following screen, you’ve successfully connected to the wireless network.
Page 20: Setup Wizard
Setup Wizard With a Web-based utility, it is easy to configure and manage the iTravel Wireless Travel Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
Page 21 Wireless Travel Router www.cctairmobi.com 2) After finishing the configuration on this page, click Next to continue. 3) You can give your wireless network a different name, and we recommend you choose Enable wireless security, and then set up a password, click Next. 4) Click Finish to save the configuration and close the wizard.
Page 22 Wireless Travel Router www.cctairmobi.com Router Mode 1) Choose Router mode, and then click Next. 2) Please choose your Internet connection type, there are three options available: Static IP, DHCP, and PPPoE. a) Select Static IP if your ISP gives you the Static IP Address, Subnet Mask, Default Gateway and DNS Server Address, type in those information and then click Next.
Page 23 Wireless Travel Router www.cctairmobi.com b) Select DHCP if your ISP does not gives you any IP numbers to use. This option is commonly used for cable modem services. Router will obtain IP address information automatically. In this case, no need to input anything but click Next. c) PPPoE is typically used for DSL services.
Page 24 Wireless Travel Router www.cctairmobi.com 4) Click Finish, then you can check the Internet is working or not. AP Mode 1) Choose AP mode, and then click Next. 2) You can give your wireless network a different name, and we recommend you choose Enable wireless security, and then set up a password, click Next.
Page 25 Wireless Travel Router www.cctairmobi.com 3) Click Finish to save the configuration and close the wizard. Repeater Mode 1) Choose Repeater mode, and then click Next. 2) Configure parameter of the wireless network you’d like to connect.
Page 26 Wireless Travel Router www.cctairmobi.com Click on Search button, it will show the site list of scanning result, please find your main AP’s SSID, and then click Connect. After that, the values you selected will be filled in the Access wireless network name (SSID), Security Mode and Encryption Type automatically.
Page 27 AirMobi App for iOS and Android devices, or with users with a notebook. Using the function of AirMobi, you need to insert your SD card or USB disk to iTravel and please make sure your Smart Phone, Tablet and PC have been connected to the iTravel.
Page 28 Access AirMobi via Smart Phone or Tablet 1) Search the app on the App store or Google Play, and you also can scan the QR code to download and install the AirMobi App to your iPhone, iPad or Android devices.
Page 29 Wireless Travel Router www.cctairmobi.com 2) Once installed, click on the icon to open the AirMobi. 3) For the Music section, click the music icon to play your music from your SD card or USB disk.
Page 30 Wireless Travel Router www.cctairmobi.com 4) For the Video section, click the video icon to play your video from your SD card or USB disk. 5) For the Picture section, click the picture icon to open your picture from your SD card or USB disk.
Page 31 Wireless Travel Router www.cctairmobi.com 6) For the Document section, click the document icon to open your document from your SD card or USB disk. 7) For the File Manager section, click the file icon to open the menu of file operations.
Page 32: Airmobi
Wireless Travel Router www.cctairmobi.com Chapter 4: Software Configuration for 3G Mode Login After your successful login, you can configure and manage the device. There are main menus on the left of the web-based utility. Submenus will be available after you click one of the main menus. On the right, there are the corresponding explanations and instructions.
Page 33: Setup Wizard
Wireless Travel Router www.cctairmobi.com Setup Wizard Please refer to Chapter 3. Operating Mode...
Page 34: Network Settings
Wireless Travel Router www.cctairmobi.com Please choose the appropriate mode according to your requirement, it support Router, AP, Repeater and 3G mode. Router: In this mode, the device enables multiuser to share Internet via ADSL/Cable Modem. The wireless port share the same IP to ISP through Ethernet WAN port. The Wireless port acts the same as a LAN port while at Router mode.
Page 35: Wireless Settings
Wireless Travel Router www.cctairmobi.com 3G USB Modem: Showing 3G USB Modem's manufacturer when it is identified. Location: Please select the location where you're enjoying the 3G card. Mobile ISP: Please select the ISP (Internet Service Provider) you apply to for 3G service. The Router will show the default Dial Number, APN, Username and Password of that ISP.
Page 36 Wireless Travel Router www.cctairmobi.com Wireless Basic Settings Wireless network name (SSID): The wireless network name of iTravel, you can change it to whatever you want. Wireless Mode: If all of the wireless devices connected with this wireless router are in the same transmission mode (e.g.
Page 37 Wireless Travel Router www.cctairmobi.com Channel: The router can choose the best channel automatically in most cases. Please try to change the wireless channel if you notice interference problems with another nearby access point, or the wireless performance is not as good as you expected. SSID Broadcast: If you choose Enabled, the wireless router will broadcast its name (SSID).
Page 38 Wireless Travel Router www.cctairmobi.com Mode 2: Security Mode > Open/Shared/ WEPAUTO Open System: Select 802.11 Open System authentications. Shared Key: Select 802.11 Shared Key authentications. WEPAUTO: Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. You can select ASCII or Hex format.
Page 39 Wireless Travel Router www.cctairmobi.com You can select one of following versions: WPA-Personal: Pre-shared key of WPA. WPA2-Personal: Pre-shared key of WPA2. WPA- Personal/ WPA2-Personal: Select WPA-Personal or WPA2-Personal automatically based on the wireless station's capability and request. Encryption: You can select TKIP, AES or TKIP+AES. Password: The password should be between 8 and 63 characters.
Page 40 Wireless Travel Router www.cctairmobi.com If you want MAC address (0A:3F:26:54:EA:3F) cannot access the Wireless Network while others can: Step 1: chooses Reject in the Policy. Step 2: Fill in MAC address 0A:3F:26:54:EA:3F, Click Save button. Advanced Wireless Settings...
Page 41 Wireless Travel Router www.cctairmobi.com This section is to configure the advanced wireless setting of the Router, if you are not familiar with the setting items in this page, it’s strongly recommended to keep the provided default values, otherwise it may result in lower wireless network performance. Beacon Interval: The interval for sending packets of the Beacon frame.
Page 42: Dhcp Server
Wireless Travel Router www.cctairmobi.com Wireless Clients List Click Refresh button to check the wireless clients. DHCP Server There are three submenus under the DHCP Server menu: DHCP, DHCP Clients List and Address Reservation. Click any of them, and you will be able to configure the corresponding function. DHCP...
Page 43 Wireless Travel Router www.cctairmobi.com If you enable DHCP server of the router, the DHCP server automatically configures the TCP/IP protocol for each computer in the LAN. DHCP Server: If you disable the server, please make sure you have another DHCP server in your network.
Page 44: Nat
Wireless Travel Router www.cctairmobi.com When you specify a reserved IP address for a PC in the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses could be assigned to servers that require permanent IP settings.
Page 45 Wireless Travel Router www.cctairmobi.com Choose Enabled, Then click Add button. Rule’s Name: You can give this rule a name. Server IP Address: The LAN IP address of the server you want to open the port, it is like 192.168.0.X. if you click Search IP Address button, you can see this page:...
Page 46 Wireless Travel Router www.cctairmobi.com Server Port Range: The port range of the server you want to open the port. Protocol: The protocol of the server. Note: Please assign a static IP address to the server.
Page 47 Wireless Travel Router www.cctairmobi.com Port Triggering Click Add button.
Page 48 Wireless Travel Router www.cctairmobi.com Application Name: Describe the name of the application that being set. Please select one of the applications: There are few common applications available such as Dailpad, MSN gaming, PC Phone etc. the blank will be automatically filled once been chosen. Customize Application Name: If the application you want to add is not included, enter the blank manually.
Page 49: Security Options
Wireless Travel Router www.cctairmobi.com IP Address of the DMZ Host: Enter the IP address of the computer in the LAN that you want to set to a DMZ host in the DMZ Host IP Address field. Note: • Before using DMZ Host, you should assign a static IP address to the designated server, and then enter this static IP address into router as the Server IP Address.
Page 50 Wireless Travel Router www.cctairmobi.com Security Settings SPI (Stateful Packet Inspection): When the SPI firewall is enabled, the system refuses all requests from the Internet. Only packets that belong to connections that respond requests from the LAN and for which status database is created can pass the firewall and access to the LAN. By default, the SPI is enabled.
Page 51 Wireless Travel Router www.cctairmobi.com Advanced Security Settings Anti DoS Attack: Check to enable it for attack prevention. IGMP-Flood Packet Threshold: If the number of ICMP data packets exceeds the threshold, the defense measures act immediately. Enable filtering UDP-FLOOD attack: Select it if you want to protect against UDP-FLOOD attacks. UDP-Flood Packet Threshold: If the number of UDP data packets exceeds the threshold, the defense measures act immediately.
Page 52 Wireless Travel Router www.cctairmobi.com Local Web Management By default, the router allows all computers in the LAN to login to the router for Web management. If you select Allow only MAC addresses in the list to access the Web management page, and add MAC addresses to the list, only MAC addresses in the list can access the web management page of the router, while other computers in the LAN are blocked from accessing the router.
Page 53: Access Control
Wireless Travel Router www.cctairmobi.com Access Control There are two submenus under the Access Control menu: MAC/IP/Port Filter and Web URL Filter. Click any of them, and you will be able to configure the corresponding function. MAC/IP/Port Filter This page is used to enable the firewall filtering function, select the filtering service or manually set the parameters that need to be filtered, such as MAC address, IP address and Port.
Page 54 Wireless Travel Router www.cctairmobi.com Here take MAC Filter as an example: If you want a computer which MAC address is 00:0A:EB:00:07:5F cannot get online from 4a.m. to 8a.m. on Monday, please follow these steps: Step1: Enter 00:0A:EB:00:07:5F in the Mac Address field. Step 2: Uncheck All, then check Monday in the Schedule.
Page 55: Routing Settings
Wireless Travel Router www.cctairmobi.com Web URL Filter URL: Put in the URL you want to filter. Routing Settings There is a submenu under the Routing Settings menu: Static Routing Table. Click it, and you will be able to configure the corresponding function. Static Routing Table...
Page 56: Ip Bandwidth Control
Wireless Travel Router www.cctairmobi.com Static routes give the router information that it cannot learn automatically through other means Use the Static Routing page to add or delete a route. The max number is 10. Destination: This is the IP address of the network or host that you want to assign to a static route.
Page 57: System Tools
Wireless Travel Router www.cctairmobi.com Enable IP bandwidth control: If you select it, the bandwidth control rule takes effect. Total Uplink Bandwidth: The rate of uploading through the WAN interface. Total Downlink Bandwidth: The rate of downloading through the WAN interface. Note: •...
Page 58 Wireless Travel Router www.cctairmobi.com Network Time Settings Current time: Show the current time. Time Zone: Select your time zone from the drop-down menu. Network time server: To set NTP server. Save: Click the Save button to save your setting. Note: The system will Synchronous with the Network Time Server every hour after saving, and it will affect the WAN dial-up on demand.
Page 59 Wireless Travel Router www.cctairmobi.com Select: Select Ping or Tracert. IP Address/Domain Name: The destination IP address or domain name. Ping Packet Total: The number of transmitted data packet when Ping operation is carried out. Ping Packet Size: The size of transmitted data packet when Ping operation is carried out. Ping Timeout: The timeout time of the ping operation.
Page 60 Wireless Travel Router www.cctairmobi.com Backup and Restore In the Export Settings column, click Back up button to save all configuration settings to your local computer as a file. To restore the Router's configuration, follow these instructions: 1) Click Browse button to find the configuration file which you want to restore. 2) Click Save button to update the configuration with the file whose path is the one you have input or selected in the blank.
Page 61 Wireless Travel Router www.cctairmobi.com Firmware Upgrade You can upgrade the router to the lasted version in this page, please download a most recent firmware upgrade file from our website. After downloading the file, you need to extract the zip file before upgrading the router. Browse for the upgrade file, then click Upgrade button. Caution! Once you click Upgrade button, do not interrupt the process, loss of power during the upgrade could damage the Router.
Page 62: Chapter 5: Software Configuration For Router Mode
Wireless Travel Router www.cctairmobi.com Chapter 5: Software Configuration for Router Mode Login After your successful login, you can configure and manage the device. There are main menus on the left of the web-based utility. Submenus will be available after you click one of the main menus. On the right, there are the corresponding explanations and instructions.
Page 63: Setup Wizard
Wireless Travel Router www.cctairmobi.com Setup Wizard Please refer to Chapter 3. Operating Mode...
Page 64: Network Settings
Wireless Travel Router www.cctairmobi.com Please choose the appropriate mode according to your requirement, it support Router, AP, Repeater and 3G mode. Router: In this mode, the device enables multiuser to share Internet via ADSL/Cable Modem. The wireless port share the same IP to ISP through Ethernet WAN port. The Wireless port acts the same as a LAN port while at Router mode.
Page 65 Wireless Travel Router www.cctairmobi.com WAN Connection Type: To make sure the connection type your ISP provides, please refer to the ISP for more information. MTU Size (byte): The default MTU (Maximum Transmission Unit) value is 1500 Bytes. Sometimes you need to modify the MTU required by your ISP. Manually configure the DNS server: Check this potion if your ISP gives you one or two DNS IP addresses.
Page 66 Wireless Travel Router www.cctairmobi.com 3. If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE as your WAN Connection Type. Username/Password: Enter the username and password provided by your ISP. These fields are case-sensitive. Secondary connection: If your ISP provides an extra connection type such as Dynamic/Static IP to connect to a local area network, then you can check the radio button of Dynamic/Static IP to activate this secondary connection.
Page 67 Wireless Travel Router www.cctairmobi.com you need to modify the MTU required by your ISP. Connect on Demand: If you select this option, the internet connection can be terminated automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the internet again.
Page 68: Wireless Settings
Wireless Travel Router www.cctairmobi.com If you want to clone the MAC Address, choose Enabled, and then click Clone My PC’s Address, then click Save. Wireless Settings There are five submenus under the wireless menu: Wireless Basic Settings, Wireless Security Settings, Wireless MAC Address Filter, Advanced Wireless Settings and Wireless Clients List. Click any of them, you will be able to configure the corresponding function.
Page 69 Wireless Travel Router www.cctairmobi.com Wireless network name (SSID): The wireless network name of iTravel, you can change it to whatever you want. Wireless Mode: If all of the wireless devices connected with this wireless router are in the same transmission mode (e.g. 802.11b), you can choose "Only" mode (e.g. 11b only). If you have some devices which use a different transmission mode, choose the appropriate "Mixed"...
Page 70 Wireless Travel Router www.cctairmobi.com Mode 1: Security Mode > Disable If you do not want to use wireless security, highlight on this option. That means other people can connect to your wireless network without entering any password, so it may slow down your internet speed, it’s recommended strongly to choose one of the following modes to enable security.
Page 71 Wireless Travel Router www.cctairmobi.com permitted) or 5 ASCII characters. Or enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, and null key is not permitted) or 13 ASCII characters. Mode 3: Security Mode > WPA-Personal, WPA2-Personal, WPA- Personal/ WPA2-Personal You can select one of following versions: WPA-Personal: Pre-shared key of WPA.
Page 72 Wireless Travel Router www.cctairmobi.com You can allow/deny the computers connecting to the router wirelessly by entering the MAC address with this feature. If you only want MAC address (F4:B7:E2:22:19:DC) to access the Wireless Network while others cannot: Step 1: chooses Allow in the Policy. Step 2: Fill in MAC address F4:B7:E2:22:19:DC, click Save button.
Page 73 Wireless Travel Router www.cctairmobi.com Advanced Wireless Settings This section is to configure the advanced wireless setting of the Router, if you are not familiar with the setting items in this page, it’s strongly recommended to keep the provided default values, otherwise it may result in lower wireless network performance. Beacon Interval: The interval for sending packets of the Beacon frame.
Page 74 Wireless Travel Router www.cctairmobi.com RTS Threshold: Set the RTS (Request to send threshold.) threshold. When the packet size is larger than the preset RTS size, the wireless router will send a RTS to the destination station to start a negotiation. The default value is 2347. Enable WMM: If you select it, the router will process the packets with the priority first.
Page 75: Dhcp Server
Wireless Travel Router www.cctairmobi.com Wireless Clients List Click Refresh button to check the wireless clients. DHCP Server There are three submenus under the DHCP Sever menu: DHCP, DHCP Clients List and Address Reservation. Click any of them, and you will be able to configure the corresponding function. DHCP...
Page 76 Wireless Travel Router www.cctairmobi.com If you enable DHCP server of the router, the DHCP server automatically configures the TCP/IP protocol for each computer in the LAN. DHCP Server: If you disable the server, please make sure you have another DHCP server in your network.
Page 77: Nat
Wireless Travel Router www.cctairmobi.com When you specify a reserved IP address for a PC in the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses could be assigned to servers that require permanent IP settings.
Page 78 Wireless Travel Router www.cctairmobi.com Choose Enabled, Then click Add button. Rule’s Name: You can give this rule a name. Server IP Address: The LAN IP address of the server you want to open the port, it is like 192.168.0.X. if you click Search IP Address button, you can see this page:...
Page 79 Wireless Travel Router www.cctairmobi.com Server Port Range: The port range of the server you want to open the port. Protocol: The protocol of the server. Note: Please assign a static IP address to the server.
Page 80 Wireless Travel Router www.cctairmobi.com Port Triggering Click Add button.
Page 81 Wireless Travel Router www.cctairmobi.com Application Name: Describe the name of the application that being set. Please select one of the applications: There are few common applications available such as Dailpad, MSN gaming, PC Phone etc. the blank will be automatically filled once been chosen. Customize Application Name: If the application you want to add is not included, enter the blank manually.
Page 82: Security Options
Wireless Travel Router www.cctairmobi.com IP Address of the DMZ Host: Enter the IP address of the computer in the LAN that you want to set to a DMZ host in the DMZ Host IP Address field. Note: • Before using DMZ Host, you should assign a static IP address to the designated server, and then enter this static IP address into router as the Server IP Address.
Page 83 Wireless Travel Router www.cctairmobi.com Security Settings SPI (Stateful Packet Inspection): When the SPI firewall is enabled, the system refuses all requests from the Internet. Only packets that belong to connections that respond requests from the LAN and for which status database is created can pass the firewall and access to the LAN. By default, the SPI is enabled.
Page 84 Wireless Travel Router www.cctairmobi.com Advanced Security Settings Anti DoS Attack: Check to enable it for attack prevention. IGMP-Flood Packet Threshold: If the number of ICMP data packets exceeds the threshold, the defense measures act immediately. Enable filtering UDP-FLOOD attack: Select it if you want to protect against UDP-FLOOD attacks. UDP-Flood Packet Threshold: If the number of UDP data packets exceeds the threshold, the defense measures act immediately.
Page 85 Wireless Travel Router www.cctairmobi.com Local Web Management By default, the router allows all computers in the LAN to login to the router for Web management. If you select Allow only MAC addresses in the list to access the Web management page, and add MAC addresses to the list, only MAC addresses in the list can access the web management page of the router, while other computers in the LAN are blocked from accessing the router.
Page 86: Access Control
Wireless Travel Router www.cctairmobi.com Access Control There are two submenus under the Access Control menu: MAC/IP/Port Filter and Web URL Filter. Click any of them, and you will be able to configure the corresponding function. MAC/IP/Port Filter This page is used to enable the firewall filtering function, select the filtering service or manually set the parameters that need to be filtered, such as MAC address, IP address and Port.
Page 87 Wireless Travel Router www.cctairmobi.com Here take MAC Filter as an example: If you want a computer which MAC address is 00:0A:EB:00:07:5F cannot get online from 4a.m. to 8a.m. on Monday, please follow these steps: Step1: Enter 00:0A:EB:00:07:5F in the Mac Address field. Step 2: Uncheck All, then check Monday in the Schedule.
Page 88: Routing Settings
Wireless Travel Router www.cctairmobi.com Web URL Filter URL: Put in the URL you want to filter. Routing Settings There is a submenu under the Routing Settings menu: Static Routing Table. Click it, and you will be able to configure the corresponding function. Static Routing Table...
Page 89: Ip Bandwidth Control
Wireless Travel Router www.cctairmobi.com Static routes give the router information that it cannot learn automatically through other means Use the Static Routing page to add or delete a route. The max number is 10. Destination: This is the IP address of the network or host that you want to assign to a static route.
Page 90: System Tools
Wireless Travel Router www.cctairmobi.com Enable IP bandwidth control: If you select it, the bandwidth control rule takes effect. Total Uplink Bandwidth: The rate of uploading through the WAN interface. Total Downlink Bandwidth: The rate of downloading through the WAN interface. Note: •...
Page 91 Wireless Travel Router www.cctairmobi.com Network Time Settings Current time: Show the current time. Time Zone: Select your time zone from the drop-down menu. Network time server: To set NTP server. Save: Click the Save button to save your setting. Note: The system will Synchronous with the Network Time Server every hour after saving, and it will affect the WAN dial-up on demand.
Page 92 Wireless Travel Router www.cctairmobi.com Select: Select Ping or Tracert. IP Address/Domain Name: The destination IP address or domain name. Ping Packet Total: The number of transmitted data packet when Ping operation is carried out. Ping Packet Size: The size of transmitted data packet when Ping operation is carried out. Ping Timeout: The timeout time of the ping operation.
Page 93 Wireless Travel Router www.cctairmobi.com Backup and Restore In the Export Settings column, click Back up button to save all configuration settings to your local computer as a file. To restore the Router's configuration, follow these instructions: 3) Click Browse button to find the configuration file which you want to restore. 4) Click Save button to update the configuration with the file whose path is the one you have input or selected in the blank.
Page 94 Wireless Travel Router www.cctairmobi.com Firmware Upgrade You can upgrade the router to the lasted version in this page, please download a most recent firmware upgrade file from our website. After downloading the file, you need to extract the zip file before upgrading the router. Browse for the upgrade file, then click Upgrade button. Caution! Once you click Upgrade button, do not interrupt the process, loss of power during the upgrade could damage the Router.
Page 95: Chapter 6: Software Configuration For Ap Mode
Wireless Travel Router www.cctairmobi.com Chapter 6: Software Configuration for AP Mode Login After your successful login, you can configure and manage the device. There are main menus on the left of the web-based utility. Submenus will be available after you click one of the main menus. On the right, there are the corresponding explanations and instructions.
Page 96: Setup Wizard
Wireless Travel Router www.cctairmobi.com Setup Wizard Please refer to Chapter 3. Operating Mode Please choose the appropriate mode according to your requirement, it support Router, AP, Repeater and 3G mode. Router: In this mode, the device enables multiuser to share Internet via ADSL/Cable Modem. The wireless port share the same IP to ISP through Ethernet WAN port.
Page 97: Wireless Settings
Wireless Travel Router www.cctairmobi.com MAC Address: The physical address of the router. IP Address: The LAN IP Address of the router. Subnet Mask: The Subnet Mask associated with the LAN IP Address. Note: If you changed the LAN IP Address of the router, please login this web management page by the new IP address.
Page 98 Wireless Travel Router www.cctairmobi.com Wireless network name (SSID): The wireless network name of iTravel, you can change it to whatever you want. Wireless Mode: If all of the wireless devices connected with this wireless router are in the same transmission mode (e.g. 802.11b), you can choose "Only" mode (e.g. 11b only). If you have some devices which use a different transmission mode, choose the appropriate "Mixed"...
Page 99 Wireless Travel Router www.cctairmobi.com Mode 1: Security Mode > Disable If you do not want to use wireless security, highlight on this option. That means other people can connect to your wireless network without entering any password, so it may slow down your internet speed, it’s recommended strongly to choose one of the following modes to enable security.
Page 100 Wireless Travel Router www.cctairmobi.com permitted) or 5 ASCII characters. Or enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, and null key is not permitted) or 13 ASCII characters. Mode 3: Security Mode > WPA-Personal, WPA2-Personal, WPA- Personal/ WPA2-Personal You can select one of following versions: WPA-Personal: Pre-shared key of WPA.
Page 101 Wireless Travel Router www.cctairmobi.com You can allow/deny the computers connecting to the router wirelessly by entering the MAC address with this feature. If you only want MAC address (F4:B7:E2:22:19:DC) to access the Wireless Network while others cannot: Step 1: chooses Allow in the Policy. Step 2: Fill in MAC address F4:B7:E2:22:19:DC, click Save button.
Page 102 Wireless Travel Router www.cctairmobi.com Advanced Wireless Settings This section is to configure the advanced wireless setting of the Router, if you are not familiar with the setting items in this page, it’s strongly recommended to keep the provided default values, otherwise it may result in lower wireless network performance. Beacon Interval: The interval for sending packets of the Beacon frame.
Page 103 Wireless Travel Router www.cctairmobi.com RTS Threshold: Set the RTS (Request to send threshold.) threshold. When the packet size is larger than the preset RTS size, the wireless router will send a RTS to the destination station to start a negotiation. The default value is 2347. Enable WMM: If you select it, the router will process the packets with the priority first.
Page 104: Dhcp Server
Wireless Travel Router www.cctairmobi.com Wireless Clients List Click Refresh button to check the wireless clients. DHCP Server There are three submenus under the DHCP Server menu: DHCP, DHCP Clients List and Address Reservation. Click any of them, and you will be able to configure the corresponding function. DHCP...
Page 105 Wireless Travel Router www.cctairmobi.com If you enable DHCP server of the router, the DHCP server automatically configures the TCP/IP protocol for each computer in the LAN. DHCP Server: If you disable the server, please make sure you have another DHCP server in your network.
Page 106: System Tools
Wireless Travel Router www.cctairmobi.com When you specify a reserved IP address for a PC in the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses could be assigned to servers that require permanent IP settings.
Page 107 Wireless Travel Router www.cctairmobi.com Network Time Settings Current time: Show the current time. Time Zone: Select your time zone from the drop-down menu. Network time server: To set NTP server. Save: Click the Save button to save your setting. Note: The system will Synchronous with the Network Time Server every hour after saving, and it will affect the WAN dial-up on demand.
Page 108 Wireless Travel Router www.cctairmobi.com Select: Select Ping or Tracert. IP Address/Domain Name: The destination IP address or domain name. Ping Packet Total: The number of transmitted data packet when Ping operation is carried out. Ping Packet Size: The size of transmitted data packet when Ping operation is carried out. Ping Timeout: The timeout time of the ping operation.
Page 109 Wireless Travel Router www.cctairmobi.com Backup and Restore In the Export Settings column, click Back up button to save all configuration settings to your local computer as a file. To restore the Router's configuration, follow these instructions: 5) Click Browse button to find the configuration file which you want to restore. 6) Click Save button to update the configuration with the file whose path is the one you have input or selected in the blank.
Page 110 Wireless Travel Router www.cctairmobi.com Firmware Upgrade You can upgrade the router to the lasted version in this page, please download a most recent firmware upgrade file from our website. After downloading the file, you need to extract the zip file before upgrading the router. Browse for the upgrade file, then click Upgrade button. Caution! Once you click Upgrade button, do not interrupt the process, loss of power during the upgrade could damage the Router.
Page 111: Chapter 7: Software Configuration For Repeater Mode
Wireless Travel Router www.cctairmobi.com Chapter 7: Software Configuration for Repeater Mode Login After your successful login, you can configure and manage the device. There are main menus on the left of the web-based utility. Submenus will be available after you click one of the main menus. On the right, there are the corresponding explanations and instructions.
Page 112: Setup Wizard
Wireless Travel Router www.cctairmobi.com Setup Wizard Please refer to Chapter 3. Operating Mode Please choose the appropriate mode according to your requirement, it support Router, AP, Repeater and 3G mode. Router: In this mode, the device enables multiuser to share Internet via ADSL/Cable Modem. The wireless port share the same IP to ISP through Ethernet WAN port.
Page 113: Wireless Settings
Wireless Travel Router www.cctairmobi.com MAC Address: The physical address of the router. IP Address: The LAN IP Address of the router. Subnet Mask: The Subnet Mask associated with the LAN IP Address. Note: If you changed the LAN IP Address of the router, please login this web management page by the new IP address.
Page 114 Wireless Travel Router www.cctairmobi.com Wireless Basic Settings Wireless network name (SSID): The wireless network name of iTravel, you can change it to whatever you want. SSID Broadcast: If you choose Enabled, iTravel will broadcast its name (SSID). BSSID: Basic service set identification, the wireless MAC address of iTravel.
Page 115 Wireless Travel Router www.cctairmobi.com Wireless MAC Address Filter You can allow/deny the computers connecting to the router wirelessly by entering the MAC address with this feature. If you only want MAC address (F4:B7:E2:22:19:DC) to access the Wireless Network while others cannot: Step 1: chooses Allow in the Policy.
Page 116 Wireless Travel Router www.cctairmobi.com Advanced Wireless Settings This section is to configure the advanced wireless setting of the Router, if you are not familiar with the setting items in this page, it’s strongly recommended to keep the provided default values, otherwise it may result in lower wireless network performance.
Page 117 Wireless Travel Router www.cctairmobi.com Beacon Interval: The interval for sending packets of the Beacon frame. Its value range is 20-1000 in unit of ms. The default is 100. DTIM Interval: It indicates the interval of the delivery traffic indication message (DTIM). The value range is between 1 and 255 milliseconds.
Page 118: Dhcp Server
Wireless Travel Router www.cctairmobi.com Wireless Clients List Click Refresh button to check the wireless clients. DHCP Server There are three submenus under the DHCP Server menu: DHCP, DHCP Clients List and Address Reservation. Click any of them, and you will be able to configure the corresponding function. DHCP...
Page 119 Wireless Travel Router www.cctairmobi.com If you enable DHCP server of the router, the DHCP server automatically configures the TCP/IP protocol for each computer in the LAN. DHCP Server: If you disable the server, please make sure you have another DHCP server in your network.
Page 120: System Tools
Wireless Travel Router www.cctairmobi.com When you specify a reserved IP address for a PC in the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses could be assigned to servers that require permanent IP settings.
Page 121 Wireless Travel Router www.cctairmobi.com Network Time Settings Current time: Show the current time. Time Zone: Select your time zone from the drop-down menu. Network time server: To set NTP server. Save: Click the Save button to save your setting. Note: The system will Synchronous with the Network Time Server every hour after saving, and it will affect the WAN dial-up on demand.
Page 122 Wireless Travel Router www.cctairmobi.com Select: Select Ping or Tracert. IP Address/Domain Name: The destination IP address or domain name. Ping Packet Total: The number of transmitted data packet when Ping operation is carried out. Ping Packet Size: The size of transmitted data packet when Ping operation is carried out. Ping Timeout: The timeout time of the ping operation.
Page 123 Wireless Travel Router www.cctairmobi.com Backup and Restore In the Export Settings column, click Back up button to save all configuration settings to your local computer as a file. To restore the Router's configuration, follow these instructions: 7) Click Browse button to find the configuration file which you want to restore. 8) Click Save button to update the configuration with the file whose path is the one you have input or selected in the blank.
Page 124 Wireless Travel Router www.cctairmobi.com Firmware Upgrade You can upgrade the router to the lasted version in this page, please download a most recent firmware upgrade file from our website. After downloading the file, you need to extract the zip file before upgrading the router. Browse for the upgrade file, then click Upgrade button. Caution! Once you click Upgrade button, do not interrupt the process, loss of power during the upgrade could damage the Router.
Page 125: Chapter 8: Specification
Wireless Travel Router www.cctairmobi.com Chapter 8: Specification Wireless Standards IEEE 802.11b/g/n 11n: 300Mbps Data Rate 11g: 54Mbps 11b: 11Mbps Frequency Range 2.4-2.4835GHz Wireless Transmit Power <18 dBm Modulation Type OFDM/CCK/16-QAM/64-QAM 300M: -68dBm@10% PER 108M: -68dBm@10% PER Receive Sensitivity 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER Operation Mode...
Page 126 Wireless Travel Router www.cctairmobi.com Others Operating Temperature 0°C~40°C (32°F~104°F) Storage Temperature -40°C~70°C (-40°F~158°F) Relative Humidity 10% ~ 90%, Non-condensing Storage Humidity 5%~95%, Non-condensing Certifications CE,FCC, RoHS 1 x Wireless Travel Router 1 x Flannelette Bag Package Contents 1 x Quick Installation Guide 1 x Micro USB Cable ﹡All references to speed and range are for comparison purposes only.
Page 127: Appendix A: Troubleshooting
Wireless Travel Router www.cctairmobi.com Appendix A: Troubleshooting 1. How do I restore the Wireless Travel Router to factory default settings? When the Wireless Travel Router is powered on, press and hold the reset button on the panel for 5~10 seconds, release the reset button, and then the light turns red. 2.
Page 128: Appendix B: Certification
Wireless Travel Router www.cctairmobi.com Appendix B: Certification FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 129: Ce Mark Warning
Wireless Travel Router www.cctairmobi.com • This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. • This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. CE Mark Warning Marking with the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC).
Page 130: Appendix C: Glossary
Wireless Travel Router www.cctairmobi.com Appendix C: Glossary 802.11b: The 802.11b standard specifies a wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks. 802.11g: Specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP encryption for security.
Page 131 Wireless Travel Router www.cctairmobi.com identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network name.
