Summary of Contents for SSP MKP082

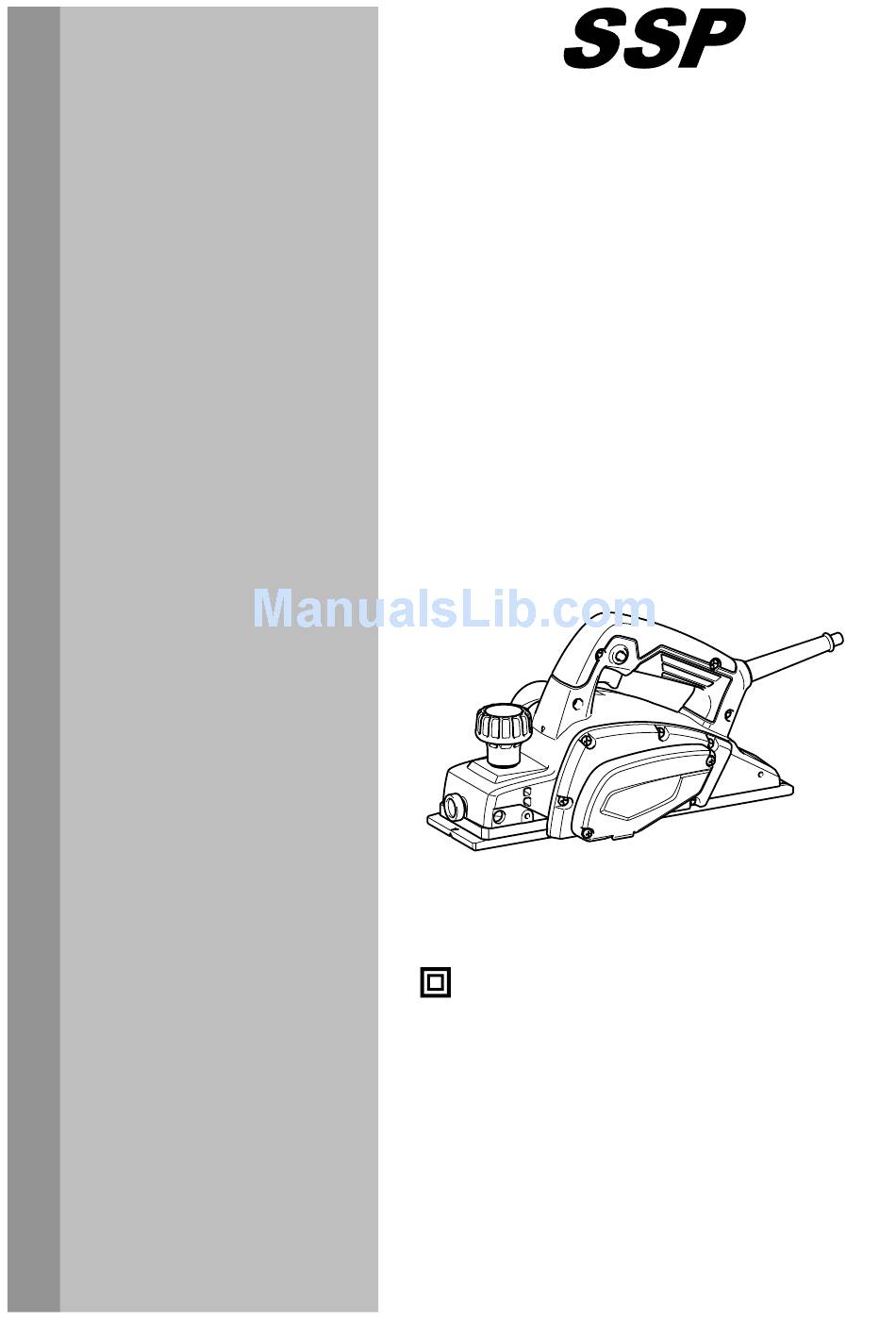

- Page 1 INSTRUCTION MANUAL Power Planer MKP082 011863 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model MKP082 Planing width 82 mm Planing depth 2 mm Shiplapping depth 9 mm No load speed (min 16,000 Overall length 285 mm Net weight 2.7 kg Safety class • Due to our continuing programme of research and development, the specifications herein are subject to change without notice. -
Page 3: Planer Safety Warnings
Do not abuse the cord. Never use the cord for Power tool use and care carrying, pulling or unplugging the power tool. 18. Do not force the power tool. Use the correct Keep cord away from heat, oil, sharp edges or power tool for your application. -
Page 4: Functional Description
could give the operator an electric shock. FUNCTIONAL DESCRIPTION Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body CAUTION: leaves it unstable and may lead to loss of control. Always be sure that the tool is switched off and •... - Page 5 For tool with conventional planer blades CAUTION: 1. Socket wrench Do not pull the switch trigger hard without • 2. Bolts depressing the lock-off button. This can cause switch breakage. Foot 1. Planer blade 2. Rear base 3. Foot 011867 1.
- Page 6 For tool with mini planer blades 1. Mini planer 1. Socket wrench blade 2. Bolts 2. Groove 3. Set plate 4. Bolts 5. Drum cover 6. Drum 7. Adjusting plate 011928 Set the drum cover over the adjusting plate/set 011867 Remove the existing blade, if the tool has been in plate and screw in the three bolts so that a gap use, carefully clean the drum surfaces and the...
-
Page 7: Correct Setting
For the correct planer blade setting Your planing surface will end up rough and uneven, unless the blade is set properly and securely. The blade must be mounted so that the cutting edge is absolutely level, that is, parallel to the surface of the rear base. Refer to some examples below for proper and improper settings. -
Page 8: Planing Operation
Draw a cutting line on the workpiece. Insert the edge OPERATION fence into the hole in the front of the tool. Align the blade Hold the tool firmly with one hand on the knob and the edge with the cutting line. other hand on the switch handle when performing the 1. -
Page 9: Maintenance
Chamfering 1. Wing nut 2. Blade (A) 3. Blade (B) 4. Side (D) 5. Side (C) 002589 First, loosen the two wing nuts on the holder and insert 003634 the blades (A) and (B), so that they contact the sides (C) and (D). - Page 10 1. Brush holder 2. Screwdriver 011875 Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.
- Page 12 Makita Corporation Anjo, Aichi, Japan www.makita.com 885032-931...
