Summary of Contents for Prestige Venus W15

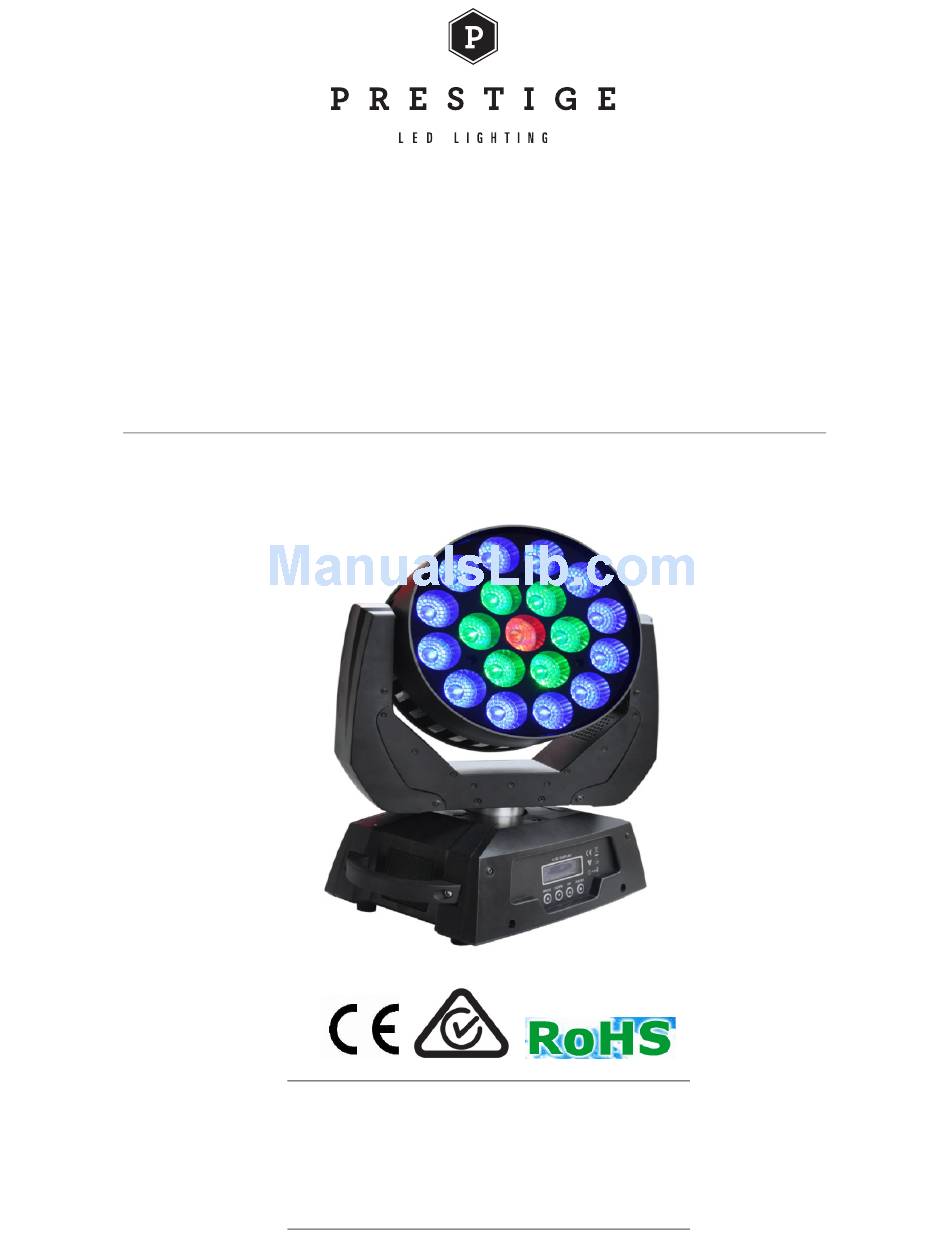

- Page 1 Venus W15 LED Moving Wash (French Lens) USER MANUAL LED MOVING HEAD LIGHT (OSRAM RGBW 4-IN-1 19*15W)
-
Page 2: Table Of Contents
7. Menu Instructions 9 8. XLR cable connecting 11 XRL cable 11 9. Wiring Diagram 12 10. Trouble Shooting 13 11. Technical Specifications 14 2 Venus W15 LED Moving Wash French Lens – User Manual... -
Page 3: Product Introduction
PRODUCT INTRODUCTION The Venus W15 LED Moving Wash has a light source that uses high powered OSRAM 4-in-115W LED lights, each made up of R, G, B, and W LEDs which can be independently dimmed and altered. This fixture has a long life span, low power consumption, good colour mixing effects and high brightness. -
Page 4: Safety Instructions
Make sure there are no inflammable and explosive items within 0.5 meters of the fixture. The yellow/green cables are for earthling safety. These should not flicker when fixture is in use. 3. PRODUCT DIAGRAM 4 Venus W15 LED Moving Wash French Lens – User Manual... -
Page 5: Features
DMX channels optional, 19CH,23CH o Five kinds of dimming mode，Dimmer1~4。OFF for not use. Dimming smooth without flicker from Dimmer1 to Dimmer4, smoothness from weak to strong respectively. 5 Venus W15 LED Moving Wash French Lens – User Manual... -
Page 6: Dmx Control
0-255 Zoom (zoom in - zoom out) 23CH 0-10 Use menu to set the 11-20 Dimmer 21-30 Dimmer off 31-40 Dimmer 1 41-50 Dimmer 2 51-60 Dimmer 3 6 Venus W15 LED Moving Wash French Lens – User Manual... -
Page 7: 19Ch
0-10 Use menu to set the 11-20 Dimmer 21-30 Dimmer off 31-40 Dimmer 1 41-50 Dimmer 2 51-60 Dimmer 3 61-254 Dimmer 4 255-255 Setted Dimmer Reset（5 seconds） 7 Venus W15 LED Moving Wash French Lens – User Manual... -
Page 8: Display Operation Instructions
6. DISPLAY OPERATION INSTRUCTIONS Graphic 1: DMX512 DMX-IN XLR socket 2: DMX512 DMX-OUT XLR socket 3: AC POWER-IN socket AC100-240V 50-60Hz 4: FUSE 5A 5: power switch ON/OFF 8 Venus W15 LED Moving Wash French Lens – User Manual... -
Page 9: Menu Instructions
0-255 0-255 0-255 0-255 0-255 0-255 CH10 0-255 CH11 0-255 CH12 0-255 CH13 0-255 CH14 0-255 CH15 0-255 CH16 0-255 CH17 0-255 CH18 0-255 CH19 0-255 CH20 0-255 9 Venus W15 LED Moving Wash French Lens – User Manual... - Page 10 Auto Running… Resume default Yes/No Fixture reset Yes/No Note: When operating in the sound activated mode or automatic mode, the machine will transmit the data as the master. 10 Venus W15 LED Moving Wash French Lens – User Manual...
-
Page 11: Xlr Cable Connecting
120 （1/4W）at the end of the DMX connection as shown below: The conversion between 3 pin and 5 pin XLR. If the output cable of the DMX512 controller is a 5PIN, a 5PIN to 3PIN cable is necessary. 11 Venus W15 LED Moving Wash French Lens – User Manual... -
Page 12: Wiring Diagram
9. WIRING DIAGRAM 12 Venus W15 LED Moving Wash French Lens – User Manual... -
Page 13: Trouble Shooting
Use the multimeter (diode) to check if the LED is bright or not. If not, are not light the LED will need replacing. Check constant current IC is working properly (compared with the normal IC). 13 Venus W15 LED Moving Wash French Lens – User Manual... -
Page 14: Technical Specifications
Beam angle: 8º-52º o Cooling mode: Fan cooling o Protection rate: IP20 o Anti-electricity intension: 1.5KV o Insulation resistance: ＞２M o Size: 320*254*398mm o Net weight: 15 Kg 14 Venus W15 LED Moving Wash French Lens – User Manual... - Page 15 15 Venus W15 LED Moving Wash French Lens – User Manual...
