Smart I smartentry User Manual page 5

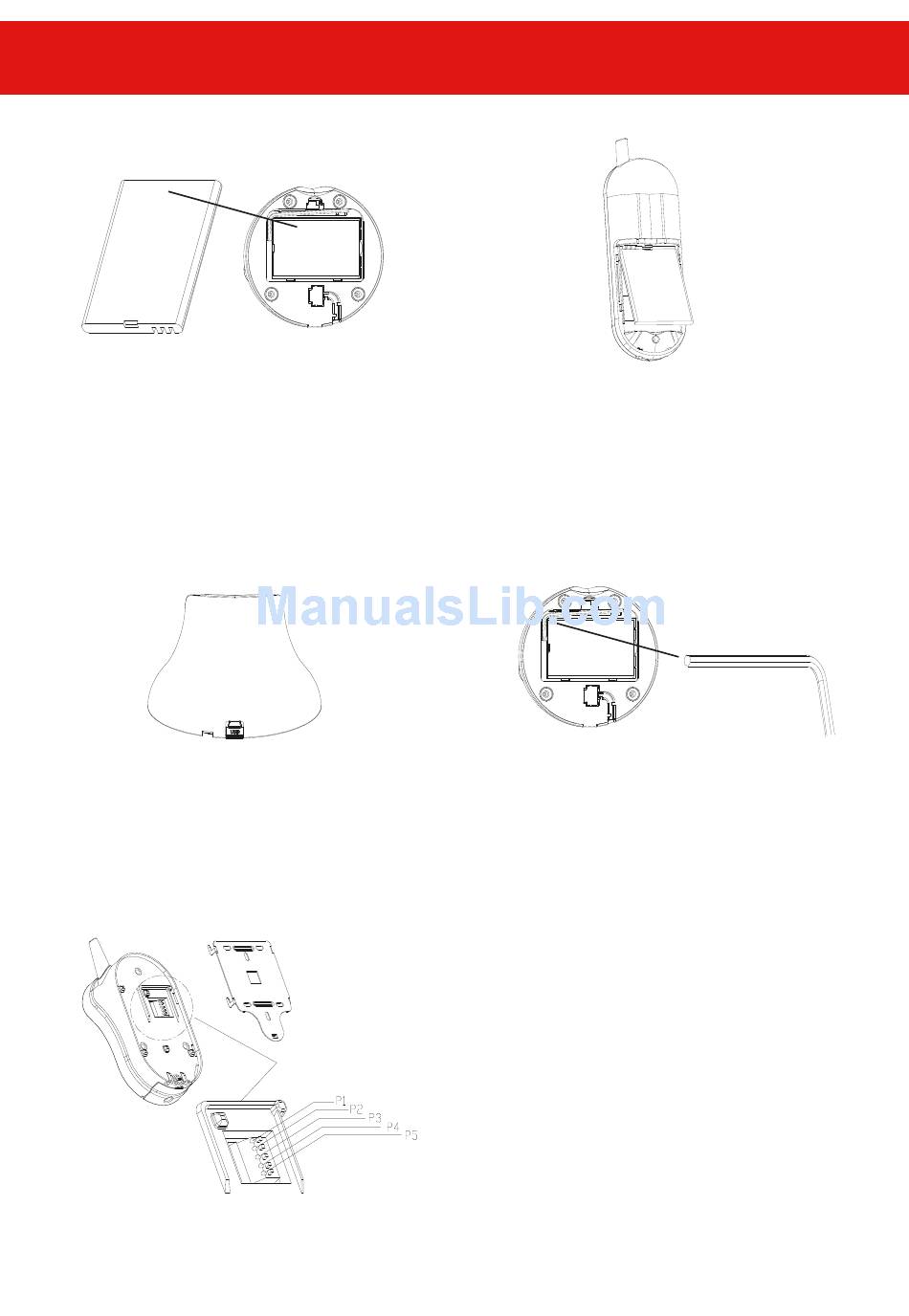

3. Locate the battery at the bottom of
the charging station.
Charging Station
1. Rear view of the base station showing
it's USB connector. This can be used to
charge your handset's battery.
Outdoor Camera Installation & Power Lock Connection
P1: 5V Power Supply Positive
P4: Common
4. Insert the battery with contacts facing
the top and insert at an angle (shown
above) and push in.
When inserted, put the back panel back
onto the handset.
2. If you look at the bottom of the base
station there is an Allen Key, this is used
to open the outdoor camera battey holder.
P2: 5V Power Supply Negative
P5: Relay Open (NO)
Back Wiring Diagram
You will need to drill a hole in your
mounting area for the cable to run
through.
Please note that the NO, NC and
Common are for an electric door release
(not provided) and will require additional
power. Please refer to the manual for
the electronic door release.
P3: Relay Closed (NC)
5
