Summary of Contents for jokab safety Knox

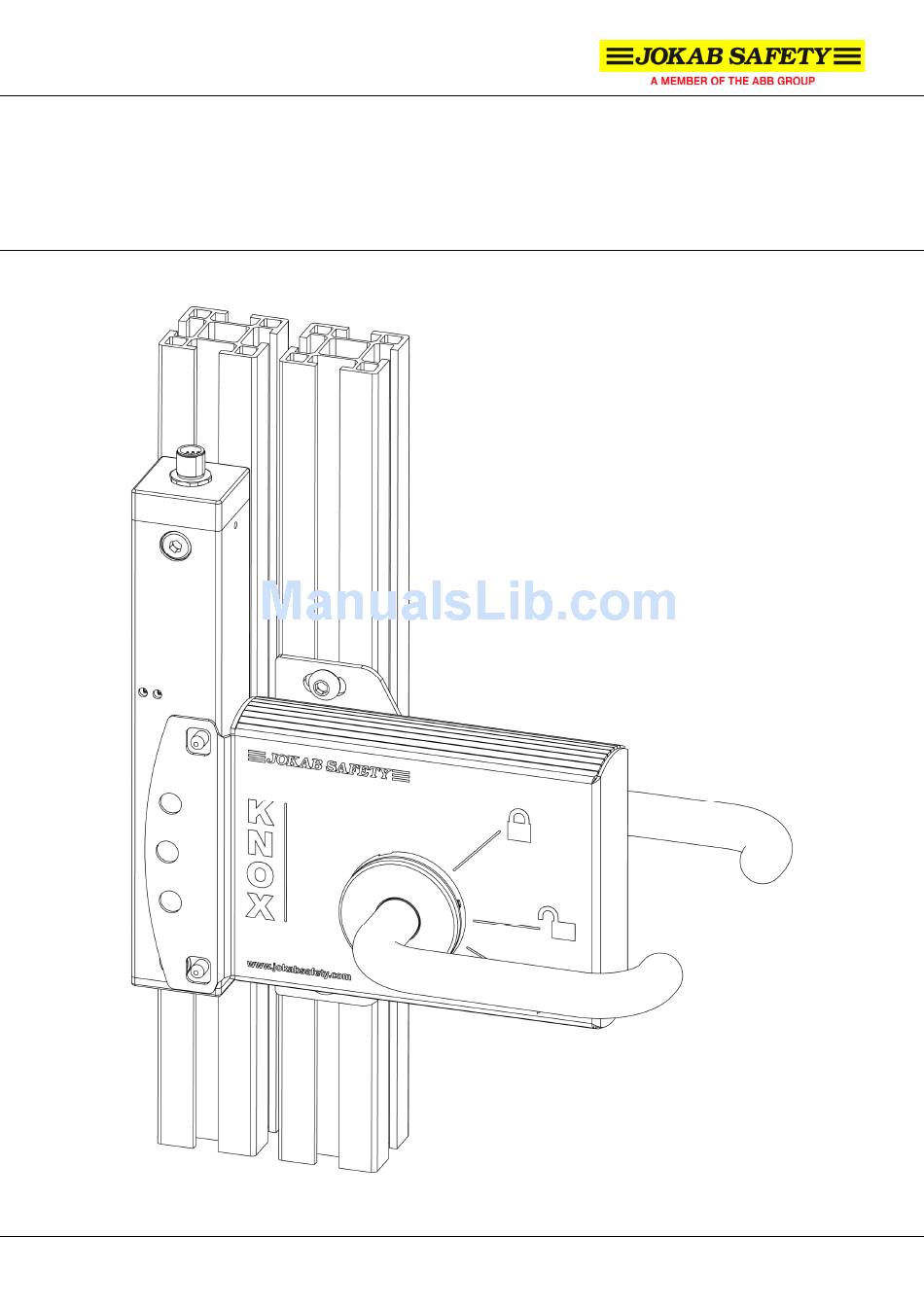

- Page 1 Original instructions Knox Safety lock Jokab Safety AB Varlabergsvägen 11, S-434 39, Sweden www.jokabsafety.com...
-
Page 2: Table Of Contents
Table of Contents Introduction..........................3 Scope ..............................3 Audience ............................. 3 Prerequisites ............................3 Special notes............................3 Overview........................... 4 General description ..........................4 Safety regulations ..........................4 Function description ..........................5 Connections..........................6 Connection examples.......................... 7 Installation and maintenance ....................9 Assembly instructions ........................ -
Page 3: Introduction
The instructions also include information necessary to connect Knox to a safety circuit. Note that Knox can be connected to both Vital and Pluto, but specific connection examples are left out of these instructions and can be found at www.jokabsafety.com or in the Safety Handbook. -
Page 4: Overview
2 Overview General description Knox is a double lock that complies with the highest safety level (two lock cylinders with monitored positions) that can be used both as a safety and process lock. The locking function is electronically controlled and is bi-stable, i.e. it retains its position (unlocked/locked) in the event of a power failure. -
Page 5: Function Description
Function description Reset, openable Opened Emergency opened Operational mode; locked and reset (emergency opening only) • “Open”: Door open, outer handle pressed down and emergency handle in horizontal position. • “Reset, openable”: The safety device is reset but the door is unlocked and can be opened from either side. -
Page 6: Connections
Caution! All cable colours according to Jokab Safety standard cable. Warning! Knox has an information output able to indicate if the door is locked or not. There is also a built-in Eden sensor which also has an information output for indication. All information channel outputs are non-safe and must therefore never be used to control a safety application. -
Page 7: Connection Examples
Connection examples Connection example: Signal for unlocking from other safety system NB: The system will lock Knox if there is no signal for unlocking. NB: Vital 1 is used to monitor the locking Warning! System must be connected using fuse of max 6 A. - Page 8 Connection example: Knox with locking on a relay Caution! Output from Pluto Q02 and IQ11 must never be set at the same time. Warning! System must be connected using fuse of max 6 A. More connection examples can be found at www.jokabsafety.com or in the Safety Handbook.
-
Page 9: Installation And Maintenance
4 Installation and maintenance Knox_Manual_(English)_v1B www.jokabsafety.com 2010-10-01... - Page 10 Knox_Manual_(English)_v1B www.jokabsafety.com 2010-10-01...
-
Page 11: Assembly Instructions
(or 104 mm from the edge of the door). The diameter of the hole should be 45- 60 mm. b. If Knox is to be mounted on a net door, an extra PC plate (article number 20-106-00) can be placed on the net to prevent the door from being opened from the outside or reset from the inside (e.g. -
Page 12: Operation
2. Open the door. Caution! Never try to force the lock as it can cause permanent damage to the product. Knox is by design equipped with a break pin on the inside of the handle shaft to make sure it breaks before any safety critical part is damaged. -
Page 13: Model Overview
6 Model overview A complete Knox contains one door part and one frame part. Type Article number Description Knox 1A-R 20-105-00 Door part for right hung outward opened door Knox 1A-L 20-105-01 Door part for left hung outward opened door... -
Page 14: Accessories
Accessory 20-106-05 opened door Tina 12A 20-054-18 Distribution block for two Knox Rebuilding frame for door part, from left Rebuilding frame for door part, from right to right hung outward opened door. to left hung outward opened door. Article number: 20-106-02... -
Page 15: Technical Data
15 g, 11 ms half sine (according to IEC 60068-2-27) ± 3 shocks Warning Knox locks mechanically. Forcing the lock may damage Knox permanently. Safety / Harmonized standards Approved standards European Machinery Directive 2006/42/EG EN ISO 12100-1:2003, EN ISO 12100-2:2003,... -
Page 16: Dimensions
Dimensions Knox dimensions Knox mounting holes NB: All measurements in millimetres. Knox_Manual_(English)_v1B www.jokabsafety.com 2010-10-01... -
Page 17: Cad Model
Safety AB – SolidComponents”. 5) In the new window there is a menu to the left, showing different product categories. Knox belongs to the category Sensors/switches, find it in the list and click it. If the language changed in the new window, click the corresponding flag at the top of the page to choose language again (Swedish, English or German available). -
Page 18: Ec Declaration Of Conformity
8 EC Declaration of conformity EC Declaration of conformity (according to 2006/42/EC, Annex 2A) JOKAB SAFETY AB declare that the safety components of JOKAB SAFETY manufacture Boplatsgatan 3 with type designations and safety functions as listed below, is in SE-213 76 Malmö...
