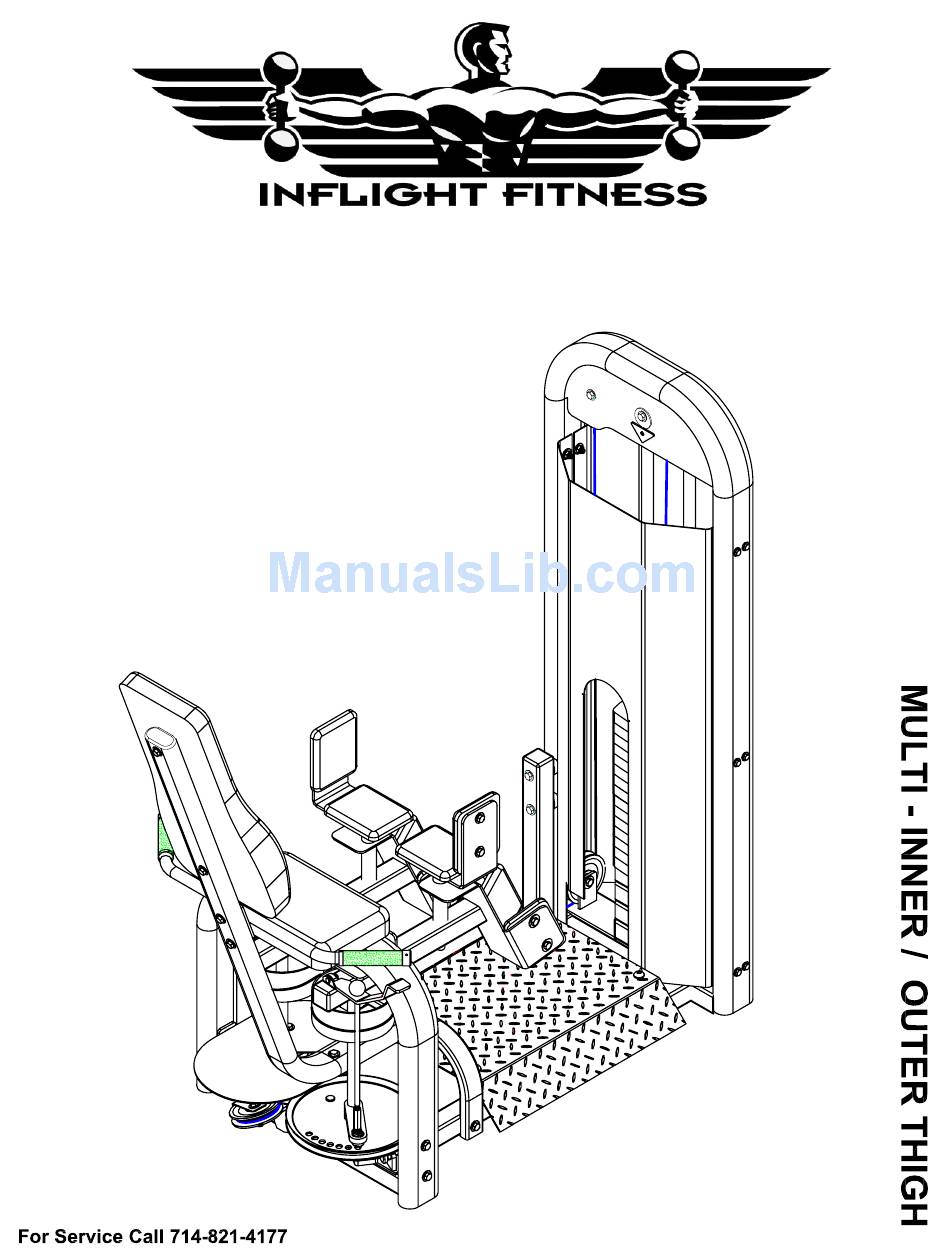

Summary of Contents for Inflight Fitness Multi-inner
-
Page 3: Important Notices
Maintain your machine in good working order by following the maintenance schedule provided on the equipment. It is strongly recommended that a qualified dealer assemble this Multi-Inner/Outer Thigh machine. Should there be any question during assembly contact your authorized Inflight Fitness dealer or call direct to 714 821 4177. -
Page 4: Mio Parts And Hardware
MIO PARTS AND HARDWARE PARTS WHITE / PLATINUM FRAME PARTS Loop Upright Seat Upright Left Base Frame Right Base Frame Cross Brace Bent Support Tube Guide Rod Bracket Thigh Brace (2) Seat Handle Cam Reversing Bar Cable Retainer (3) Bearing Bracket Left Leg Support Right Leg Support Cable Attach Bracket... - Page 5 MIO PARTS AND HARDWARE HARDWARE DESCRIPTION QUANTITY Bolts 3/8” x 7 ¾” 3/8” x 6 ¾” 3/8” x 5 ¼” 3/8” x 3 ¾” 3/8” x 3 ½” 3/8” x 3” 3/8” x 2 ¾” 3/8” x 2 ½” 3/8” x 2 ¼” 3/8”...
-
Page 6: Main Structure Assembly
MIO ASSEMBLY INSTRUCTIONS MAIN STRUCTURE ASSEMBLY A. Assemble the Right Base to the Loop Upright using 2 – 3/8” x 7 ¾” bolts, 4 – 3/8” flat washers and 2 – 3/8” nuts. B. Assemble the Left Base to the Loop Upright using 2 – 3/8” x 6 ¾” bolts, 2 – 3/8”... -
Page 8: Weight Stack, Cable And Pulley Installation
MIO ASSEMBLY INSTRUCTIONS WEIGHT STACK, CABLE AND PULLEY INSTALLATION L. Insert Guide Rods into the base of the Loop Upright. Allow Guide Rods to lean back away from the machine. Place the four Weight Stack Tubes onto the Guide Rods and slide down to the base. Place one weight stack cushion on each Guide Rod and slide down to the base. - Page 10 MIO ASSEMBLY INSTRUCTIONS CABLE INSTALLATION (CONTINUED) R. Continue the cable to the short threaded shaft welded to the inside of the Left Base. Routing the cable along the outside of a 4 ½” pulley, attach the pulley and a Cable Retainer using 1 – 3/8” x 1 ½”, 1 – 3/8” flat washer. S.
-
Page 12: Equalizer Cables And Cable Adjustment
Base. Thread the bumper in or out to adjust the alignment of the pop pin to the first slot in the Cam. Tighten the jam-nut. 5. Once the Multi-Inner/Outer is completely assembled, loosen bolt that attaches pulley and Guide Rod Bracket to the Loop Upright (installed at step M.). Raise or lower the bolt and pulley to remove slack from the cables. - Page 14 MIO ASSEMBLY INSTRUCTIONS PLACARDS AND LABELS 6. Remove backing from foam tape on Instruction Placard. Align the Instruction Placard parallel to the top of the Loop Upright and place approximately 3/8” equally in from the edges of the Loop. 7. Attach Weight Labels in recess provided on front of Weight Plates. All the recesses should be aligned and to the right as you face the weight stack.
