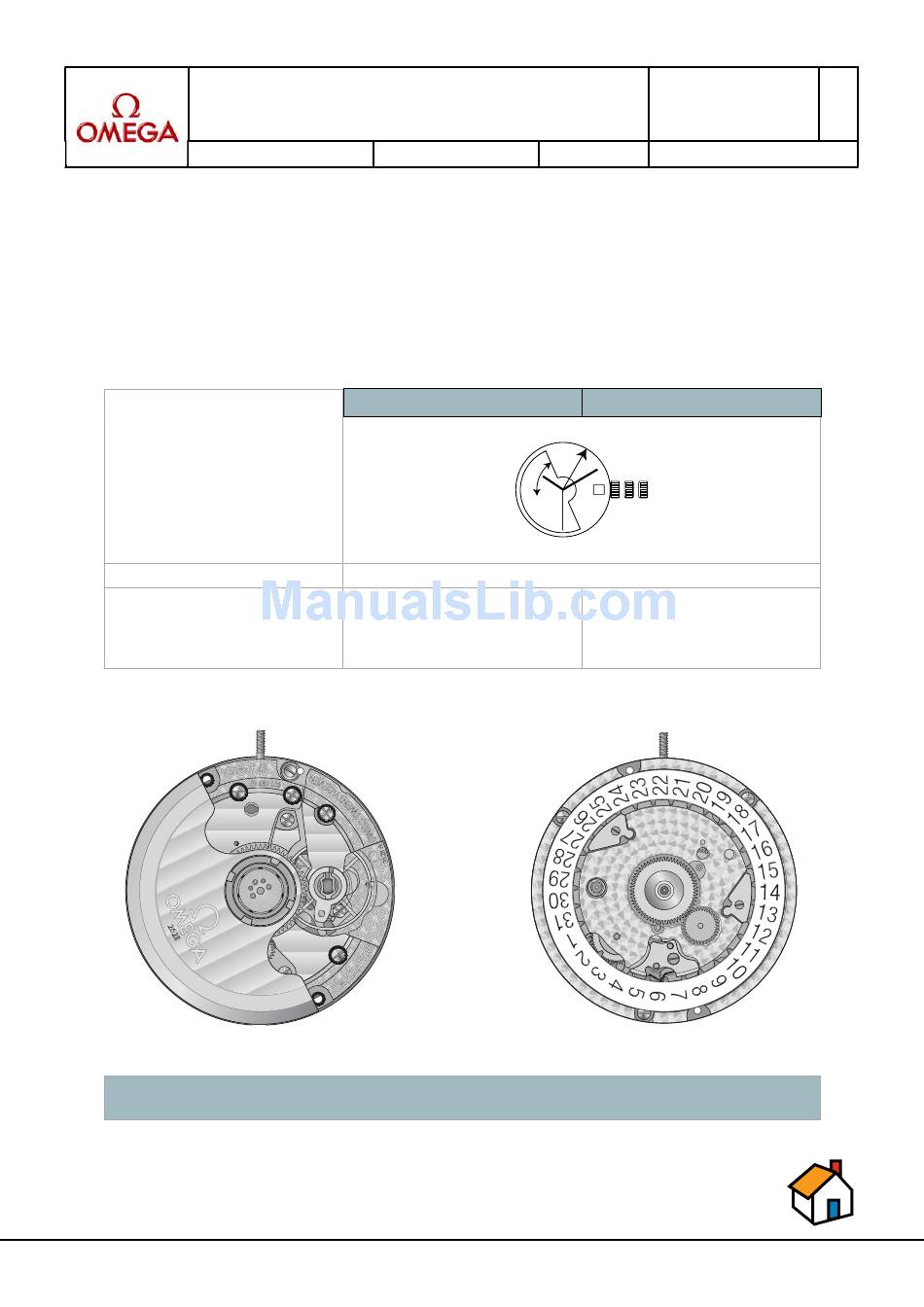

Technical Guide
Produced by : pelrom Date: 09.10.2008
11
1/2'''
Ø 25,60 mm
Height on movement
Power reserve
Number of jewels
Frequency
Lift angle
Automatic movement, Co-Axial escapement, date, Time zone function, GMT, COSC-certified,
Omega balance system without index. GMT, hour, minute and second hands in centre.
OMEGA SA
CALIBRE
2628
Version A
44 h
27
4 Hz (28'800 A/h)
30° / 38°
WORLD SERVICE ORGANIZATION
TG-19-C-006-E
3
Version B
1 2 3
5.20 mm
48 h
27
3.5 Hz (25'200 A/h)
38°
GT-19-C-006-E - D - 2628
D
/1
