Summary of Contents for Polar Krush POL1

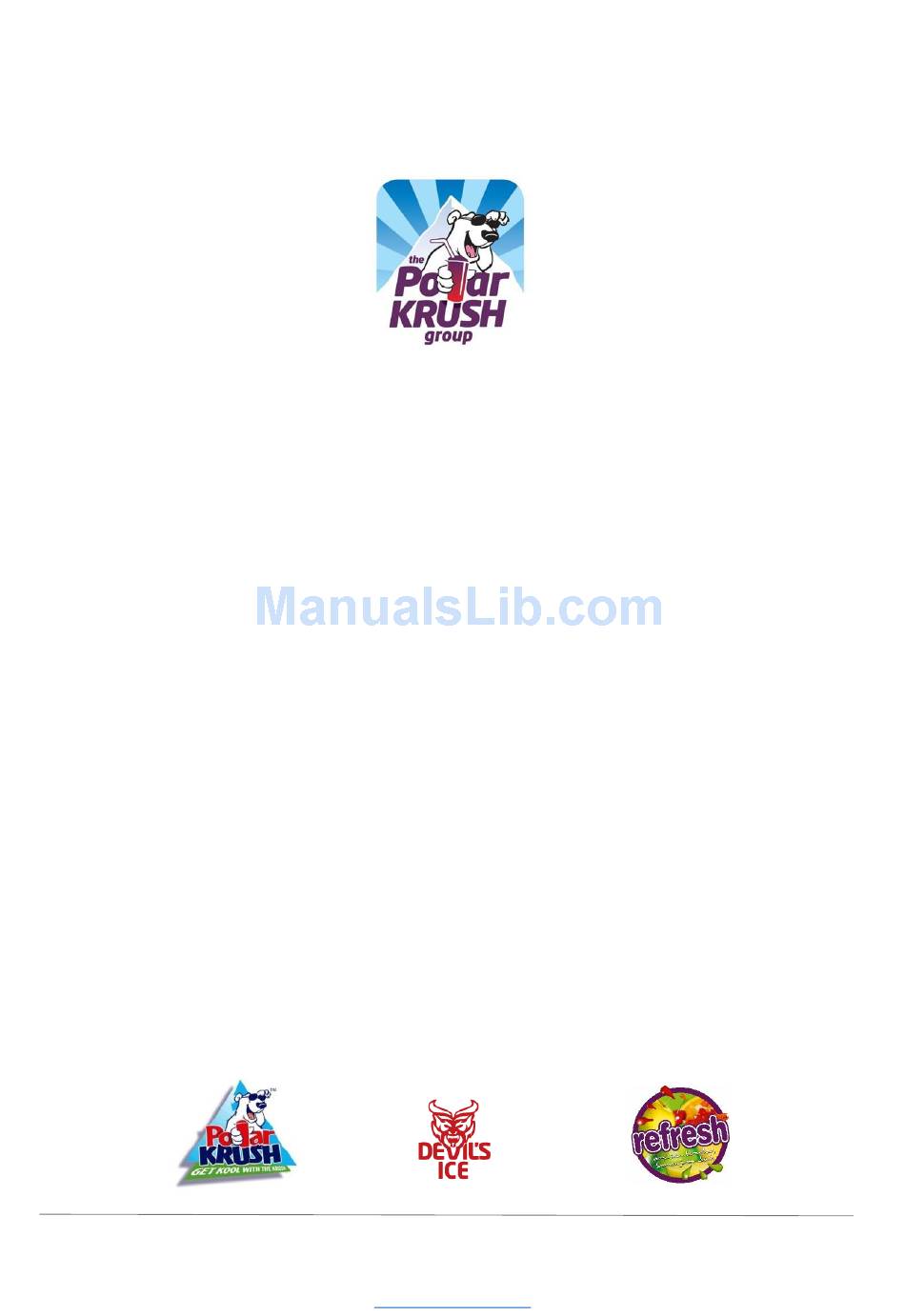

- Page 1 Machine Operating Manual For use with Polar Krush, Devil’s Ice and Refresh Free on Loan Refurbished Machines Polar Krush Group, Unit 10, Wansbeck Business Park, Rotary Parkway, Ashington, Northumberland, NE63 8UQ Telephone 01670 818666 or 0845 250 0757 www.polarkrush.co.uk...
- Page 2 For hygiene purposes, we recommend that you carry out your cleaning schedule and check your filter at least fortnightly. This publication is the property of the Polar Krush Group and should not be reproduced without written permission.
-
Page 3: Table Of Contents
Contents • Setting up your Machine • Preparing the Product • Freezing and Adjustment • The Control Panel • Cleaning your Machine • Cleaning the Filter • Frequently Asked Questions • Maintenance and Cleaning Log... -
Page 5: Setting Up Your Machine
Setting up your Machine 1. Position your machine where you will be using it. Your machine will need to have a 240 volt electric power supply. 2. Plug the machine into the mains. 3. You will need to ensure that there is a clearance of 20cm at the back and both sides of the machine. -
Page 6: Preparing The Product
Preparing the Product 1. Pour the concentrate into a clean product bottle and fill to the top of the concentrate line. 2. Fill the bottle up to the neck using the coldest water possible, as the colder the water, the less time it will take for your machine to freeze down. -
Page 7: Freezing And Adjustment
Freezing and Adjustment The first time you start up your machine, it will freeze down within two and a half hours. However when you freeze it down each day afterwards, it will take less time. Because these machines are refurbished, and the compressors may have been replaced, there may be some variation in freezing time between the two sides. - Page 8 4. When you have slush that is fairly thick but is still being turned by the spiral, your slush is ready to serve. If you try to serve your slush, and its consistency is either too solid or too runny, you can alter its consistency by adjusting the torque setting on the back of the machine.
-
Page 9: The Control Panel
The Control Panel 1. The control switchboard for the Polar Krush machine is shown below. 1. Motor - left spiral 2. Left hand side freezer 3. On and Off switch 4. Motor - right spiral 4 5 6 5. Right hand side freezer 6. -
Page 10: Cleaning Your Machine
Cleaning your Machine 1. Use the taps to empty the product from each of the two bowls into suitable clean container. Remove the clear lids from the bowls. 2. Remove upper mixing arm by applying gentle pressure on the front end of the stainless steel rod to remove from plastic location on the inside front of the bowl. - Page 11 5. Gently ease the bowls out of their position by moving them downwards forwards. Carefully release the bowl from the red seal at the back, taking care not to spill any syrup that may be remaining in the bowls. 6. Unscrew the spiral retaining nut, remembering turn...
- Page 12 Please note that the flat face of the seal is toward the machine and the curved face is toward the bowl. You Curved face will need to remember this when you reassemble the machine after cleaning. Flat face 8. Clean the cylindrical evaporator and the blue plastic tray underneath with a soft damp cloth.
-
Page 13: Cleaning The Filter
Cleaning the Filter 1. A removable filter is fitted to the machines, so you will need access to the back of the machine. Remove the black plastic knob. 2. Gently ease off the back panel from the top, taking care to avoid damaging the screw thread.
