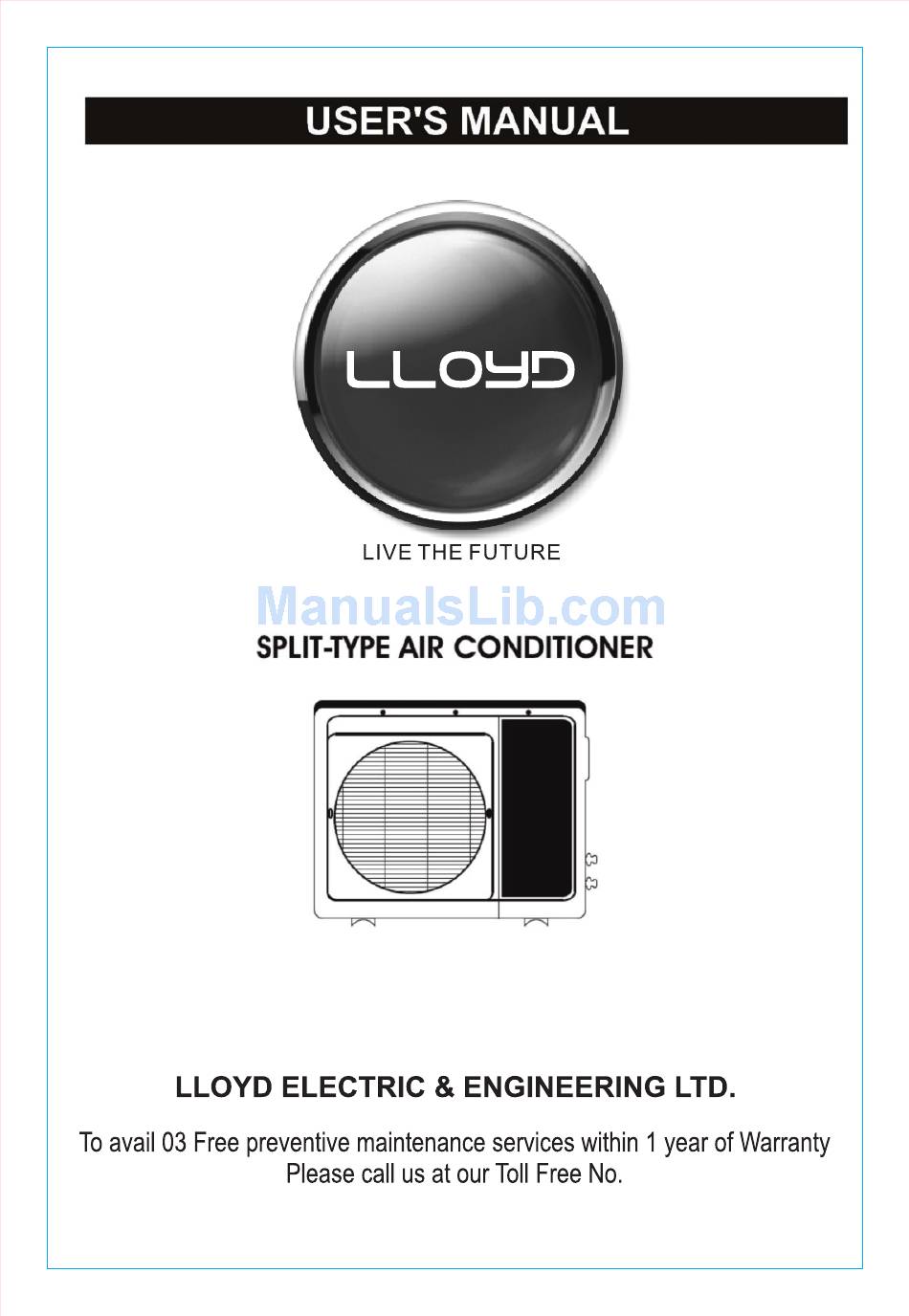

- Page 1 Tower Air Conditioner Gujarat:1800-2582-583 | Maharashtra:1800-1024-212 Punjab/Himachal/J & K:1800-1377-781 | South India:1800-1200-666 | Rest of India:1800-1020-666...
- Page 2 product.
-
Page 3: Table Of Contents
CONTENTS Safety Precautions Parts Description Other operations Items of attention Maintenance Installation Guide Selection of the installing position Installation the air-conditioner Pipe and drain pipes connection Wiring connection Expelling the air Test running Packing list... -
Page 4: Safety Precautions
Safety Precautions Read and understand thoroughly this safety awareness before use. The items indicated here are very important safety precautions, which must be followed. WARNING ！ ！ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards... -
Page 5: Parts Description
Notice: Don't let the child touch the air-conditioner to avoid the possible danger. Keep the indoor unit and the remote controller dry to avoid short circuit ,even fire accident. An all-pole disconnection device which has at least 3mm separation distance in all-pole shall be incorporated in the fixed wiring according to the safety rule. - Page 6 Controlling panel - 3 -...
-
Page 7: Other Operations
Other operations When you electrified the A/C at the first time. The screen display full screen, the guide baffles go to the place. Then the deflecting damper will auto-dose. In all process, Please do not more the corner vane aud deflecting damper by hand. Wind direction adjustment In order to guarantee an even diffusion of the air in the room, you can choose one way as follows to control:... - Page 8 ★ Safety tips 1.Installation should always be carried out by specialist. The customers should not install the air-conditioner by themselves. Otherwise, it may cause damage or injury. 2.In order to use the air conditioner properly, please refer to its working temperature range. Otherwise, indoor unit automatic protection function may be activated, cooling or heating efficiency will be weakened.
-
Page 9: Maintenance
Maintenance ★ Failure type and methods of resolution In case the following situation, please immediately stop the operation of the air-conditioner and cut off the power supply, then contact with distributor. The RUN light or other display light flashes rapidly and keep flashing after the plug is taken off and then plugged in. - Page 10 ⑴ The fan of the indoor and outdoor unit will stop under frost dissolving operation. ⑵ The time for frost dissolving varies in range of 4 to 10 minutes according to the out-door temperature and the frost extent. ⑶ It is normal phenomenon that there may be steam coming out from the outdoor unit during the frost dissolving operation.
- Page 11 ★ Clean ！ WARNING: For the purpose of safely, please turn off the air-conditioner and cut off the power supply before cleaning. ☆ Cleaning the indoor unit 1.Wipe the indoor unit with dry cloth . 2.If the indoor unit is very dirty, please wipe with wet cloth dipped by cold water. 3.The panel of indoor machine may be taken off.
-
Page 12: Installation Guide
Installation Guide ★ Guide for customer ● The installation must be done by professional referring to the“Installation instructions”. ● The wiring must be done by qualified electrician according to the electrical safety requirements. ● The customer should have a qualified power supply which coincides with the tag of air conditioner, the normal voltage should be in the range of 90-110% of its rated voltage. -
Page 13: Selection Of The Installing Position
★ Notices for R410A models N 842/2006： If the air conditioner you bought used the refrigerant R410A, the amount of refrigerant is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming,if it is released to the atmosphere. -
Page 14: Outdoor Unit Installation
Mode 1 roof outlet bore Mode 2 Fig 1 Fig 2 Fig 3 ★ Outdoor unit installation ● The outdoor unit must be firmly fixed to avoid falling in the the strong wind. ● Install on the cement base as the drawing below. ●... -
Page 15: Pipe And Drain Pipes Connection
Pipe and Drain pipes Connection Indoor Unit Position of the pipes ※ Select suitable position to make according to the location of indoor and outdoor units. Pipe connection ※ Take the pipes out of the accessory case. ※ Pull the pipes and cables from the holes and turn away the block things in the pipe. ※... -
Page 16: Wiring Connection
Outdoor Unit ※ Make the pipe align at the center of the stop valve. Outdoor unit ※ Turn away the block from the pipe and the cap from Pipe with the stop valve. high pressure ※ Aligning at the pipe,tighten the screw with your fingers. ※... -
Page 17: Outdoor Unit
Cover Terminal board Input bar Heat pump Type Cold wind Type Yellow Yellow Plastic strap /Green /Green To power source To power source Power wire Connector Fastener for Supporting cable connection 12000W plate for foamy shell L1 L2 Heat pump Type Cold wind Type L1 L2 Red Green Brown Black... -
Page 18: Expelling The Air
Expelling the air Expelling the air: humid air in the refrigerating system might cause trouble of compressor. ●Take off the cover from the stop valve and T-branch valve. ●Take off the auxiliary cover from the T-branch valve. ●Turn the stop valve rod anti-clock wise to an angle of 90 degree, keep it open for 8 seconds and close the valve. -
Page 19: Test Running
Test running ● Make sure that pipes and wires are connected. ● Make sure that liquid side valve and air side valve both are completely open. 1. The connection of power source ● Connect the wire to independent power source socket. ●... - Page 20 TWELVE...
