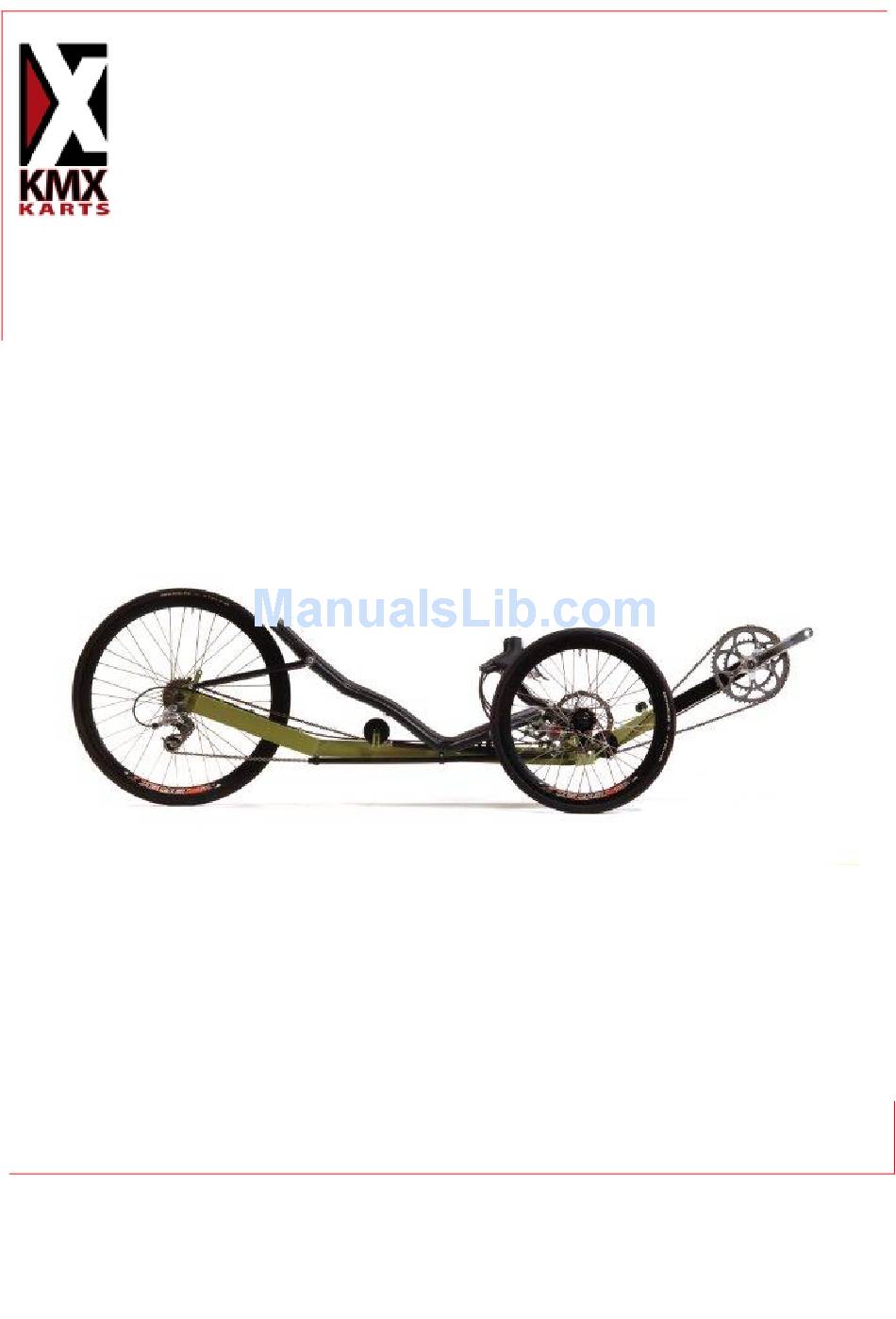

- Page 1 Performance & Sports Trike Assembly Instructions...
-
Page 2: Table Of Contents
Contents 1.0 Introduction 2.0 you need to read this manual £ 3.0 Your KMX Parts 4.0 Assembly and technical details 5.0 Guidelines for safe use 6.0 Maintenance 7.0 Guarantee conditions 8.0 Guarantee certificate... -
Page 3: Introduction
You are now the proud owner of a fantastic Performance or Sports KMX£, which will provide many years of enjoyment. KMX Karts Ltd does its utmost to design and produce safe and fun products and so the utmost care has been used to ensure that your KMX£ is strong, safe and durable. -
Page 4: Your Kmx £ Parts
3.0 Your KMX Parts £ 1 Pedal 11 Rear brake park button 21 Rear Derailleur 2 Crank 12 Adjustable Seat 22 Main Frame 3 Front Sliding Boom 13 Seat clamps 23Safety flag holder 4 Front Boom Clamps 14 Chain and Chain tubes 24 Front chain rings 5 Front wheel pivot bolts 15 Front Wheel Axle Bolt... -
Page 5: Assembly Instructions
4.0 Assembly Instructions Assembly Instructions Carefully remove all the items from the box and remove the protective packaging. Stand the box on it’s open end and place the trike frame on top. (Photo 1) Photo 1 Photo 2 HANDLE BARS & STEERING Insert the handlebars fully into the handlebar mounts. - Page 6 Photo 5 Photo 6 Locate the rear wheel into the frame. Secure the wheel using the axle nuts or quick release clamp provided. (Photo 6). REAR DERAILLEUR & BRAKE Select the highest gear on the right hand handlebar gear changer. Place the chain over the smallest rear sprocket and attach the derailleur to the gear hanger using a 5mm allen key.
- Page 7 FRONT BOOM ASSEMBLY FOR PERFORMANCE MODELS GO TO: NO. 11 SPORT MODELS: Insert the boom into the front frame and attach the pedals. Note: The left hand pedal has a left hand thread. Take the chain coming from the pulley closest to the frame and place this over the top of the front chain ring.
- Page 8 Chain Connection: First count the number of visible markings on the top of your boom. Refer to the table below to set the correct chain length. This will require a chain splitting tool and a suitably qualified person. Chain Length Chart Number of Visible Markings Number of Chain Links To Be Removed Once you have determined how many links need to be removed from the chain, cut...
- Page 9 Select the appropriate seat position referring to the chart below: X SEAM SEAT POSITION 36 inch to 38 inch – 91cm to 96cm Forward 38 inch to 40 inch – 96cm to 101cm Middle 40 inch to 44 inch – 101cm to 111cm Rear Lower the seat clamp onto the selected seat position on the main frame.
- Page 10 Photo 14 Photo 15 Tighten and adjust the brakes as per the manufacturers instructions. Fitting the Accessories FOR BOTH SPORT AND PERFORMANCE MODELS Fit the mudguard to the top of the seat, using the bolt, washers and nut provided. (Photo 16) Photo 16 Photo 17 If required fit the Flag to the rear wheel axle by first loosening the quick release clamp...
- Page 11 CONGRATULATIONS YOU ARE NEARLY THERE! BUT …… BEFORE YOU RIDE! YOU NEED TO SET UP AND ADJUST YOUR TRIKE! Place the trike on the floor, sit in the seat and readjust the seat for the most comfortable angle, using the threaded holes in the seat stay adjuster rods. Adjust the boom length so that your right leg is straight with no bend at the knee when the right pedal is at its furthest point and your heel is on the pedal.
- Page 12 25. Make sure the front wheels have the correct toe in. Measure between the inside of the front tyres in the positions shown (See Photo 29). Loosen the lock nuts at either end of the steering rod (Left & Right hand threaded). Turn the rod until the measurement between the front of the tyres is 2mm less than between the rear of the tyres.
-
Page 13: Guidelines For Safe Use
Do not allow your KMX£ to be pulled by any other vehicle. KMX Karts Ltd, the suppliers of the KMX£ and/or the manufacturer do not accept any liability for any injury or any other damage sustained and any incurred costs as a result of (wrongfully... -
Page 14: Maintenance
6.0 Maintenance Every time before you ride: Inflate tires to correct pressure. Replace tyres if worn. Test Brakes for correct operation. Approx. time: Check quick release clamps on 4 minutes. both seat and front boom to insure they are locked and tight. Inspect tires for damage. -
Page 15: Guarantee Conditions
7.0 Guarantee conditions The KMX£ owner can only claim under the guarantee by showing the original purchase receipt together with the completed guarantee certificate. The owner of the KMX£ can claim the following guarantee with the acceptance of the following restrictions: •... -
Page 16: Guarantee Certificate
8.0 Guarantee certificate GUARANTEE CERTIFICATE (Purchaser copy) Date of Purchase: Type KMX£: Colour: Signature buyer: GUARANTEE CERTIFICATE (KMX Karts COPY) Date of Purchase: Type KMX£: Colour: Retailer KMX£: Name: Date of Birth: Address: Town/City: Postal-code: Country: Signature purchaser: Send to:...
