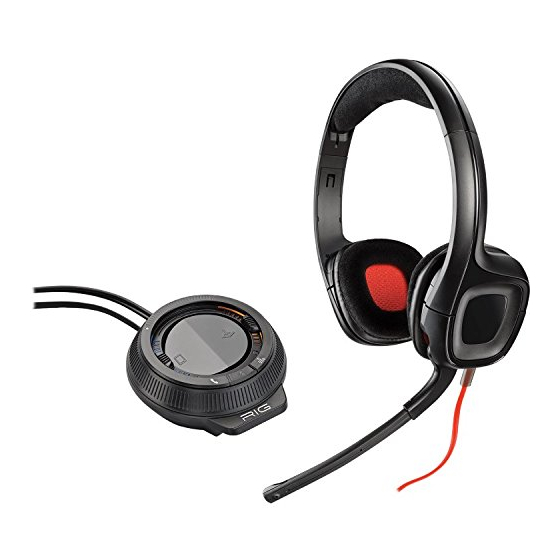

Plantronics RIG Quick Start Manual
Audio amp/mixer
Hide thumbs
Also See for RIG:
- User manual (23 pages) ,
- Quick start manual (7 pages) ,
- Quick start manual (4 pages)
Related Manuals for Plantronics RIG
Summary of Contents for Plantronics RIG
- Page 1 AUDIO AMP/MIXER QUICK START GUIDE...
- Page 2 WHAT’S IN THE BOX PS3/PS4 SETUP * use instead of optical Headset Mixer Xbox chat cable Optical cable...
- Page 3 WHAT’S IN THE BOX XBOX HDMI SETUP * use instead of optical Headset HDMI Mixer Xbox chat cable * Xbox One requires Microsoft stereo Optical cable headset adapter + 2.5mm to 3.5 mm adapter (not included)
-
Page 4: What's In The Box
WHAT’S IN THE BOX PC SETUP Headset Mixer Xbox chat cable Optical cable... -
Page 5: Control Overview
CONTROL OVERVIEW Master volume Power on/off Mobile mode Game mode Game chat and Mobile and game game audio audio balancer balancer Mobile controls EQ selector call answer/end, 1 tone = pure, play/pause audio 2 tones = seismic, Master mute 3 tones = intensify... -
Page 6: Audio Settings
AUDIO SETTINGS Use these settings as a starting point to get optimum sound performance. Game audio only Game/Chat audio Phone call + Game audio — Lower chat — Lower phone — Game audio + Raise chat + Raise phone... - Page 7 We, Plantronics, 345 Encinal Street, Santa Cruz, California, 95060 USA, (800) 544-4660, declare under our sole responsibility RIG audio amp/mixer complies with Part 15 of the FCC plantronics.com/documentation Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
