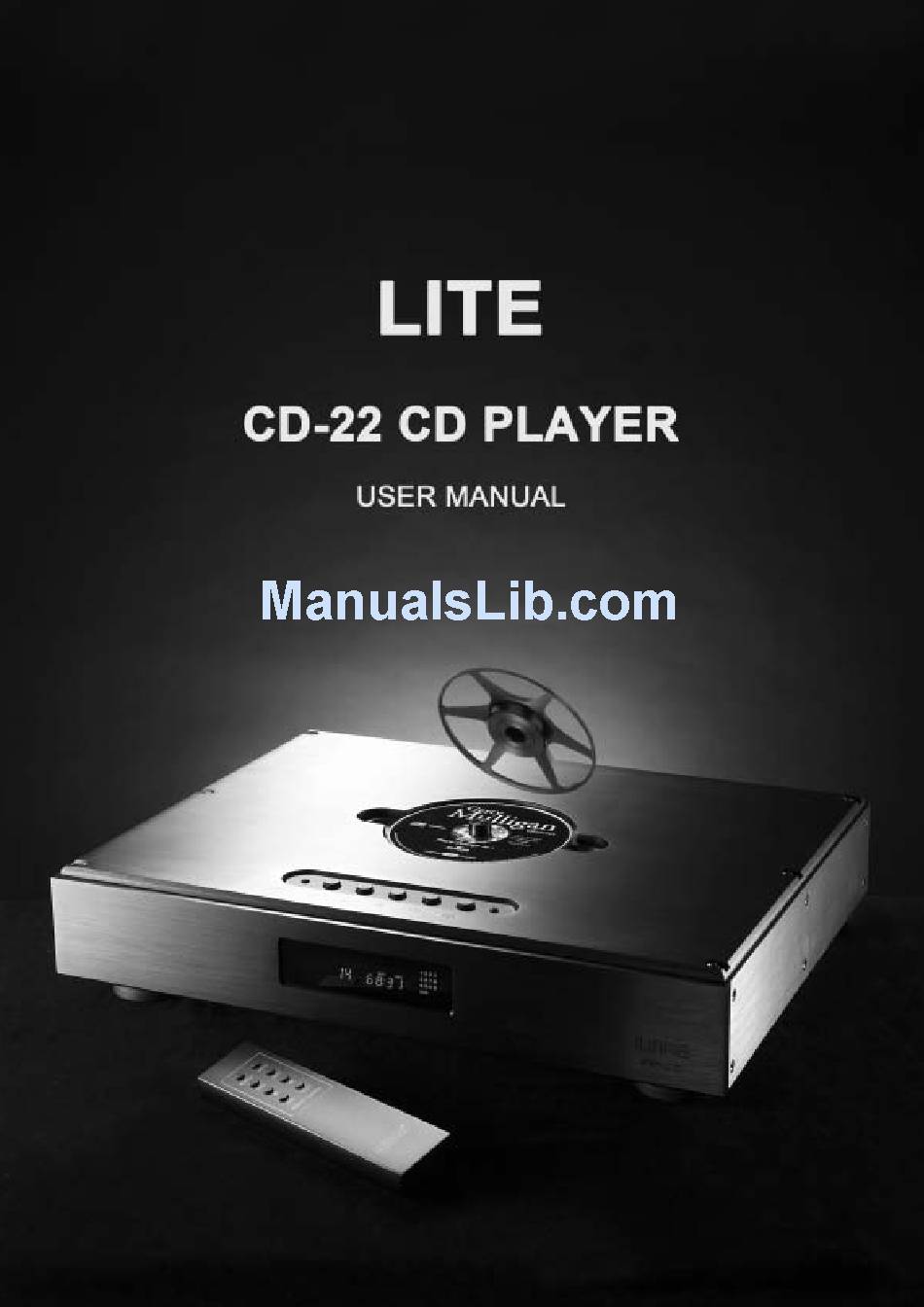

I Want DIY Audio LITE CD-22 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LITE CD-22 and is the answer not in the manual?

Questions and answers

Summary of Contents for I Want DIY Audio LITE CD-22

  • Page 2: Laser Safety

    Wavelength: 755-815 nm (25ºC) Laser Output: Continuous Wave max. 0.7mW INTRODUCTION Congratulations on your purchase of the LITE CD-22 CD Player. This CD Player is designed and manufactured to the highest specification and rigorously tested to offer you many years of trouble-free pleasure.

  • Page 3: General Cautions

    next to the mains input plug. Before connecting the mains lead please check that your mains supply corresponds to this label as below: 230V Products ………………………………….Voltage Range: 220V – 240V 115V Products ………………………………….Voltage Range: 100V – 120V The mains lead supplied with this product has an IEC mains socket which plugs into the IEC connector on the unit’s rear panel.
  • Page 4 CD-22 CD Player r- Top & Front Panel View 1) (2) (4) (5) (6) 1. Stop Button 2. Play Button 3. Pause Button 4. Track Back Button 5. Track Forward Button 6. CD drawer & CD clamp CD-22 CD Playe er - Rear Panel View...

  • Page 5: Operation

    1. Analogue Output (Balanced: XLR; Unbalanced: RCA) 2. Digital Outputs (Optical: Toslink; Balanced: AES/EBU; Coaxial: RCA) 3. IEC Mains Inlet Socket 4. Voltage Label 5. AC Mains Fuse Holder 6. AC Mains Power Switch SETUP CONNECTING MAINS POWER Please refer to the rear panel view. The IEC connector of the supplied mains lead should be plugged into the socket (3) on the rear of the unit first and then plugged into the mains supply.

  • Page 6: Remote Control

    USING THE CONTROLS Please refer to the top & front panel view. LOADING A DISC Place the disc on the spindle. Then place the CD-clamp on the spindle. The clamp now securely When a disc has been loaded, your CD-22 CD Player will briefly spin the disc fastens the disc.

  • Page 7: Troubleshooting

    There are no user-serviceable parts inside your CD-22 CD Player. If a fault should develope, refer any servicing to your appointed LITE dealer, distributor or LITE approved service agent. Your LITE CD-22 CD Player is guaranteed against any defect in materials and workmanship for a period of one year from the date of purchase.

  • Page 8: Specifications

    If equipment returned for repair to LITE is found on inspection to comply with the product specification LITE reserves the right to make a charge for examination and return carriage. Unauthorized servicing will void this guarantee. SPECIFICATIONS Operating System CD digital audio system (CD, CD-R) Frequency Response 20Hz –...
  • Page 9 I Want DIY Audio Ltd. No. 129, Meishu South 2 Kaohsiung, Taiwan TEL: +886-7-5227096 FAX: +886-7-5228536 www.iwdiy.com service@iwdiy.com...
