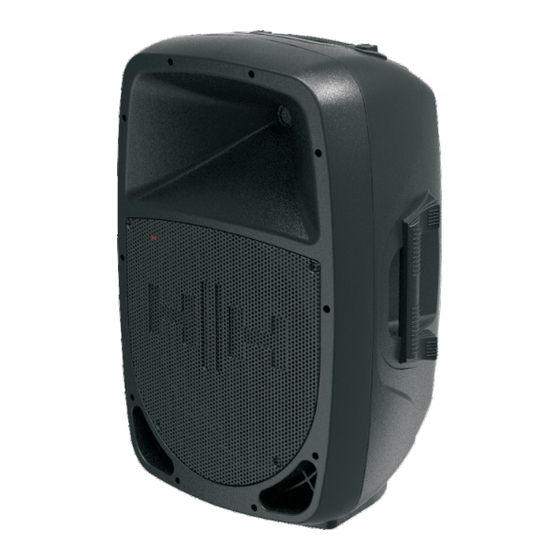

Summary of Contents for HH Electronic RED-12A

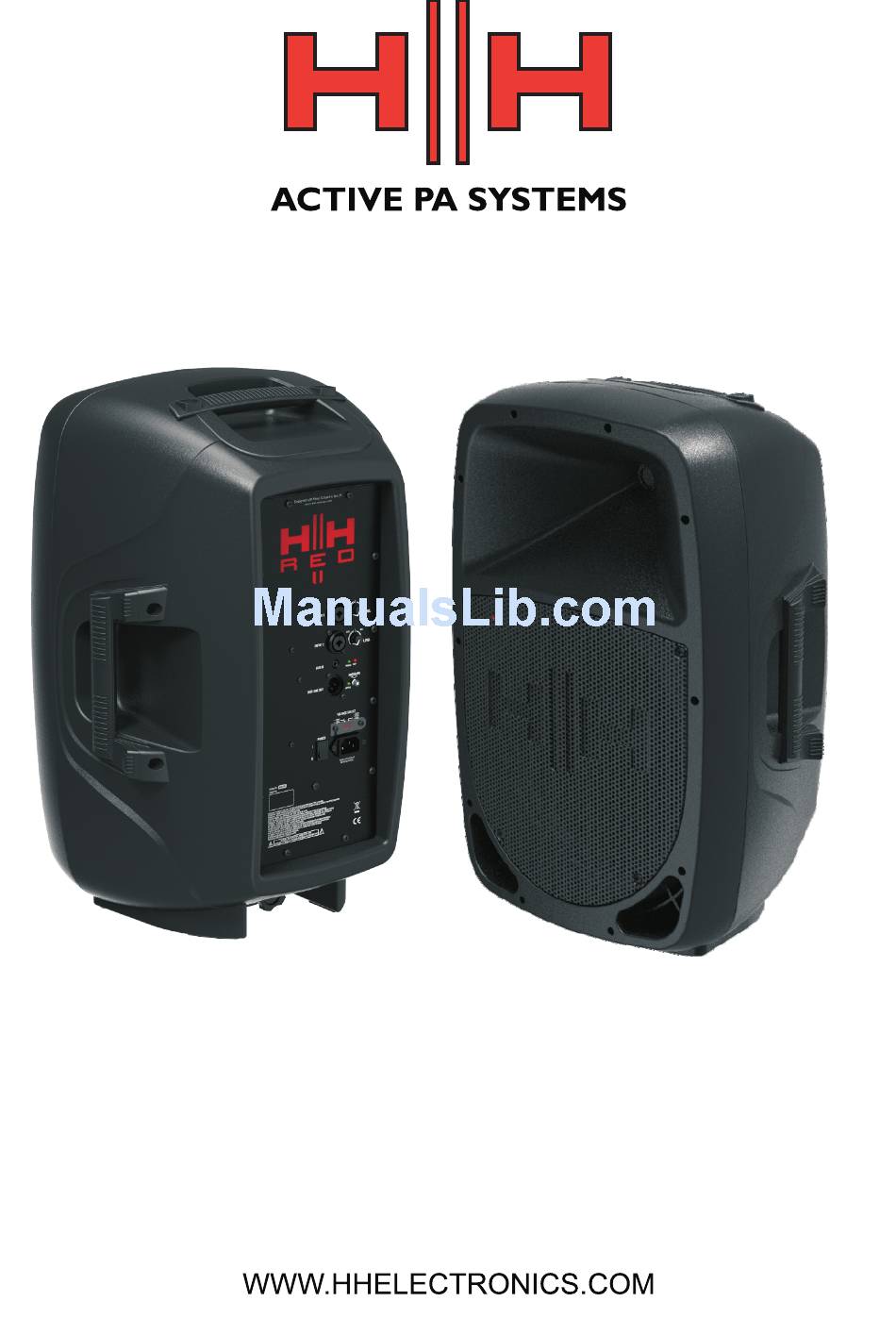

  • Page 1 RED-12A RED-15A...

  • Page 2: Table Of Contents

    CONTENTS 2 Important Safety Instructions 3. Instructions Importantes De Securite - Français 4. Wichtige Sicherheitshinweise - Deusch 5. Instrucciones Importantes Para Su Seguridad Español 6. Important Safety Instructions Pt 2 7. Foreword 8. Introduction 9. Panel Controls 10. Setup Diagrams 11.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electrical products, basic cautions should always be followed, including the following: 1. Read these instructions. 2. Keep these instructions safe. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6.

  • Page 4: Instructions Importantes De Securite - Français

    INSTRUCTIONS IMPORTANTES DE SECURITE - FRANÇAIS ATTENTION: L’utilisation de tout appareil électrique doit être soumise aux precautions d’usage incluant: 1. Lire ces instructions 2. Gardez ce manuel pour de futures références. 3. Prétez attention aux messages de précautions de ce manuel. 4.
  • Page 5 WICHTIGE SICHERHEITSHINWEISE - DEUTSCH ACHTUNG: Beim Einsatz von Elektrogeräten müssen u.a. grundlegende Vorsichtsmaßnahmen befolgt werden:durch. 1. Lesen Sie sich diese Anweisungen 2. Bewahren Sie diese Anweisungen auf. 3. Beachten Sie alle Warnungen. 4. Befolgen Sie alle Anweisungen. 5. Setzen Sie dieses Gerät nicht in der Nähe von Wasser ein. 6.

  • Page 6: Instrucciones Importantes Para Su Seguridad Español

    INSTRUCCIONES IMPORTANTES PARA SU SEGURIDAD - ESPAÑOL CUIDADO: Cuando use productos electrónicos, debe tomar precauciones básicas, incluyendo las siguientes: 1. Lea estas instrucciones. 2. Guarde estas instrucciones. 3. Haga caso de todos los consejos. 4. Siga todas las instrucciones. 5. No usar este aparato cerca del agua. 6.

  • Page 7: Important Safety Instructions Pt 2

    IMPORTANT SAFETY INSTRUCTIONS PT 2 Intended to alert the user to the presence of uninsulated ‘Dangerous Voltage’ within the products enclosure that may be sufficient to constitute a risk of electrical shock to persons. Ce symbole est utililise pur indiquer a l’utilisateur de ce produit de tension non-isolee dangereuse pouvant etre d’intensite suffisante pour constituer un risque de choc electrique.

  • Page 8: Foreword

    FOREWORD Thank you for choosing to purchase an HH product. We at HH are guided by the principle that all of our products must balance the elements of ‘Head’ and ‘Heart: ‘Head’ is about finding the right specifications, the right engineering solutions, the right manufacturing techniques and of course the right price.

  • Page 9: Introduction

    Its your choice. Both the RED-12A and RED-15A covered by this manual utilise our highly efficient and musical Dual Input 400W Class D amplifier module that delivers smooth power across the frequency range with outstanding performance.
  • Page 10 HH ACTIVE PA CONTROL PANEL Designed with Head & Heart in the UK 1 & 2. COMBI INPUTS: A General Purpose ELECTRONICS.COM balanced input compatible with balanced XLR and balanced/unbalanced jack signal leads. Note; as this is a balanced input, a stereo signal cannot be connected to this socket.

  • Page 11: Setup Diagrams

    HH SETUP DIAGRAM Monitor Out Main Outputs Input Input HH Active PA HH Active PA Link Link Mixer Input Input Wired Input Mix Link Out Input Radio MIC Input or Headset Aux In Mic/Line level signals can be connected to the inputs using a balanced or unbalanced XLR or a 6.3mm jack.

  • Page 12: Useful Hints And Tips

    USEFUL HINTS AND TIPS Unpacking Inspect the product during unpacking, if any damage is found, notify the dealer you purchased it from immediately. Be sure to save the carton and all packaging materials. Should you ever need to return the unit back to the dealer or HH Electronics, use only the original factory packing.

  • Page 13: Block Diagram

    BLOCK DIAGRAM Mix Link Out Internal Combi Input 1 HF Driver 200W Class D Passive Volume Power amplifier 2 way crossover Combi Input 2 Limiter Internal Woofer 38Hz Preshape Protection Circuit Volume Peak AUX IN (3.5 Stereo jack) Run all cables neatly, use cable ties to tidy excess cable length in 'figure-8' not loops.

  • Page 14: Specifications

    TECHNICAL SPECIFICATIONS - Common & Specific to Model 400W Peak (200W RMS) Class D amplifier with switch mode power supply, comprehensive protection and clip limiting. Power band width: 20Hz-20kHz THD+N typically: <0.01% IMD typically: <0.01% Residual Noise; -80dB Operating Voltage Range: ~85-132V and ~170-264V (user switchable) Power Consumption: Nominal 100Watts (30Watts average @ 1/8 power)

  • Page 15: Connector Wiring

    CONNECTOR WIRING Balanced XLR 1 GROUND 2 HOT 3 COLD 6.3mm Balanced Jack RING COLD SLEEVE GROUND 6.3mm Unbalanced Jack SLEEVE GROUND This product conforms to the requirements of the following European Regulations, Directives & Rules: CE Mark (93/68/EEC), Low Voltage 2006/95/EC, EMC (2004/108/EC), RoHS (EU2002/95/EC), WEEE (EU2002/96/EC) --------------------------------------------------------------------------------- In order to reduce environmental damage, at the end of its useful life, this product must...
