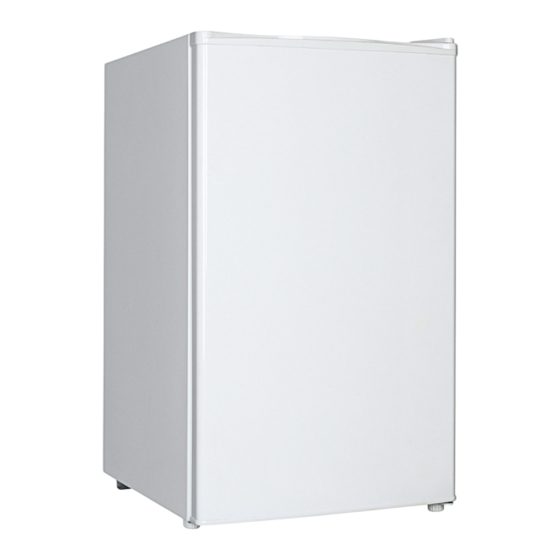

Lemair RQ-115M Instruction Manual

Bar refrigerator
Hide thumbs Also See for RQ-115M:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Using
Instruction Manual
Bar Refrigerator
RQ-115M

Advertisement

Table of Contents
loading

Related Manuals for Lemair RQ-115M

Summary of Contents for Lemair RQ-115M

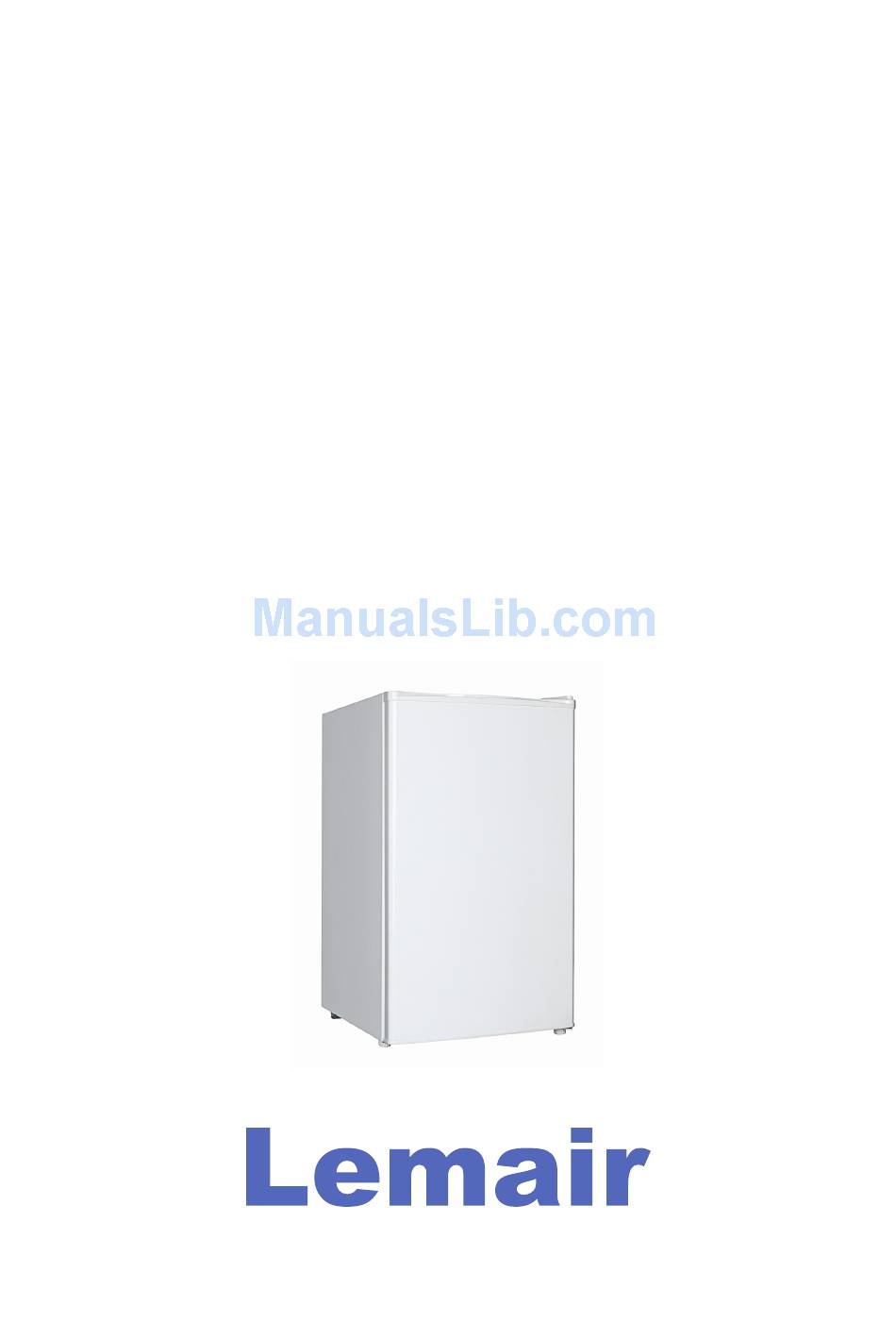

  • Page 1 Instruction Manual Bar Refrigerator RQ-115M...

  • Page 2: Name Of Parts

    1.Name of parts 1.Name of parts PARTS AND FEATURES PARTS AND FEATURES Cabinet Cabinet Freezer Compartment Door Freezer Compartment Door Drip Tray Drip Tray Shelves Shelves Glass cover Glass cover Compressor(back) Compressor(back) Crisper box Crisper box Leveling Legs Leveling Legs Bottle Racks Bottle Racks Recessed Handle...
  • Page 3 2.Correctly positioning 2.Correctly positioning Well Ventilating There is need of good ventilation around the refrigerator for easy dissipation of heat, high efficiency of refrigeration and low power consumption. For this purpose, sufficient clear space should be need around the refrigerator. Its back is at least 100mm away from the wall, its sides at least have a space of 100mm separately and the height from over its top is not less than 200mm.
  • Page 4 2.Correctly Positioning 2.Correctly Positioning Protection from Heat The refrigerator should be far away from any heat source or direct sunshine. Fixing Stable Floor on which refrigerator will be placed must be flat and solid. It should not be laid on any soft material such as foam plastic, etc.
  • Page 5 3.Cautions 3.Cautions Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside, It will weaken the refrigerator when the frost is thick, while it is more than 2mm thick, you should defrost. Defrosting in freezer chamber is operated manually.

  • Page 6: Changing The Reversible Door

    4.Changing the reversible door 4.Changing the reversible door This refrigerator has been built with the door hinges on the right. If you wish to change the opening direction, follow the instructions below: 1. Remove the upper hinge cover(6) first 2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame.

  • Page 8: Maintenance

    5.Maintenance 5.Maintenance The refrigerator should be cleaned and maintained once a month. When performing maintenance, make absolutely sure that the power plug is first disconnected from the power outlet. Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth.

  • Page 9: Troubleshooting

    6. Troubleshooting 1. When the refrigerator does not work Check if there is a power failure. Check if the power plug is plugged into the power outlet. Check that the fuse has not blown. 2. When the refrigerator is cooling excessively The temperature control dial may be set too high.

  • Page 10: Technical Specifications

    7.Technical specifications 7.Technical specifications *For the detailed technical specifications, please refer to the nameplate at the back of the refrigerator.. *Specifications are subject to change without prior notice.
  • Page 11 Trouble shooting guide Problem Possible Cause What To Do Not plugged in. Plug in The refrigerator does Put on the home circuit breaker or change Is the circuit breaker tripped or blown fuse? not get cold at all. the new fuse. Is the refrigerator temperature control setted at Set the temperature control knob at "4".
