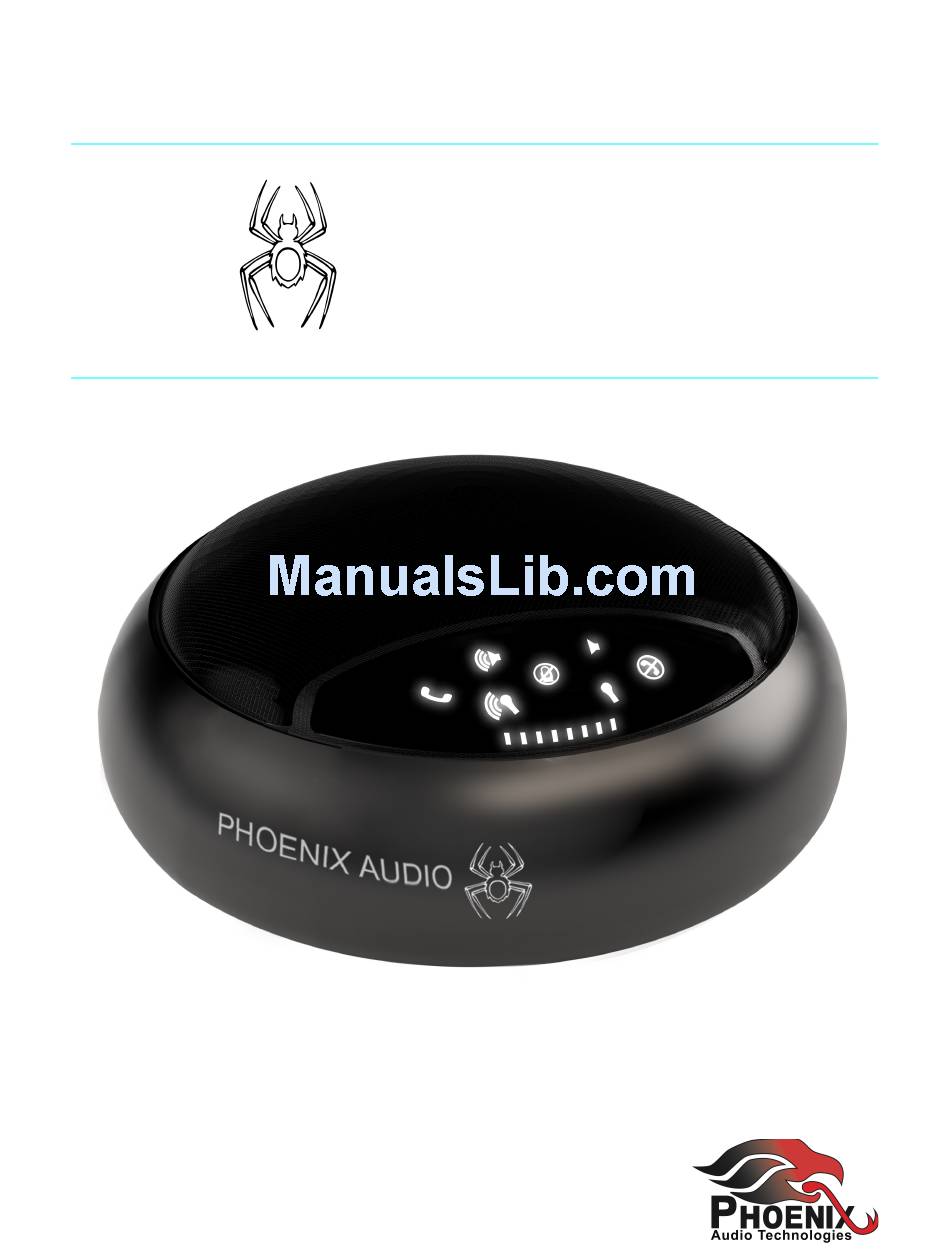

- Page 1 Spider MT503 SMART USER MANUAL Page 1...
-
Page 2: Table Of Contents
INDEX Overview .............Page 03 Connecting the Spider .............Page 04 Using the Spider .............Page 05 • Directional Array .............Page 05 • Volume Control .............Page 06 Display .............Page 06 External Mic/Speaker .............Page 07 Daisy Chaining .............Page 09 Specifications .............Page 11 Warranty .............Page 12 Page 2... -
Page 3: Overview

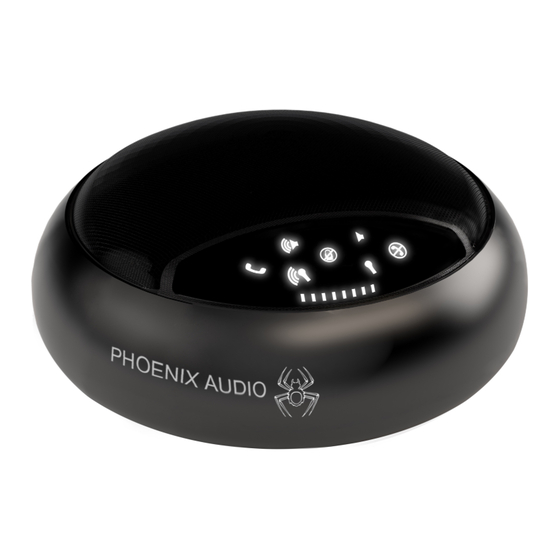

SPIDER 503 SMART OVERVIEW The Spider is a high-quality conference speakerphone that will turn any room into a professionally sounding conference room. It has an exceptionally large pickup and broadcasting range, yet is small in size and discreet in design. The Spider utilizes multiple microphones, a uniquely designed speaker, and a powerful DSP to achieve commanding performance. - Page 4 CONNECTING YOUR SPIDER Page 4...
-
Page 5: Using The Spider
Plug the USB end of the cable into any USB port on your computer. No additional drivers or steps are needed. However, we do recommend downloading and using our “Phoenix Audio Setup Utility” for optimal audio control and performance. This utility can be found on our website: www.phnxaudio.com/downloads/audiosetup/... -
Page 6: Volume Control
focusing on. This is the direction that will be heard best by the far-end of the call (the person you are talking to). NOTE: This function can be disabled (see below). VOLUME CONTROL Adjust the volume levels for the Spider’s different volume profiles listed below: SPEAKER Change the speaker volume by using to increase, or... - Page 7 VOLUME LEVEL INDICATOR The LED bar, which is located below the buttons, represents the volume level currently being adjusted. CONNECTING AN EXTERNAL MIC AND SPEAKER MICROPHONE ONLY Connect the external microphone to the 3.5mm connector using a 3-pin to 4-pin adapter (the same adapter that is used to connect a standard microphone to a Smart device).
- Page 8 PRIVACY MODE When using a mic’d headset, you can utilize the standard headset button to toggle between Privacy Mode (Headset Audio) and Speakerphone Mode. This allows you to leave your headset (or handset) plugged into the device when using the Spider’s built-in microphone and speaker. When in Privacy Mode the two front red LEDs will blink.
-
Page 9: Daisy Chaining
DAISY CHAINING Every Spider comes with a built in ability to connect to other SMART Spiders (MT503) or Quattro3s (up to 15 units). This feature enables you to provide coverage for larger spaces using a chain of units. Page 9... - Page 10 MAKING THE CONNECTION ‣ The SMART Spider can be both a master unit as well as a satellite, however you can use other units as masters. The master unit will be the only unit communicating with an external device, while all other units will connect and communicate only with each other. ‣...
-
Page 11: Specifications
SPECIFICATIONS USB interface (micro B connector) • 3.5mm external loudspeaker and microphone jack • Daisy chain expandability of up to 15 units • Three-way bridging capability • Frequency response 50Hz – 16KHz • Low latency (10ms) • Broadcast level (peak): 92dB SPL @1m (5 watts RMS) •... -
Page 12: Warranty
The following warranty statement is effective for all Phoenix Audio Technologies’ products as of October 1st, 2007 Phoenix Audio Technologies warrants that this product is free of defects in both materials and workmanship. Should any part of this product be defective, the Manufacturer agrees, at its option, to repair or replace with a like new replacement any defective part(s) free of charge (except transportation charges) for a period of two years for all products.
