Summary of Contents for RayTalk USB-3014

  • Page 1 11g Wireless LAN USB 2.0 Client Adapter User’s Manual Version: 1.0...

  • Page 2: Table Of Contents

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 Table of Contents INTRODUCTION ........................4 & B ..................... 4 EATURES ENEFITS ......................4 ACKAGE ONTENTS USB A .................... 5 DAPTER ESCRIPTION ....................5 YSTEM EQUIREMENTS ........................5 PPLICATIONS ....................6 ETWORK ONFIGURATION INSTALL DRIVERS &...

  • Page 3: Revision History

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 Revision History Version Date Notes July 8, 2004 Initial Version...

  • Page 4: Introduction

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 1 Introduction The High-Speed Wireless USB 2.0 Client Adapter is the most convenient way to let you put a desktop/notebook computer almost anywhere without the hassle of running network cables. Now you don’t need to suffer from drilling holes and exposed cables. Once you are connected, you can do anything, just like the wired network.

  • Page 5: Usb Adapter Description

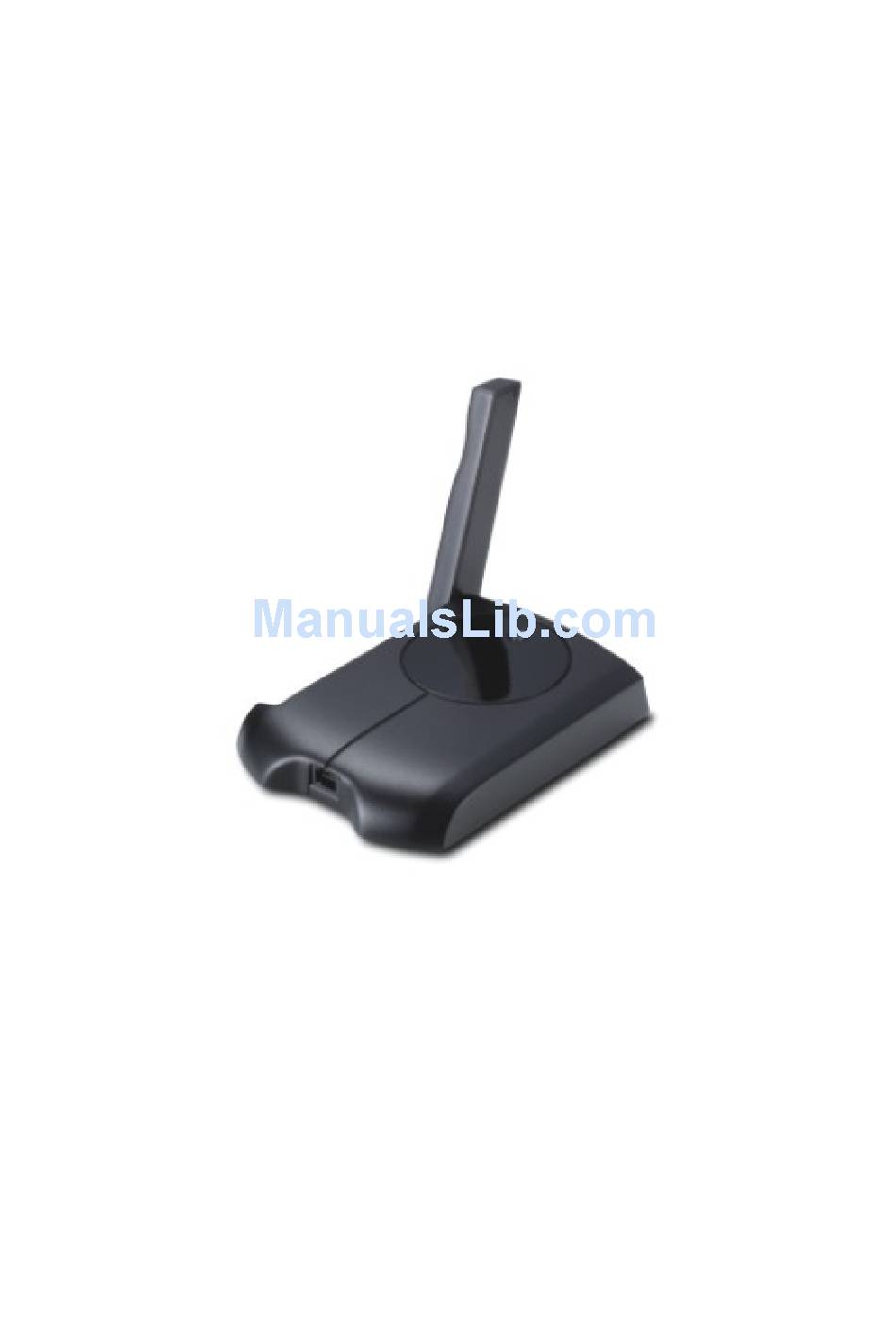

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 1.3 USB Adapter Description The USB adapter is a standard USB adapter that fits into any USB interface. The USB adapter has a LED indicator and an external flip-up antenna. Flip-up Antenna RF LED Indicator Port for USB cable 1.4 System Requirements...

  • Page 6: Network Configuration

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 Doctors/nurses, point-of-sale employees, and warehouse workers can access real-time information while dealing with patients, serving customers and processing information. d) Frequently changed environments Show rooms, meeting rooms, retail stores, and manufacturing sites where frequently rearrange the workplace.
  • Page 7 11g Wireless LAN USB 2.0 Client Adapter Version 1.0 b) Infrastructure Mode The infrastructure mode requires the use of an access point (AP). In this mode, all wireless communication between two computers has to be via the AP. It doesn’t matter if the AP is stand-alone or wired to an Ethernet network.

  • Page 8: Install Drivers & Client Utility

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 2 Install Drivers & Client Utility 2.1 Before You Begin Before installing the new drivers of your USB adapter, you need to disable all of the Wireless LAN USB drivers that you have installed. During the installation, Windows 98SE/ME/2000/XP may need to copy systems files from its installation CD.
  • Page 9 11g Wireless LAN USB 2.0 Client Adapter Version 1.0 3. Click on the Next button to continue. The Setup Wizard will then let you select a destination folder for the drivers, as the image depicts below. 4. Click on the Browse button to select another drive or folder to install the drivers, and then click on the Next button.
  • Page 10 11g Wireless LAN USB 2.0 Client Adapter Version 1.0 5. The Install Wizard will then remind you to insert the WLAN adapter after the setup is complete. Click on the OK button to continue. 6. The first part of the driver installation is complete. Select Yes, I want to restart my computer now, radio button and then click on the Finish button.
  • Page 11 11g Wireless LAN USB 2.0 Client Adapter Version 1.0 8. Select the Install the software automatically (Recommended) radio button, and then click on the Next button to continue. 9. If you are using Windows XP, you will see a message regarding Windows Logo Testing, click on the Continue Anyway button to continue.
  • Page 12 11g Wireless LAN USB 2.0 Client Adapter Version 1.0 10. The Setup Wizard will then copy the necessary files. The Driver & Utility installation is now complete, click on the Finish button.

  • Page 13: Verify The Instillation

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 2.3 Verify the Instillation Follow the steps below in order to verify that the USB adapter has been installed and is functioning properly: 1. Click on Start > Settings > Control Panel. 2.

  • Page 14: Disable Windows Wep/Ssid Configuration

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 2.4 Disable Windows WEP/SSID Configuration In order to configure SSID and WEP settings from the Client Utility, you must first disable the Windows based SSID and WEP configuration from the Network Configuration in the Control Panel.
  • Page 15 11g Wireless LAN USB 2.0 Client Adapter Version 1.0 5. Make sure that there isn’t any check placed in the Use Windows to configure my wireless network settings check box. 6. Click on the OK button.

  • Page 16: Using The Client Utility

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 3 Using the Client Utility After a successful installation you will see the USB adapter Client Utility in the Windows Program group called IEEE 802.11g. To run the Client Utility click Start > Programs > IEEE 802.11.g > IEEE 802.11.g WLAN Utility.

  • Page 17: Site Survey

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 bytes per second. Link Quality: In infrastructure mode, this bar displays the transmission quality between an AP and a client. In Ad-hoc mode, this bar displays the transmission quality between one client, and another. Signal Strength: This bar displays the strength of the signal received from an AP or client.

  • Page 18: Configuration

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 Mode: indicates whether the SSID is a Station (PP) or Access Point (AP). WPA: indicates whether WPA (Wi-Fi Protected Access) is enabled. Connect: to connect with a specific Access Point, select the Access Point from the drop-down list, and then click on the Connect button.

  • Page 19: Wep

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 without an AP. o Access Point: if the stations exchange data through an Access Point. Peer-to-Peer Channel: this option is just for Peer-to-Peer (Ad-Hoc) mode. You need to specify a channel on which the communications are established.

  • Page 20: Security

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 There are two ways, Alphanumeric and Hexadecimal, to set the different characters Create Keys with Pass phrase: Type a character string into the field. For 64-bit enter 5 alphanumeric or 10 hexadecimal characters. For 128-bit enter 13 alphanumeric or 26 hexadecimal characters.

  • Page 21: Md5-Challenge

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 Authentication Mode: select an authentication mode from the drop-down list. Options available are Open, Shared, or AutoSwitch. Select AutoSwitch if you would like the device to automatically switch between Open and Shared authentication mode. Click on the Apply button to save the changes.

  • Page 22: Leap

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 3.5.3 LEAP Authentication Type: If your network uses LEAP to authenticate its users, select LEAP from the drop down list. LEAP (Lightweight Extensible Authentication Protocol) also known as Cisco-Wireless EAP provides username/password-based authentication between a wireless client and a RADIUS server.

  • Page 23: Ttls

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 Use Network EAP: Place a check in box if you would like to use EAP. EAP (Extensible Authentication Protocol) is an extension to the PPP protocol that enables a variety of authentication protocols to be used. It passes through the exchange of authentication messages, allowing the authentication software stored in a server to interact with its counterpart in the client Click on the Apply button to save the changes.

  • Page 24: Peap

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 must match the Server Name parameter exactly or if only the sub domain must match. Tunneled Authentication / Username: Enter the user name. Tunneled Authentication / Password: Enter the password. Authentication: Select an authentication method from the drop-down list. Enable WPA: Place a check in this box if you would like to enable the WPA function.
  • Page 25 11g Wireless LAN USB 2.0 Client Adapter Version 1.0 between the client and the authentication server. The tunnel then protects the subsequent user authentication exchange. Username: Enter the user name. Use Client Certificate: Place a check in this box if you would like to use a client certificate and then click on the Select button.

  • Page 26: Tls / Smart Card

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 3.5.6 TLS / Smart Card Authentication Type: If your network uses TLS or Smart Card to authenticate its users, select TLS/Smartcard from the drop down list. TLS (Transport Layer Security) is an IETF standardized authentication protocol that uses PKI (Public Key Infrastructure) certificate-based authentication of both the client and authentication server.

  • Page 27: Wpa - Psk

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 designed to work with existing Wi-Fi products that have been enabled with WEP. WPA provides improved data encryption through the Temporal Integrity Protocol (TKIP), which scrambles the keys using a hashing algorithm and by adding an integrity-checking feature which makes sure that keys haven’t been tampered with.

  • Page 28: About

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 3.6 About The About tab displays information about the device. This includes the network driver version and date, configuration utility version and date, and the NIC (Network Interface Card) firmware version and date.

  • Page 29: Uninstall The Drivers & Client Utility

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 4 Uninstall the Drivers & Client Utility If the USB Client Adapter installation is unsuccessful for any reason, the best way to solve the problem may be to completely uninstall the USB adapter and its utility and repeat the installation procedure again.
  • Page 30 11g Wireless LAN USB 2.0 Client Adapter Version 1.0 4. The Uninstallation is complete. Select the Yes, I want to restart my computer now radio button, and then click on the Finish button.

  • Page 31: Appendix A - Specifications

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 Appendix A – Specifications General Data Rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11b, IEEE 802.11g Network Standards Compliance FCC Part 15, ETSI 300/328/CE Operational Voltage: 5V USB Interface Current Limited: 500mA...
  • Page 32 11g Wireless LAN USB 2.0 Client Adapter Version 1.0 18dBm @9Mbps 14dBm @36Mbps 16dBm @12Mbps 12.5dBm @48Mbps 16dBm @18Mbps 12.5dBm @54Mbps Software Drivers Windows98SE/ME/2000/XP Security WEP—64/128bit Encryption WPA— Wi-Fi Protected Access PSK (Pre share key) with 64/ 128-bit WEP Key IEEE802.1x (TLS/TTLS supplicant) Support TKIP Compliance...

  • Page 33: Appendix B - Fcc Interference Statement

    11g Wireless LAN USB 2.0 Client Adapter Version 1.0 Appendix B – FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
