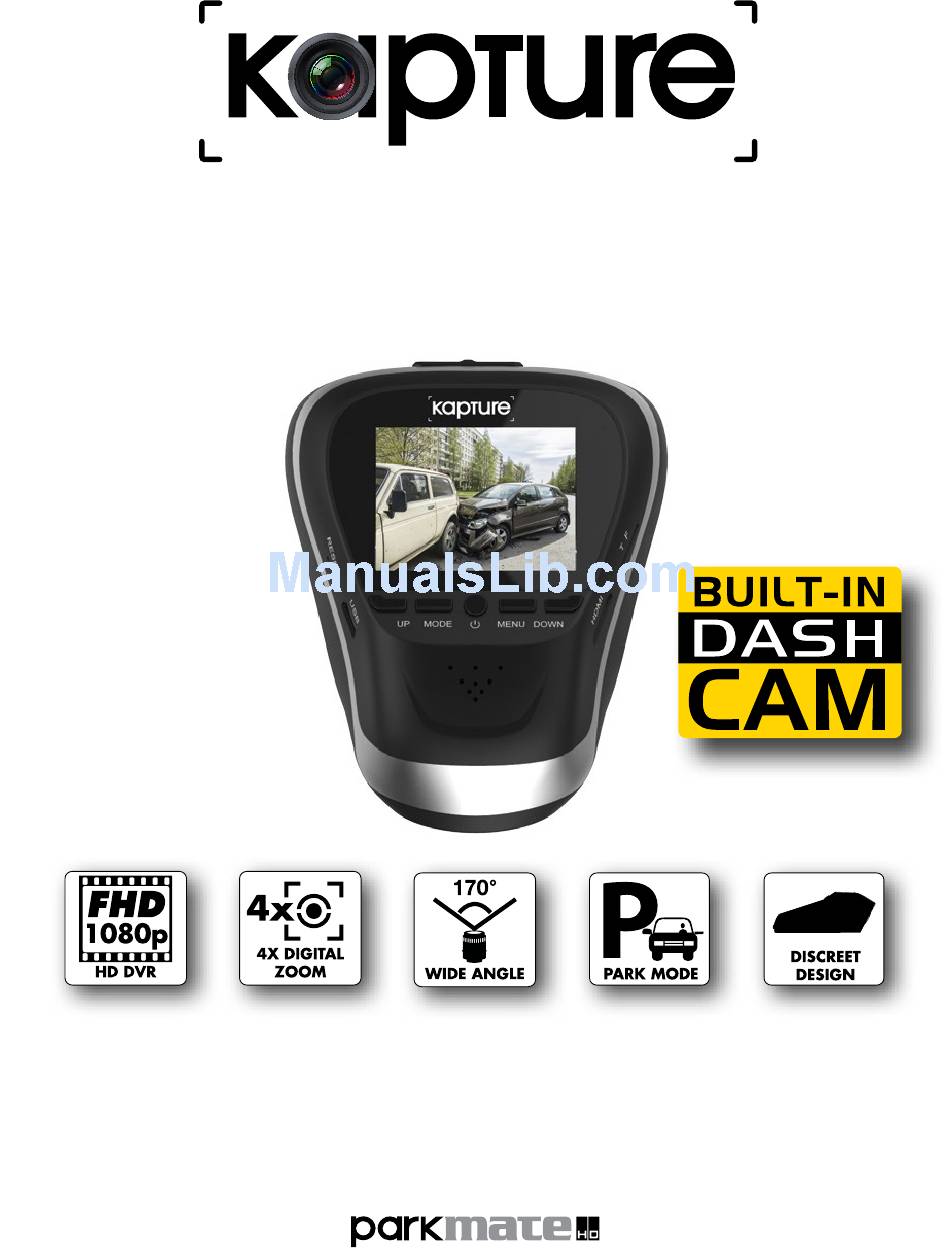

Page 1: User Manual
2” Full HD Dash Cam Car DVR with Discreet Design USER MANUAL KPT-550... -
Page 3: Package Contents
• Only use the included cables to power and charge the KPT- 550. • Please do not attempt to adjust the KPT-550 position or settings whilst you are operating your vehicle. • Ensure you are using your KPT-550 within your countries’... - Page 4 2. Product Details 1. Mount Lock Switch 9. Power Indicator 10. Recording Indicator 2. 2” LCD Screen 3. UP Button 11. 170° Wide Angle Lens 12. HDMI Mini Port 4. MODE Button (Adapter required for HDMI not included) 5. OK/POWER Button 13.
-
Page 5: Installation
The Auto On/Off feature will power the KPT-550 up and begin recording as soon as it receives power from the USB Mini connection (eg. when you start your car) 4. -
Page 6: Product Operation
OK/ POWER button. d. The KPT-550 is optimised for Micro SD Cards class 4 and above with a capacity up to 32GB. e. The on board ‘G- Sensor’ registers any activity that could be an accident and saves the footage as a ‘Locked’... - Page 7 6. Computer Connection: Videos and Photos can be retrieved from the KPT-550 by either plugging the camera directly into your computer using the included Mini USB Cable or by connecting the Micro SD Card using a Micro SD Card adapter (not included).
- Page 8 KPT-550 follow the directions below. a. Ensure you are not currently recording. If the red record indicator is flashing at the top left of the KPT-550’s screen, push the OK/POWER button to stop recording. b. Push the MENU button twice, taking you to the SETUP menu.
- Page 9 VIDEO menu. 10. Set Loop Recording Your KPT-550 has the ability to record in a Loop mode, which means older blocks of video files will be overwritten once the memory card becomes full. You can set the amount of video block time the KPT-500 will record for before a new video file is started.
- Page 10 Ensure you are not currently recording. If the red circle record indicator is flashing at the top left of the KPT-550’s screen, push the OK/POWER button to stop recording. d. Push the MENU button taking you to the VIDEO menu.
- Page 11 Ensure you are not currently recording. If the red record indicator is flashing at the top left of the KPT-550’s screen, push the OK/POWER button to stop recording. d. Push the Menu button, taking you to the VIDEO menu.
- Page 12 OK/POWER button. Footage can be manually locked by pressing the In Line Protect button, protecting it from being recorded over. When the KPT-550 is in VIDEO mode the UP and DOWN buttons are used to adjust the digital zoom 1. VIDEO Mode 7.
-
Page 13: Video Menu
Lower WVGA 848x480 resolution saves storage space. VGA 640x480 Loop recording defines the length of time the KPT-550 records before creating a new Off / 3 Minutes / 5 Loop recording file. Using the Off setting will... -
Page 14: Still Mode
60 seconds of footage. 15. Still a. This screen is used to take still photos. b. When the KPT-550 is in STILL mode the UP and DOWN is used to adjust the digital zoom. 1. STILL Mode 5. Shutter Delay 9. -
Page 15: Still Menu
1920 x 1080 saves storage space. 1.3M 1280 x 960 640 x 480 The Sequence setting will set the KPT-550 to take a sequence of Sequence Off / On 3 photos every time the shutter is triggered. Sets the quality of the image. - Page 16 Menu Select Settings Remark Adjusting the exposure will counter balance high or low light conditions. To brighten +0.0, -1/3,-2/3, -1.0, -4/3, your photos, adjust to a higher Exposure -5/3, -2.0, +2.0, +5/3, exposure. To make your photos +4/3, +1.0, +2/3, +1/3 darker change to a lower exposure.
-
Page 17: Playback Menu
Playback Menu Menu Select Settings Remark Allows you to delete either the selected or all photos and video Delete Delete Current / Delete All stored on the inserted Micro SD Card. Allows you to lock or unlock the Lock Current / Unlock selected, or all videos and photos Protect Current / All Lock /... -
Page 18: Setup Menu
Off / 30 secs / 1 min / powers down (even when the Screen Saver 2 mins screen powers down in screen saver mode the KPT-550 will keep recording). Sets the amount of time the KPT- Delayed Off / 30 Secs / 1 Mins /... -
Page 19: Product Specification
18. Product Specification 2" Screen Lens 170° Imaging Sensor 5.0MP Minimum Light 1 Lux Video Resolution FHD 1080P / HD 720P / 480P Video Format .MOV Frames Image Resolution 12M / 10M / 8M / 5M / 3M / 2M / 1.3M .JPG Photo Format Motion Detection... -
Page 20: Warranty Terms And Conditions
Warranty Terms & Conditions Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
