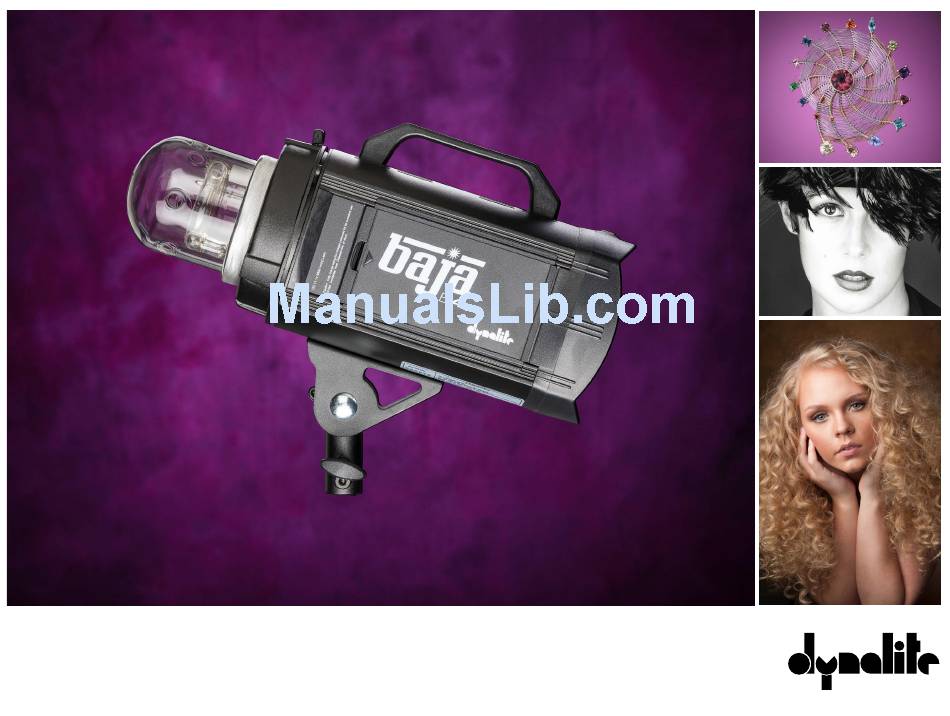

- Page 1 Dynalite Baja Portable Electronic Flash USER MANUAL dynamic lighting...
-
Page 2: Table Of Contents
In the Box ................10 Accessories ................ 10 Specs ................. 11 BRT ~ The Baja B-4’s Remote Control ......12 Setting up the BRR-616 receiver ........13 Setting up the BRT-616 transmitter ........ 13 High Speed Sync –Focal Plane Shutters & Sync .... 14 What is High Speed Sync? .......... -
Page 3: Introduction
A lot of us have decades of experience shooting photographs lit with Dynalite. Thanks to you too, if you are one of the established Dynalite users and have added this gear to expand your lighting capabilities. -
Page 4: Safety Guidelines
There are only a few important things to know about handling any electronic flash systems when it comes to doing it safely. This section is hyper-important for you to be safe and stay well while using your Dynalite Baja B-4. Most of this is common sense. -
Page 5: Dynalite Legacy
Dynalite was likely on the scene. Photographers across the country adopted the super light packs that easily stood up to the rigors of the road. Whether piled in the back of a van or checked as luggage on airlines, Dynalite gear stood up to the abuse travel wreaks on equipment that can be delicate. -
Page 6: Using Dynalite Baja Portable Electronic Flash
16. Easy Carry Handle 17. Battery Cover Release 18. Accessory Release 19. Umbrella Socket — Push the umbrella’s shaft into the socket. No tightening knob needed. 20. L.E.D Modeling Light — Note that the light is always on when Baja is powered up. - Page 7 Easy Carry Handle Battery Cover Release Accessory Release Remote Trigger Sensor 3. RPT Button Accessory Release 4. Mode Button 5. Cell Button 6. Sound Button 7. Test Button HSS Receiver Flash Power Control Dial Modeling Light Power Control Dial Main Display L.E.D.
-
Page 8: Getting Started
Connect the charger’s output cord to the Charging Socket (10.) Plug its AC cord to 110 / 240 volt outlet. Turn the Power Switch ( 8 ) Off. The indicator light on the charger glows Red while the Baja is charging. It turns to Green when the battery is full. - Page 9 Both Canon & Nikon offer speedlites that can synchronize with those thin slits. Good news! The Baja can too with its optional BRT616c transmitter that enables high speed sync with most Canon DSLR cameras. Nikon will be added soon.
-
Page 10: Adding/Removing Modifiers
In the box... Here are all the goodies that come installed in or with your new Dynalite Baja B-4 Battery Powered Flash. • Protective Flashtube Cover • Pyrex Flashtube Protector (installed) •... -
Page 11: Specs
5W LED Flash Count (Full Battery @ Max Power) 550-800* (*while charging) Weight 6.1lbs Dimensions (L x W x H, inches) 13.5” x 4.75” x 8.625” Battery Power Rechargeable 11.1V 8.8 Li-ion *800 flashes with A/C charger plugged into the Baja... -
Page 12: Brt ~ The Baja B-4'S Remote Control
Flash Group Selector The BRT system controls six sets or fewer of Dynalite Baja B-4 flash units. A group can have Flash Group Display one or several Baja B-4s in it. Each group’s power output can be set individually. When two Flash Fire Indicator or more Baja B-4s are in the same group their power increases or decreases identically. -
Page 13: Setting Up The Brr-616 Receiver
Setting up the BRR-616 Step one: Insert a BRR-616 receiver into the slot at the top of the Dynalite Baja B-4 (14.) Step two: Choose a channel by rotating the Channel Selector (C) a number 1 to 16. Step three: Press the Flash Group Selector button (B) until the Flash Group Display (A) shows the desired group number 1 through 6. -
Page 14: High Speed Sync -Focal Plane Shutters & Sync
High Speed Sync Focal Plane Shutters & Flash Sync Modern DSLR cameras use focal plane shutters to achieve speeds up to 1/8000th of a second. These shutters work fine with electronic flash at or below their sync speed. Sync settings range from 1/160th to 1/250th of a second depending on make and model. -
Page 15: Using Dynalite Baja B-4 Hss
Step two: Press the On button on the BRT616c (n). The Baja B-4’s Main Display, indicator lights and modeling lamp will light. Step three: Hold down the RPT (3) button on the back of the Baja until the flash fires. The Main Display (13) shows H.1. This setting is for most full frame cameras. - Page 16 1050 Commerce Avenue, Union, NJ 07083 • 800.722.6638 • 908.687.8800 • flash@dynalite.com • dynalite.com All photographs: ©2014Kevin Ames • kevin@amesphoto.com • kevinamesphotography.com dynamic lighting...
