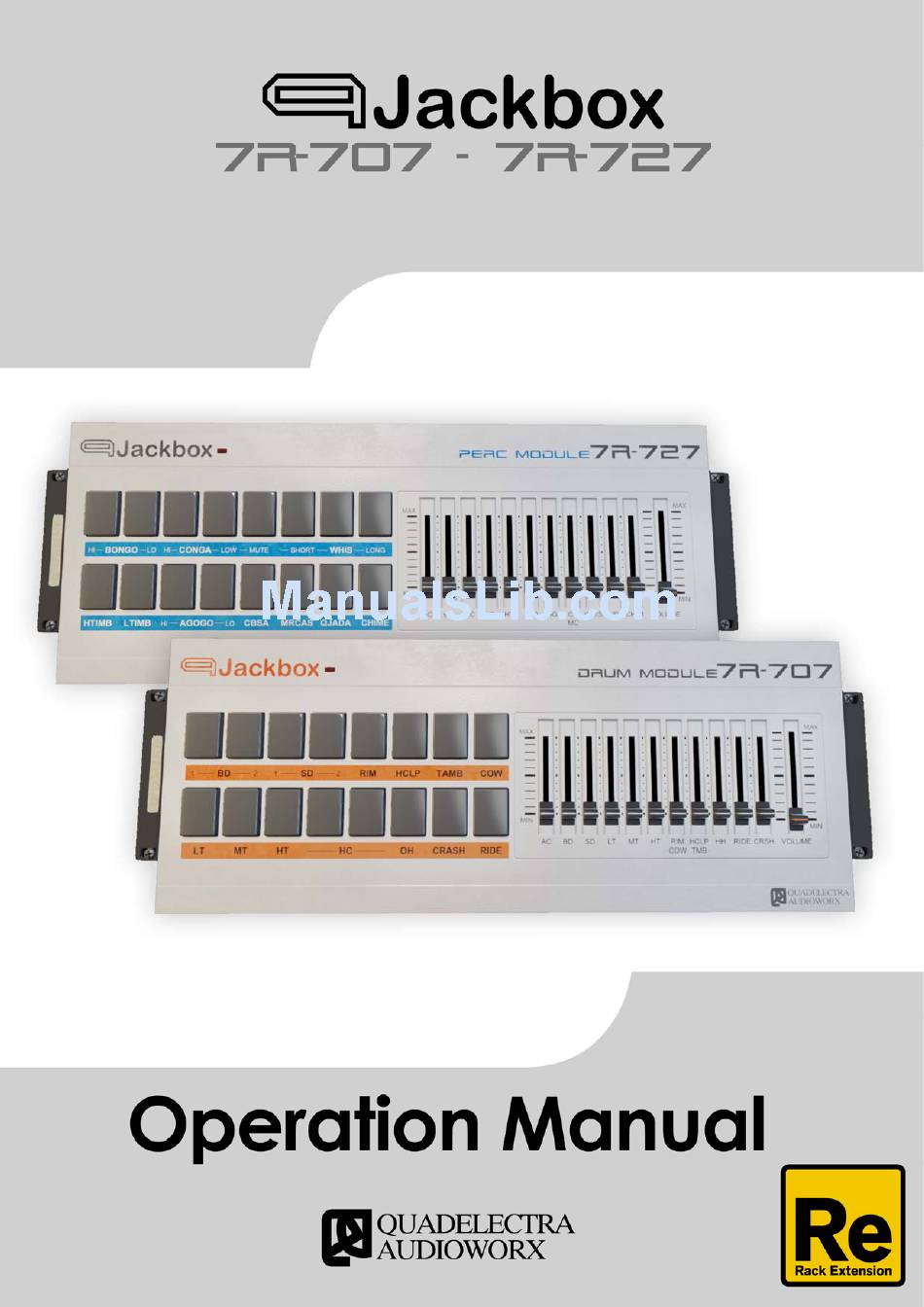

Summary of Contents for Quadelectra Audioworx Jackbox 7R-707
-
Page 3: Welcome To Jackbox 7R Series
Operation Manual 1. Welcome To Jackbox 7R Series! Welcome and thank you for choosing our Jackbox 7R series devices. The 7R series, consists of two devices. The 7R-707 Drum Module, and the 7R-727 Perc Module, inspired by the original hardware series TR-707 and TR- 727 by Roland. -
Page 4: Front Panel
Operation Manual 2. Front Panel The front panel in both devices, is separated in two parts: Fig2a: An abstract look to the front panel of both 7R-707 & 7R-727 devices. A. Drum Pads: The drum pads give you immediate access to the drum sounds of the device. - Page 5 Operation Manual c. Individual Drum Faders: The ten faders between the Accent and the Main Volume fader, control the volume of the drum sounds, on the device. Most of the faders control one sound, but there are also faders that control two. For the faders that control grouped sounds, the grouping is similar to the original hardware TR-707 / 727 devices.
-
Page 6: The 7R-707 Specifics
Operation Manual 2.1. The 7R-707 Specifics The information below are specific to owners of Jackbox 7R-707. For a list of the 7R-727 specifics see section 2.2. fig.2.1.a The Jackbox 7R-707 Front Panel DRUMPADS FADERS / GROUPINGS BD1 (BassDrum 1) LT (Low Tom) -
Page 7: The 7R-727 Specifics
Operation Manual 2.2. The 7R-727 Specifics The information below are specific to owners of Jackbox 7R-727. For a list of the 7R-707 specifics see section 2.1. fig.2.1.a The Jackbox 7R-707 Front Panel DRUMPADS FADERS / GROUPINGS BONGO HI HTIMB (Hi TIMBale) -
Page 8: Back Panel
Operation Manual 3. Back Panel The back panel for both devices, like the front, shares some common elements. Here's an abstract schematic, showing the main regions. Fig.3.a. The Jackbox back panel abstract design for both devices. A. Individual Outputs: Jackbox Devices, expose a set of separate audio outputs, one for each fader of the front panel. - Page 9 Operation Manual D. Flam Size Knob: Jackbox, provides a flam size knob, with which you can control the interval between two individual flam hits. E. Main Output: This is the device's main output, which is stereo. Note that although the individual outputs are mono, the drum sounds are positioned in the stereo field, when played through the main output.
-
Page 10: Features
Operation Manual 4. Features This chapter discusses other features, of the two Jackbox 7R devices. 4.1. Flam And Accent Jackbox devices, 7R-707 and 7R-727 both support flam and accent functions. Although there are not any dedicated switches in the front panel for enabling "Accent"... -
Page 11: Appendix I: Midi Note Assignments
Operation Manual APPENDIX I: MIDI Note Assignments AI.1: The 7R-707 MIDI Drum Mapping Keyboard Lookup: Name Lookup: 1. Bass Drum 2 (BD2): B2 - 35 2. Bass Drum 1 (BD1): C3 - 36 3. Rim Shot (RIM): C#3 - 37 4. -
Page 12: Ai.2: The 7R-727 Midi Drum Mapping
Operation Manual AI.2: The 7R-727 MIDI Drum Mapping Keyboard Lookup: Name Lookup: 1. High Bongo (HBG): C5 - 60 2. Low Bongo (LBG): C#5 - 61 3. Mute Conga (MCG): D5 - 62 4. High Conga (HCG): D#5 - 63 5. -
Page 13: Appendix Ii: Midi Cc
Operation Manual APPENDIX II: MIDI CC MIDI CC 7R-707 7R-727 Accent Volume Volume Accent Flam BD Volume BG Volume SD Volume HC Volume LT Volume LC Volume MT Volume HTB Volume HT Volume LTB Volume RIM / COW Volume AG Volume HCLP / TAMB Volume CS/MC Volume HH Volume... -
Page 14: Table Of Contents
Operation Manual TABLE OF CONTENTS 1. Welcome To Jackbox 7R Series! ..........3 2. Front Panel................4 2.1. The 7R-707 Specifics ............6 2.2. The 7R-727 Specifics ............7 3. Back Panel ................8 4. Features ................10 4.1. Flam And Accent .............. 10 4.2.
