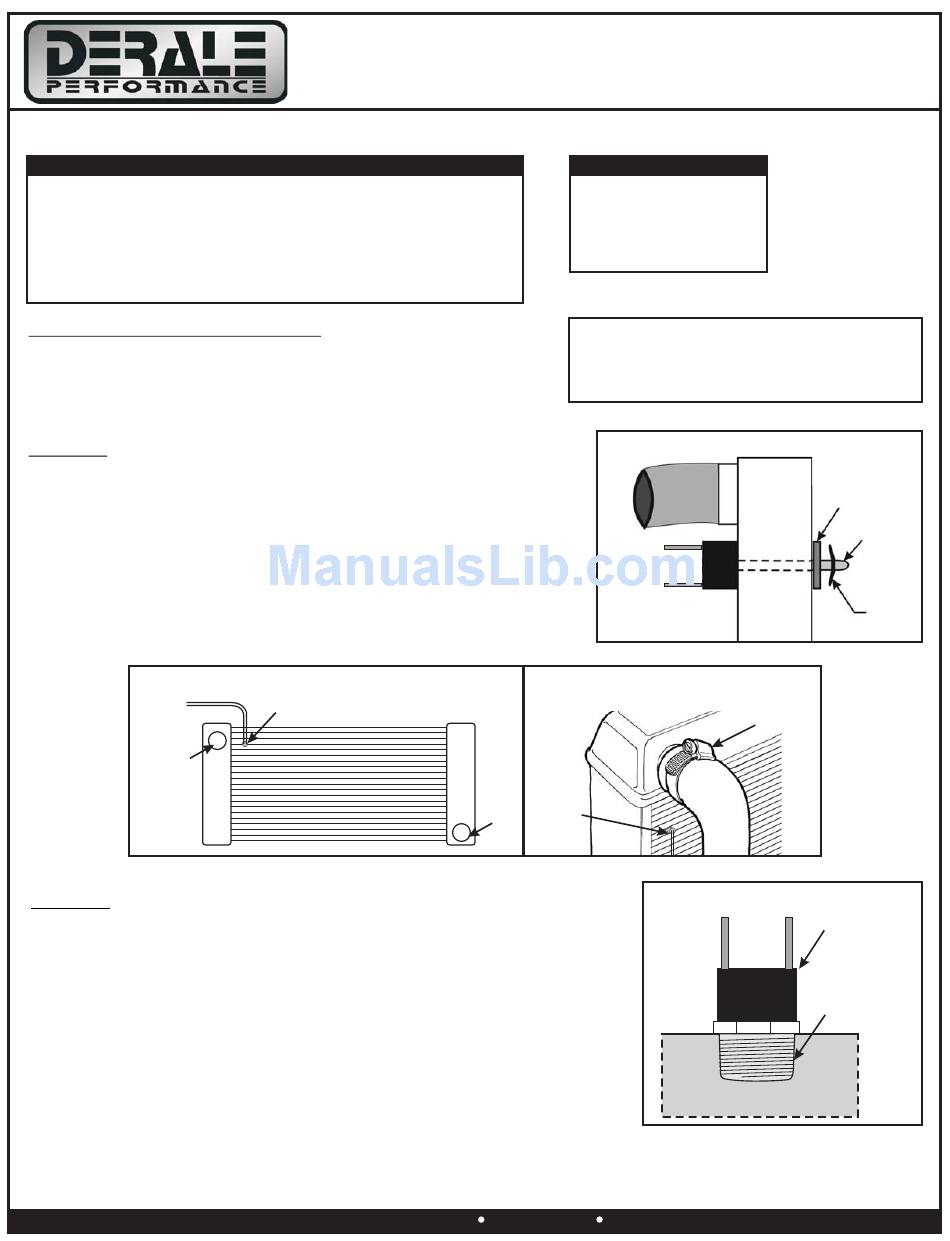

Derale 18735 Installation Instructions

Please read these instructions completely before beginning installation
QTY. DESCRIPTION
1 Thermostat Switch
1 3/8" NPT Thread-in Probe
1 Push-in Probe
1 1 x 1 Foam Pad
1 Retaining Clip
1 Blue Ring Terminal
THERMOSTAT PROBE INSTALLATION
This kit includes two thermostat probe options.
Choose the option that best fits your application.
Option 1 - Push-in Radiator Probe
Option 2 - Thread-in Radiator Probe
Option 1
Placement: For best results we recommend installing the probe as close as
possible to the water inlet of the radiator. (See Diagram #2)
Installation:
1. Take the brass probe and thread it clockwise onto the thermostat.
2. Carefully insert the probe/thermostat assembly into the fins of the radiator
until thermostat is flush with radiator.
3. Install the 1 x 1 foam pad onto the Push-in Probe.
4. Install Retaining Clip onto the Push-in Probe until tight. (See Diagram #1)
Diagram #2
Water
Inlet
Option 2
Placement: Locate a 3/8" NPT port either on the radiator, waterneck, intake
manifold or cylinder heads.
Installation:
1. Using Teflon tape or suitable sealant install the probe into the 3/8" NPT port
on the vehicle.
2. Using a 3/4" wrench tighten the probe.
3. Carefully thread the Thermostat Switch clockwise into the Push-in Probe now
installed on the vehicle. Sealant such as Loctite can be used for permanent
installation. (See Diagram #3)
Note: DO NOT TIGHTEN THERMOSTAT WITH A WRENCH, HAND TIGHTEN ONLY.
(Continues on reverse side)
Derale Performance, Los Angeles, CA
SINGLE STAGE ELECTRIC FAN THERMOSTAT
KIT CONTENTS
QTY. DESCRIPTION
2 Blue Butt Connectors
1 Blue Wire Tap Connectors
4 4" Wire Ties
1 20 Amp Fuse Holder
7' 14GA. Red Wire
2 Blue Female Connectors
(See Diagram #1)
(See Diagram #3)
Cross-flow Radiator
Push-in
Radiator Probe

INSTALLATION INSTRUCTIONS

PART # 18735
TOOLS NEEDED
12V Test Light
Wire Stripper
Crimping Tool
3/4" Wrench
This single stage electric fan thermostat will
control one electric fan with a MAXIMUM DRAW
OF 15 CONTINUOUS AMPS.
Down-flow Radiator
Push-in
Water
Radiator
Outlet
Probe
800.421.6288
IMPORTANT
Diagram #1
Radiator
Thermostat
Switch
Water
Inlet
Diagram #3
Water Jacket
www.derale.com
Foam Pad
Push-in
Probe
Retaining
Clip
Thermostat
3/8" NPT 3/8" NPT
Brass Probe Brass Probe
18735-InstructionSheet
