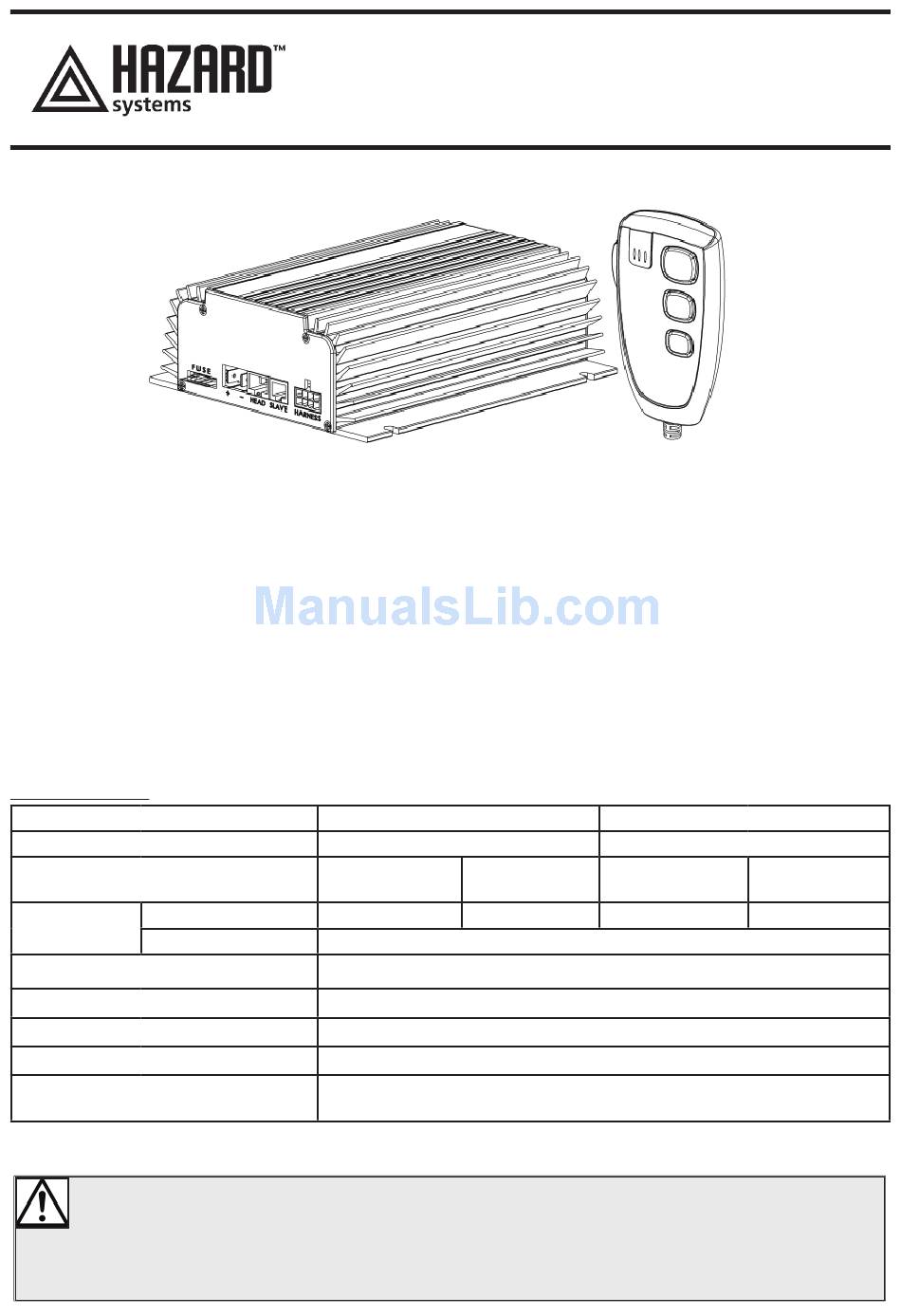

The Hazard Systems CS201 emergency vehicle siren is available in both 12-Volt and 24-
Volt versions and can provide up to 200-Watts of siren output power. Two amplifi ers can
be linked together for up to 400-Watts of output. A tough aluminium casing with specially
designed cooling fi ns maximises thermal performance.
The control head features a 'soft-touch' rubberised housing with an integrated PA microphone
and easy 3-button operation. Control head installation is simplifi ed by use of a swivel-
mounting cradle.
SPECIFICATIONS
Voltage
Input Voltage Range (VDC)
Output
¹ (nominal 33Vrms)
Max ¹
Current Draw
Standby (Typ.)
Amplifi er Dimensions (H x W x D mm)
Amplifi er Weight
Controller Dimensions (H x W x D mm)
Controller Weight
Ambient Operating
Temperature
¹ Using Hazard Systems 11 Ohm speaker(s) at 13.6Vdc or 27.2Vdc
`
WARNING!
Failure to install or use this product according to manufacturer's recommendations may result
in property damage, serious bodily/personal injury, and/or death to you and those you are
seeking to protect!
Installation and Operation Instructions
CS201 Electronic Siren
12V
10-15
1 Speaker
2 Speakers
(100W)
(200W)
9A
1 Speaker
(100W)
16A
5A
10mA
59 x 159 x 192
1700 g
115 x 55 x 25
220 g
-10 to +40 °C
24V
20-30
2 Speakers
(200W)
9A
