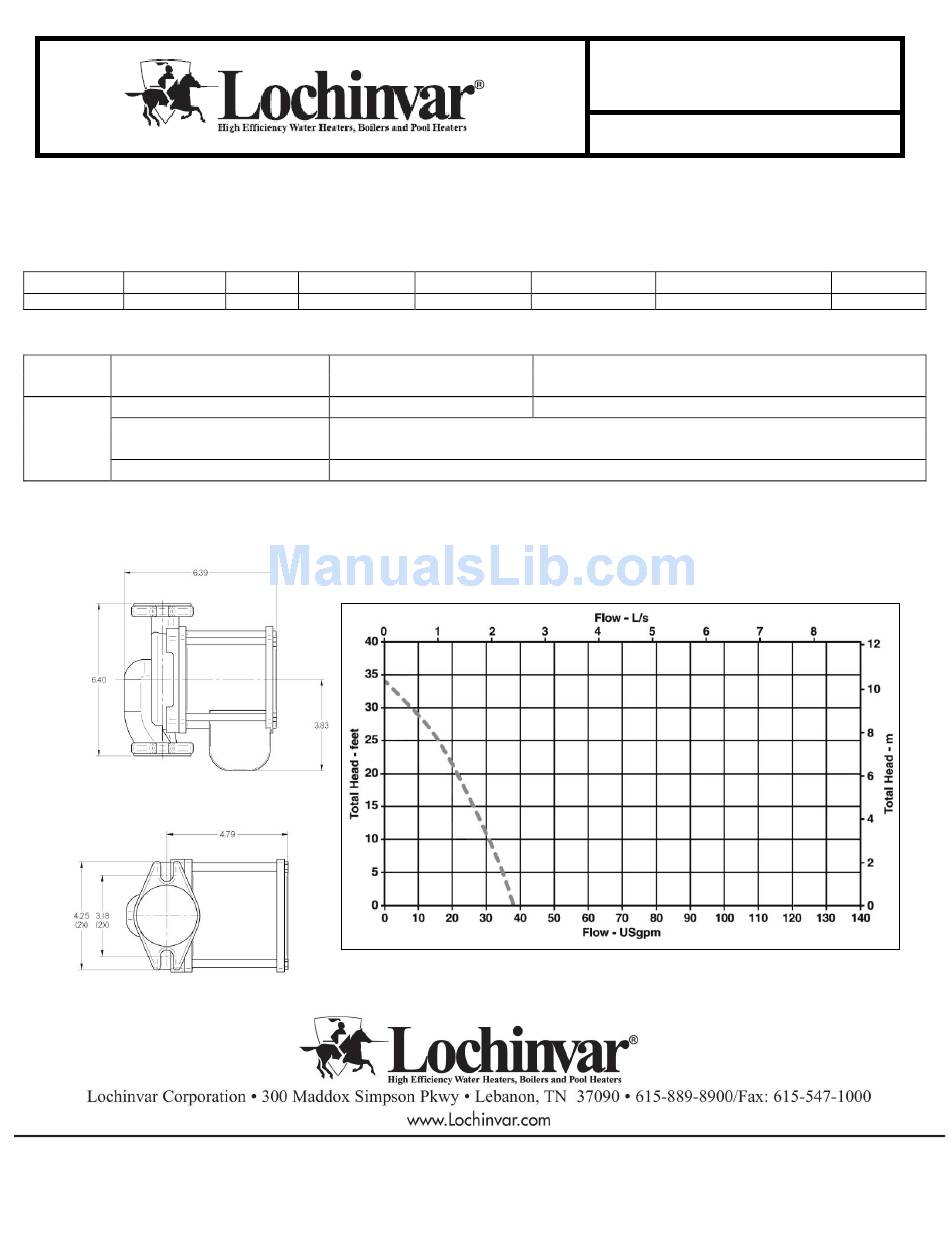

Pump Specifications
Part No.
HorsePower
PUM3010
1/6
Installation Specifications
Recommended for
Pump
Model Numbers
Armor Wtr Htr, AW(N,L) 151-200
PUM3010
Based on
Minimum Pipe Diameter
1-1/4"
IMPORTANT: Read the Armor 151-801 Installation and Operation Manual. If the planned system exceeds
the pump capacity in flow and/or head see "Pump Curves-All Pumps" for alternate pumps and pump curves.
PUMP RECOMMENDATION FOR
ARMOR 151-200 WATER HEATER
Flanges
Valute Material
1-1/4"
Bronze
Minimum GPM
16 GPM (151) & 21 GPM (200)
Based on
Connecting piping
Maximum 45 feet straight pipe with 4-Elbows, 2-Unions and 2-Ball Valves
Flange Material
Vendor
Bronze
Armstrong
Based on
Installation Type
Single Water Heater piped to Single Storage Tank
1
PUMP
Recommendation
PUMP-Rec-01 Rev C
Vendor Product Series
E Series
Orientation
Vertical
