Summary of Contents for TAG RLKM-12

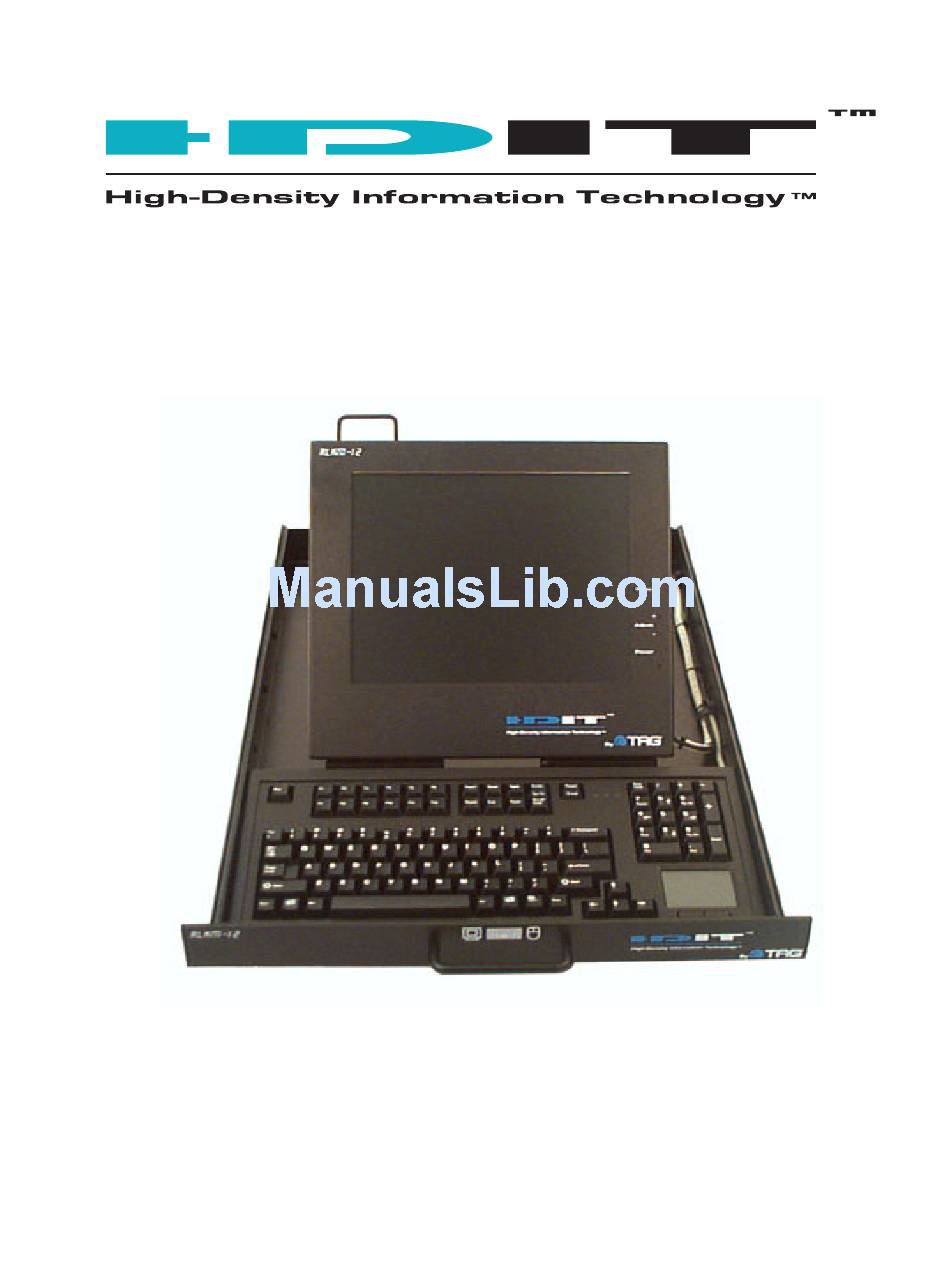

  • Page 1 RLKM-12...
  • Page 2 2U (31⁄2”) high. Rack-mounted servers produced by other manufactures normally take two-to-three times the space, but HDIT neatly fits it all in a 2U chassis, and TAG is the only company that brings it to you!
  • Page 3 Unpacking the RLKM-12 Before unpacking the RLKM-12 from its shipping container, prepare an area to place the RLKM-12 on that is clean and free of debris. Remove all of the protective wrap from the RLKM-12, including the LCD glass cover.
  • Page 4 Carefully slide the RLKM-12 onto the extended mounting rails, until the slide rail “clicks”. All of the cables have been secured to a Cable Keeper at the rear of the RLKM-12. Thread the cables through the back of the rack enclosure, before sliding the RLKM-12 into the rack enclosure.
  • Page 5 Keyboard The RLKM-12 is equipped with a 104 key, O/S independent, keyboard. A 17-key numeric keyboard is located above the touchpad, See Figure 4. Figure 4 Touchpad The O/S independent mouse, of the RLKM-12, is integrated into the keyboard in the form of a touchpad. The pointer on the screen is controlled by guiding your finger with the touchpad.
  • Page 6 The RLKM-12 is equipped with a 12.1” active matrix color LCD monitor capable of displaying most standards, from 640x480VGA to 1024x768 XGA @ 60Hz . The controls on the front panel allow the user to easily adjust the display parameters by slipping an adjusting tool into the front panel slots.
  • Page 7 22355 TAG WAY Dulles, VA 20166-9310 (703) 406-3000 tag.com...
