lilitab Surface Pro Assembly Instruction Manual
Hide thumbs
Also See for Surface Pro:
- Assembly instructions manual (6 pages) ,
- Assembly instructions manual (7 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for lilitab Surface Pro
Summary of Contents for lilitab Surface Pro
- Page 1 Surface Pro Packing List and Assembly Instructions v.1.0...
- Page 2 Surface Pro Assembly Preparation ....3 lilitab Surface Pro Features....... 4 lilitab Surface Pro Mount Options .
-
Page 3: Assembly Preparation
To aSSemble your liliTab you will need: PACKING LIST Philips screwdriver. To mounT your liliTab To a Surface you will need: Powered drill/driver, preferably with impact action 4 x bolts or wood screws (m5, no.10, no.11, 3/16” or 13/64 diameter) - Page 4 The head unit can be set to any fixed angle between completely vertical and +/-22.5. ° Tilt. Can be configured to allow the user to tilt the head unit. lilitab Surface Pro Packing List and Assembly Instructions v1.0...
-
Page 5: Mount Options

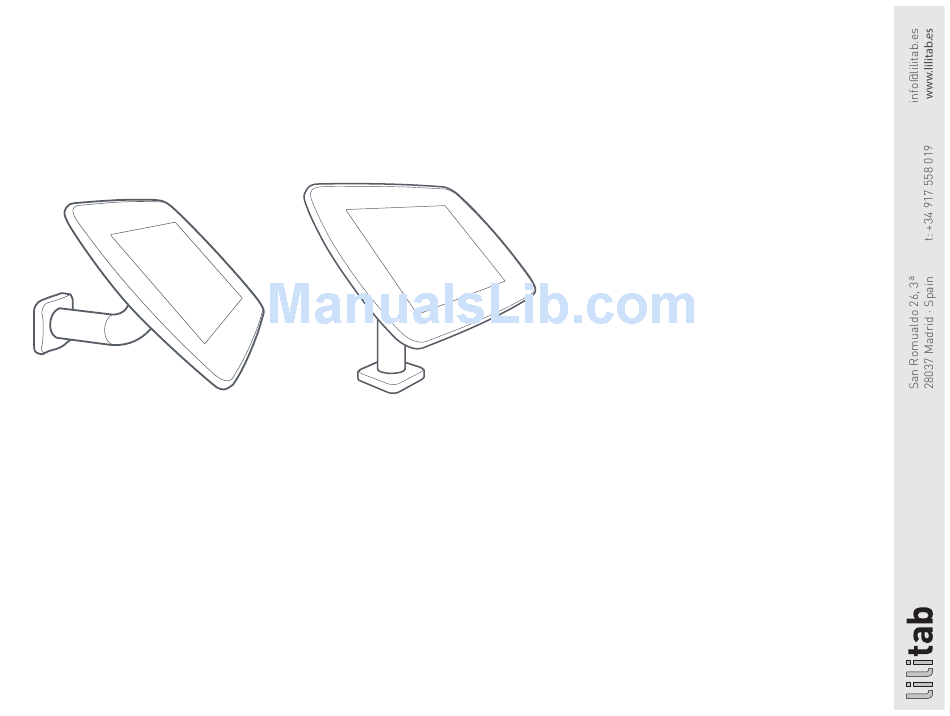

MOUNT OPTIONS COUNTER TOP WITH OPTIONAL BASE PLATE BOLT DIRECTLY TO HORIZONTAL SURFACE BOLT DIRECTLY TO VERTICAL SURFACE lilitab Surface Pro Packing List and Assembly Instructions v1.0... -
Page 6: Mounting Pattern
MOUNTING PATTERN 1.63 41.44 1.50 SLOT FOR POWER CABLE: 38.10 USB TYPE A, ~12" PIGTAIL 4X M6 OR 1.50 1/4-20 38.10 lilitab Surface Pro Packing List and Assembly Instructions v1.0... - Page 7 If you wish to disable tilt, position your head unit at the desired angle and towards you). tighten the bottom screw on the neck joint with the included L key. lilitab Surface Pro Packing List and Assembly Instructions v1.0...
- Page 8 Not locking the MagDock WILL result in the unit falling off, possibly damaging the unit and/or the tablet. The lilitab Pro range is designed to be operated with the lock closed! lilitab Surface Pro Packing List and Assembly Instructions v1.0...
- Page 9 USING YOUR MAGKEY You can use the included MagKey with an iPad 2,3 or 4 in your lilitab. The MagKey allows you to sleep the iPad without having any access to it. This ensures you (and your staff!) can turn your kiosk on and off at the end of the day without removing the iPad from the kiosk.
- Page 10 Cleaning and caring for your lilitab. To keep your lilitab looking and working great we recommend using a lint-free cloth to gently wipe it down. To remove and prevent fingerprints we recommend Brillianize. DO NOT use window cleaner, ammonia-based cleaners or any type of scouring or abrasive cleaner.
