Net2Phone Pro User Manual

Router-activated internet phone device
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PRO
The Net2Phone
Pro
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Net2Phone Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Net2Phone Net2Phone Pro

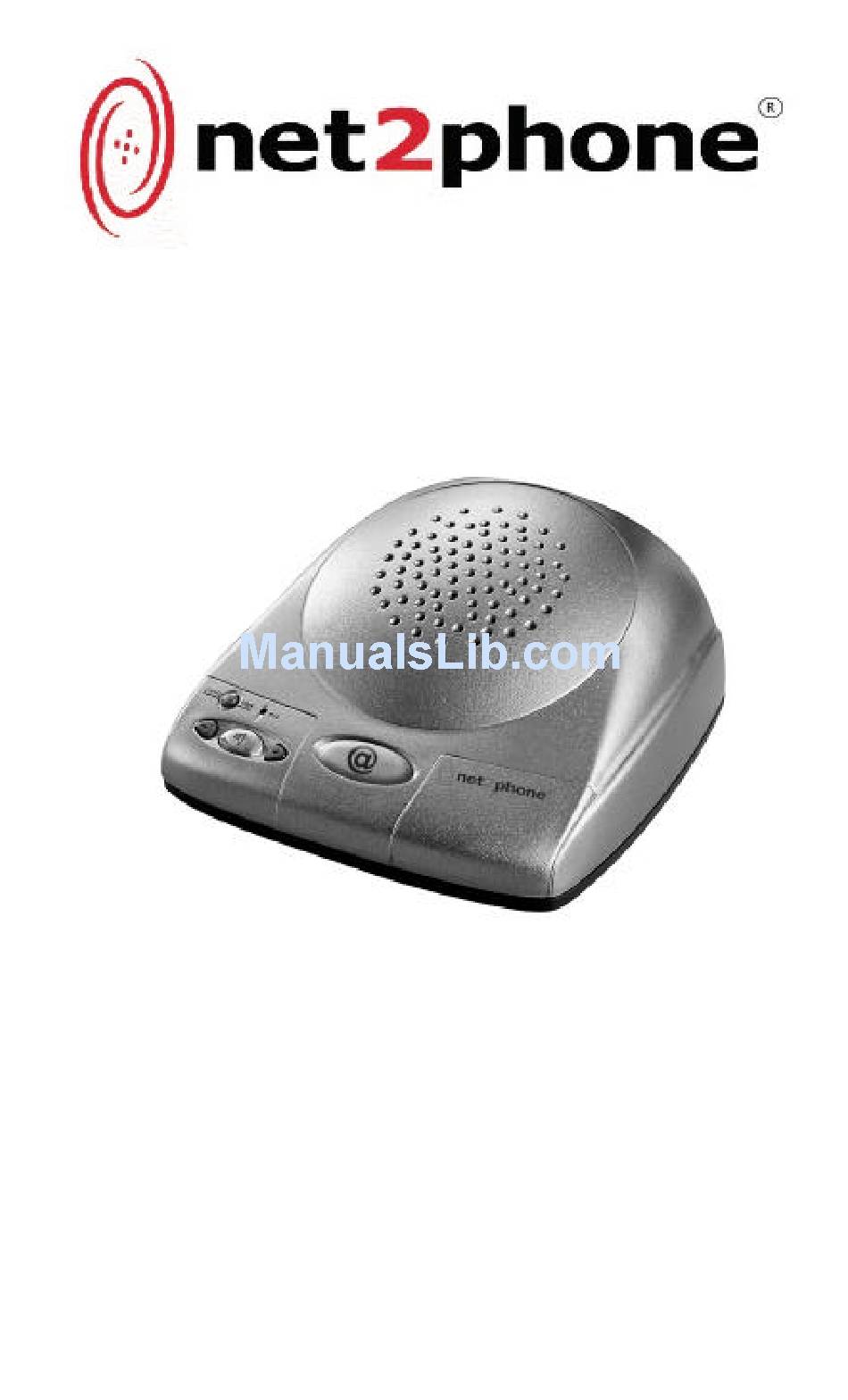

  • Page 1 The Net2Phone User’s Guide...
  • Page 2 Trademark Acknowledgments Windows95 and Windows98 are trademarks of Microsoft Corporation. Net2Phone Pro, N2P and Net2Phone are trademarks of Net2Phone, Inc. Linksys, NetSwitcher and other product or brand names are trademarks or registered trademarks of their respective companies. © 2001 by Net2Phone, Inc.

  • Page 3: Table Of Contents

    UMBER AND ..........10 HANGE ONFIGURATION HONE RO TO WORK WITH A ONFIGURING YOUR TATIC ....................11 DDRESS 5 USING THE NET2PHONE PRO ............13 ........... 13 AKING AN NTERNET HONE HONE RO UNIT ..13 ECEIVING A ALL FROM ANOTHER ..........

  • Page 5: Welcome

    Congratulations on your purchase of the Net2Phone Pro Router-Activated Internet Phone, powered by Product Description The Net2Phone Pro is an Internet telephone device that is a supplement to your ordinary telephone. It works like a miniature gateway-server PC to convert voice signals from your ordinary telephone to VoIP (Voice Over Internet Protocol).

  • Page 6: System Requirements

    Net2Phone Pro Ring Set up the Net2Phone Pro to ring on incoming calls. International Language Support Configure the Net2Phone Pro to work in12 languages. Remote Software Upgrade Upgrade the Net2Phone Pro’s software to the latest version remotely. Speakerphone Hands -free talking.

  • Page 7: Getting Started

    DHCP (Dynamic Host Configuration Protocol) server, it will automatically assign an IP address to the Net2Phone Pro. If your Net2Phone Pro is hooked into a LAN with a static IP, you will have to assign it an IP address before you can configure the system to work with the device.

  • Page 8: Static Ip Addresses

    Net2Phone Pro. A Practical Solution for non office use: If you use the Net2Phone Pro in a home PC setting (not on a network) without a DHCP server, the simplest and most practical approach to obtaining the multiple IP addresses you need while interfacing with varying ISP protocols is to employ a DSL/cable router.

  • Page 9: Basic Setup

    First, unpack your Net2Phone Pro product package and verify its contents against the list in “Contents of Your Net2Phone Pro Kit” on Page 2. If any items are missing, please contact Net2Phone Pro Technical Support (see Appendix B, Technical Support).
  • Page 10 2. Connect the Net2Phone Pro to your Ethernet LAN port. Plug one end o f the RJ-45 Ethernet cable into the OUT port on the back of the Net2Phone Pro box, and the other end into an Ethernet port on your LAN. Net2Phone...
  • Page 11 After approximately one minute, the config–FREE button should be illuminated steadily without blinking. 6. If you’re connecting your Net2Phone Pro to a home based PC with a router If you’re not on a LAN and you have a router, your...
  • Page 12 Page 8...

  • Page 13: Configuring The Net2Phone Pro

    Configuring the Net2Phone Pro Obtaining your DHCP IP address Once your Net2Phone Pro has been setup, you must now obtain your IP address from the unit and enter that IP address in your Web browser to configure it. All you need to do before you can make a call is to enter the Account Number and PIN you received from your Net2Phone Pro reseller at the time of purchase.

  • Page 14: The Change Configuration Page

    Internet, simply press config-FREE twice, then 999#. The system will then determine which version of the firmware you have on the Net2Phone Pro, and if necessary, download the newest version. This is discussed in more detail on page 13.

  • Page 15: Static Ip Address

    • And DNS addresses To begin to setting up your Net2Phone Pro for use with a static IP address, you must first make sure that DHCP is set to “off.” To do so, press the config-FREE button twice, and enter the code 1#0#.
  • Page 16 Once the Subnet mask has been set, you can now connect to the Net2Phone Pro via a web browser. Simply access your web browser and enter in the static IP address. The Net2Phone Pro...

  • Page 17: Using The Net2Phone Pro

    Receiving a Call from another Net2Phone Pro unit You can call or receive a call from another Net2Phone Pro box simply by pressing *72 on the keypad, and then entering the virtual number (the Net2Phone account number) of the Net2Phone Pro you will be calling.

  • Page 18: Using The Remote Software Upgrade Feature

    User’s Guide - Chapter 5, Using the Using the Remote Software Upgrade Feature After your Net2Phone Pro is configured, you can instruct it to upgrade its software to the latest release, giving you access to any new features that might be available. To begin the upgrade...

  • Page 19: Appendices

    Appendix A – Troubleshooting Setup problems • The phone cord does not fit into my wall-jack. You received a Net2Phone Pro that was intended for use in another country. Some countries, like UK, France, Switzerland and Germany, require specific cords. Obtain the appropriate adapter from your Net2Phone Pro reseller or from a local phone equipment vendor.

  • Page 20: Calling Problems

    Pro doesn’t work with a pulse-dial telephone. Calling problems • My Net2Phone Pro is connected to my DSL or cable service and working properly with a static IP address. But when I connect my PC to the Ethernet OUT port on the back of my Net2Phone Pro, the PC doesn’t see the...
  • Page 21 You can obtain this information from your DSL or cable provider, or if you have a PC connected to your DSL/cable modem and your service is functional, you can follow the steps in Get the Net2Phone Pro’s IP address on Page 9. Page 17...

  • Page 22: Appendixb - Tech Support

    Appendix B – Tech Support For all tech support issues, current FAQ’s, and Net2Phone product info please visit our Website at: www.Net2Phone.com Page 18...

  • Page 23: Appendixc - Firewalls

    6801: doorman port for n2p protocol These are the default port settings on the Net2Phone Pro . If they are not all open, and the provider can’t open them, ask for their list of ports that currently are open and set those values on the Net2Phone Pro ’s C hange Configuration page (Page 108).

  • Page 24: Appendixd - Configuring The Net 2P Hone Pro From Aphone Keypad

    Note: The Net2Phone Pro is shipped with DHCP addressing activated by default. If you need to enter static IP addresses in the Net2Phone Pro and are not able to browse its Configuration Page, you must deactivate DHCP addressing and enter the static addresses from a telephone keypad.
  • Page 25 6. On the Change Configuration page, enter your DNS and gateway addresses, and your account number and PIN. 7. Click OK and reboot the Net2Phone Pro . Your Net2Phone Pro should now be ready for use with a static IP address.
  • Page 26 Appendix D – Configuring with a phone keypad Configuring other parameters from the telephone keypad To configure your Net2Phone Pro with the telephone keypad Enter the Configuration Mode Pick up the handset and press the config-FREE button twice, or press and hold the @ button for more than 2 seconds. The Configuration Mode voice prompt will respond, “Enter...
  • Page 27 . DNS address 0.0.0.0 Internet address of your domain name server Country code Country where your Net2Phone Pro is used. Configuration Required when password configuring with web browser. Must be entered with phone keypad. Ring-on-call Makes your...
  • Page 28 Appendix D – Configuring with a phone keypad Description of parameters 1. DHCP (Phone keypad configuration: dial 1 # ) The Net2Phone Pro is self-configuring when using DHCP service, if DHCP is enabled. Value 1 (default): DHCP enabled Value 0: DHCP disabled 2.
  • Page 29 Entering or changing passwords manually A configuration password can consist of any group of alpha- numeric characters (numbers and/or letters). Net2Phone Pro ‘s default password is (lower case) n2p. If you changed it from the configuration screen and have lost the new password, you can enter a new one, in an emergency, using a telephone keypad.
  • Page 30 Appendix D – Configuring with a phone keypad Example: to enter the password “N2P”, dial * 5 3 0 2 5 5 # When you are ready to change your Configuration Password, use the chart below to find the codes corresponding to the characters in the password you plan to use.

  • Page 31: Appendixe - Technical Specifications

    Appendix E – Technical specifications General AC adapter: AC 90-264 V; DC 12V, 800 mA Power consumption: typically 6W, max. 9W Environment temperature: 0 - 50 o C Internal EPROM Flash: 2 Mo Internal DRAM: 4 Mo Built-in speaker and microphone Protocols Vocal compression: B.723.1, G711 Address searching: IP-Finder™...

  • Page 32: Appendixf - Approvals

    Net2Phone Pro complies with EN 55022 for electromagnetic compatibility, and EN 50082/1. Net2Phone Pro complies with EN 41003. It can be connected to the public telephone network. Important! Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
