Red Panda RASTER Instruction Manual

RASTER
Thank you for purchasing the Red Panda Raster. The Raster is a digital delay with a pitch shifter integrated into the feed-
back loop. Knob responses are carefully tuned for exploration of self-oscillation and feedback on the verge of blowing
up, but it also works great for clean delays up to 750 ms.

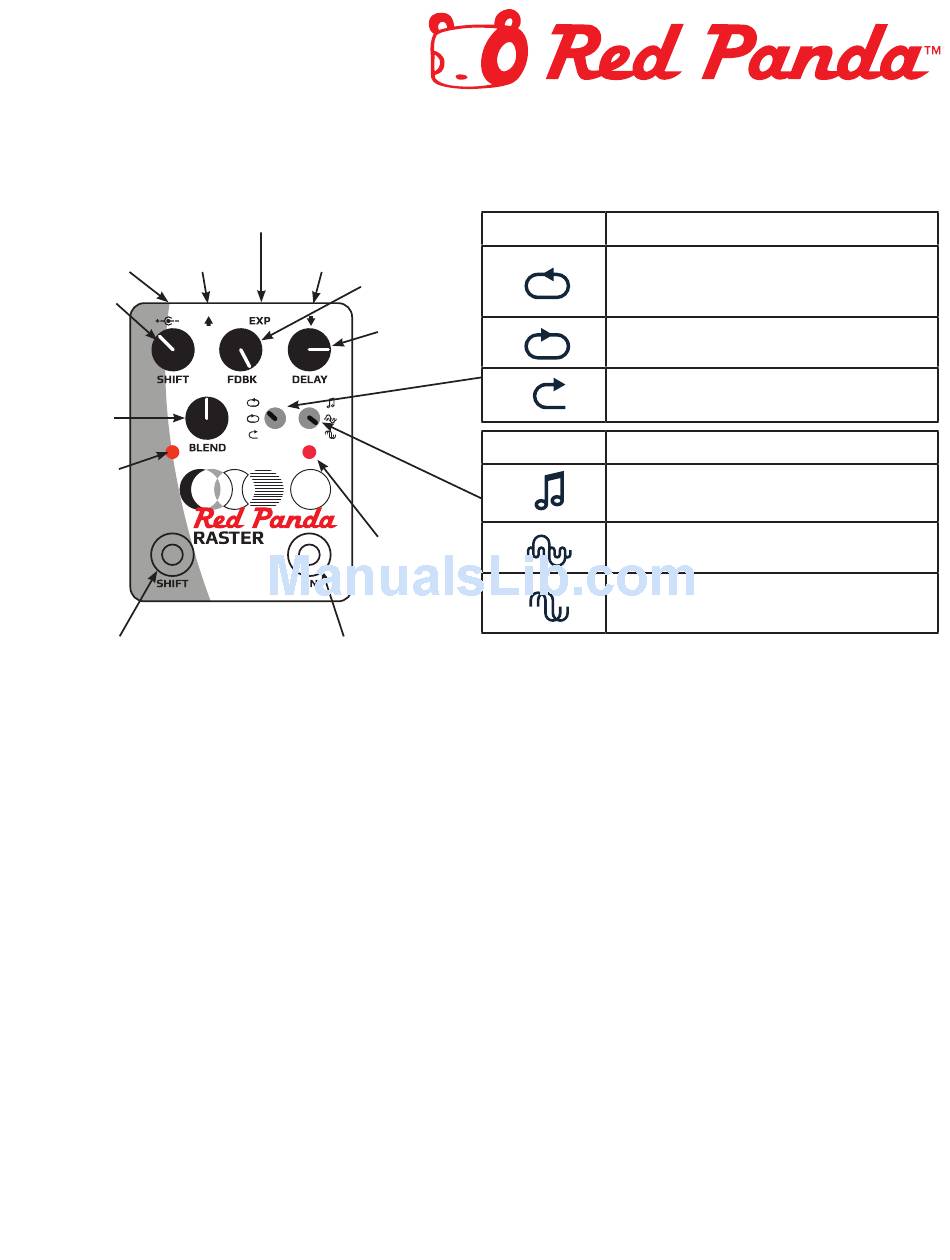

The pitch shifter operates in three modes, with three types of feedback, for a total of 8 different combinations:
9V DC Output
Shift amount
(center off)
Wet/dry blend
Shift indicator
Shift on/off

SHIFT

Amount of pitch or phase shift. When the SHIFT footswitch is disengaged (orange LED off), the signal is not shifted.
Plugging in an expression pedal will override the shift knob.

FDBK

Feedback intensity. Infinite repeats occur with the knob at approximately 3:00. At settings above 3:00, the repeats gain
in strength for self-oscillation, distorted echoes, and feedback loops.

DELAY

Delay time, from approximately 20 to 750 milliseconds. Short delays with high feedback will create resonance or self-os-
cillation, especially when the shift knob is near zero. The delay knob is tuned for short delays. By carefully adjusting the
delay time and feedback, you can create chaotic self-oscillating drones.

BLEND

Adjusts output from 100% dry to 100% wet.

POWER

Red Panda pedals require a 9V DC center negative, regulated power supply (Boss style). A few examples are the Boss
PSA-120S, Visual Sound One Spot, and the Voodoo Lab Pedal Power series. Using an incorrect power supply may dam-
age your pedal.
WARRANTY
This product is warranted against defects in materials or workmanship for one (1) year from date of original purchase. It
does not cover damages or wear resulting from accident, misuse, abuse, or unauthorized adjustment and/or repair.
Should this product require service (or replacement at our option) while under warranty, please contact
info@redpandalab.com.
Shift pedal/CV
Input
Feedback
(100% at 3:00)
True bypass
Feedback
Delay time
20-750 ms
Shift
Bypass
indicator
Description
Initial delay and all repeats are reversed.
Each repeat is shifted higher or lower
than the previous.
Each repeat is shifted higher or lower
than the previous.
The first repeat is shifted. Subsequent
repeats stay at the same pitch
Description
Transpose by semitones, +/- 12 semitone
range (25 steps).
Detune from a 4th down to a minor third
up (continuous).
Phase shifter (not available with reverse
feedback).
.
